CC622-622FS14C
 |
  |
| Click to enlarge image(s) |

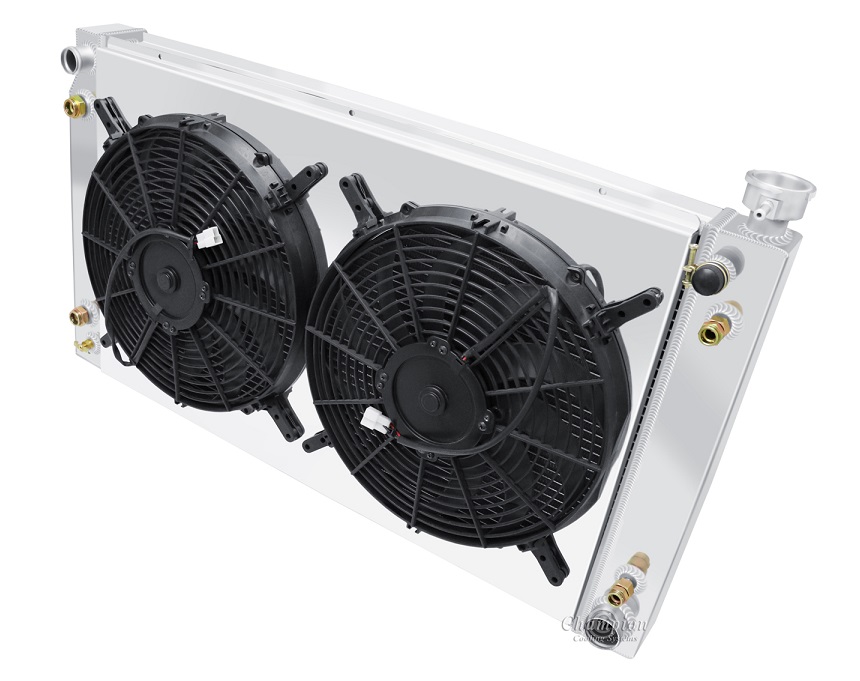

Champion All Aluminum Radiator
Aluminum Shroud and Two 14" Pro Series Fans
3-Row Core | Cools up to 800hp
If you need the 34" wide core refer both our CC1520 (17" tall Core)
and the CC1696 (19" tall core) Both are for 454ci engines
They are extreamly close, there is a larger spread on the engine and
tranny cooler bungs and the CC1520 fill neck is slightly different.
Radiator Dimensions:
Total: 20.25" tall (with fill neck) x 33.88" wide
Core: 17.13" tall x 28.25" wide x 2" thick
Inlet: 1.31" driver side
Outlet: 1.56" passenger side
Tanks: 2.75" thick
Tubes: 0.63" thick
Saddle Mounted
13 lb. Radiator Cap included
Transmission Cooler included
(1/2"- 20 straight thread w/ 5/8"-18 adapter)
Engine oil Cooler included
(M20 x 1.5 w/ quick disconnect adapter)
| Compatible with: | |
| C/K Series Pickup 1988 - 1994 (5.7L/350ci V8; 5.0L/305ci V8) | |
| C/K Series Pickup 1995 (5.0L/305ci V8) | |
| Chevy Suburban 1992-1993 (5.7L/350ci V8) |
