CC5100B-LS-5100FS16

CC5100B-LS-5100FS16

CC5100B-LS-5100FS16
Click to enlarge image(s)

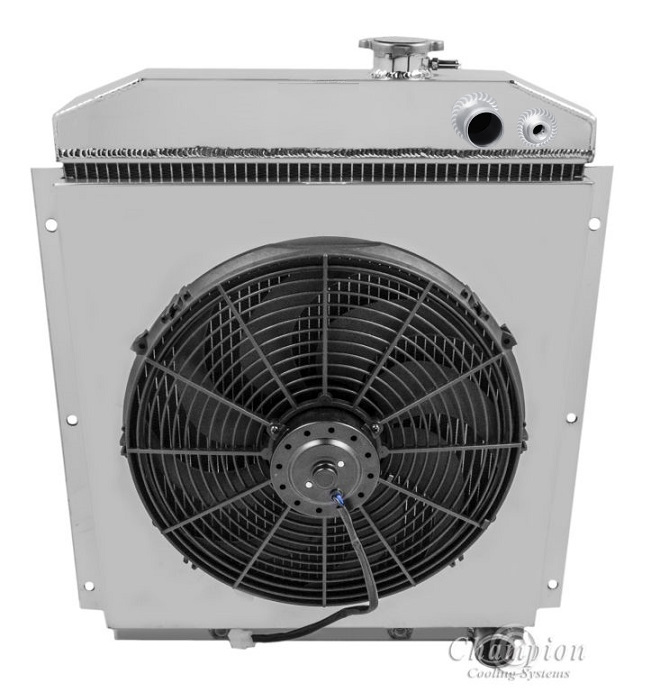

Champion All Aluminum Radiator
Plus Ledfoot Racing Aluminum Shroud & 16" fan
Photos of radiator alone are correct
Verify clearance for electric fan (3.5" thick)
Total thickness: 6.75" to fan motor

3-Row Core | 700hp Rating

Radiator Dimensions:
Total:
25.5" tall (26.5" with cap) x 22.75" wide (including brackets)
Core: 20.75" tall x 19.5" wide x 2.5" thick
Inlet 1.25" passenger side
Outlet: 1.5" passenger side
Tanks: 2.75" thick
Tubes: 0.75" thick

Bracket Mounted

Steam Port and fittings are included
13 lb. radiator cap included
Transmission Cooler included (1/2"- 20 straight thread)
