Cadillac Radiator (59-60) With A/C
CC59CAD-AC

CC59CAD-AC

CC59CAD-AC
Click to enlarge image(s)

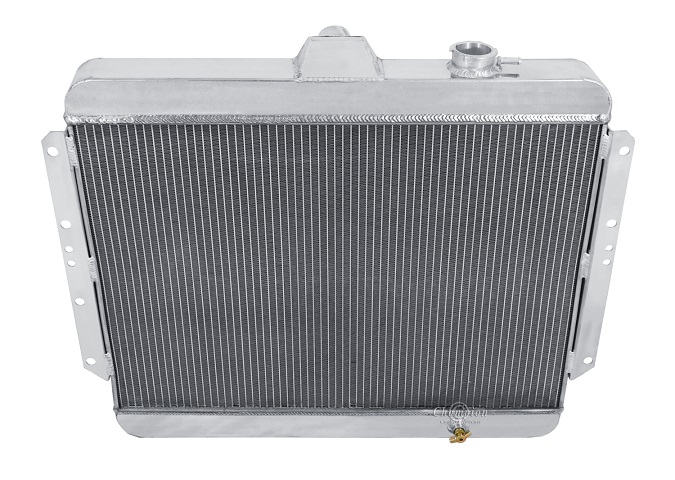

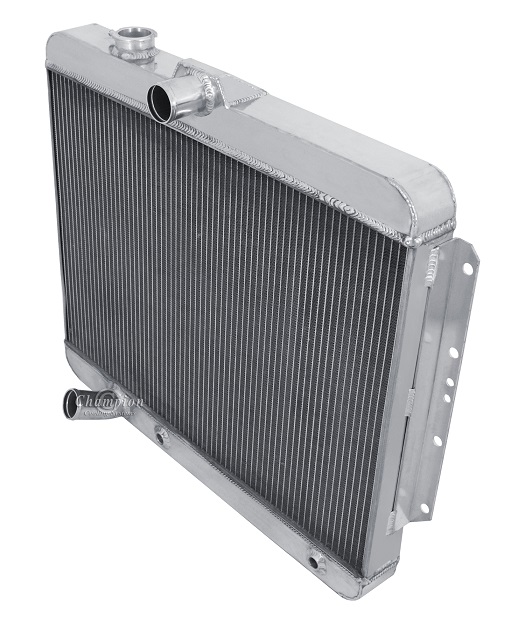

Champion All Aluminum Radiator
3-Row Core | Cools up to 600hp
Note: For AC Cars, See CC59CAD for Non-AC Cars
Brackets are on engine side of radiator with straight outlet

Proper Photos to Arrive Soon

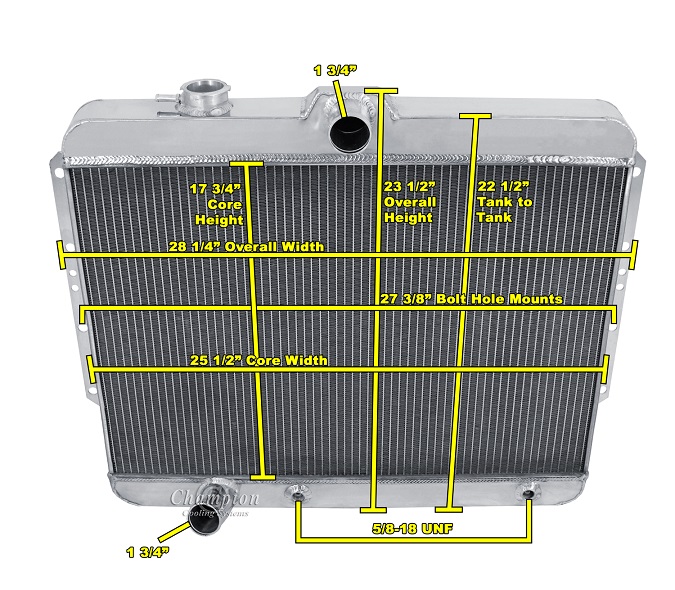

Radiator Dimensions:
Total: 22.5" tall (23.5" with cap) x 28.25" wide
Core: 17.75" tall x 25.5" wide x 2.25" thick
Inlet: 1.75" center
Outlet: 1.75" driver side (straight)
Tanks: 2.5" thick
Tubes: 0.63" thick

Bracket Mounted (Engine side of radiator)

13 lb. Radiator Cap included
Transmission Cooler included (5/8-18 UNF)

When using electric fans:
One 16" fan or two 12" Electric fans recommended for this core size (sold separately)



Compatible With
Cadillac 1959-1960 with A/C
