Jeep Wrangler (87-06) Radiators and Shrouds
Scroll down for additional options including V8 Conversion Radiators
AE2101

AE2101

AE2101
Click to enlarge image(s)

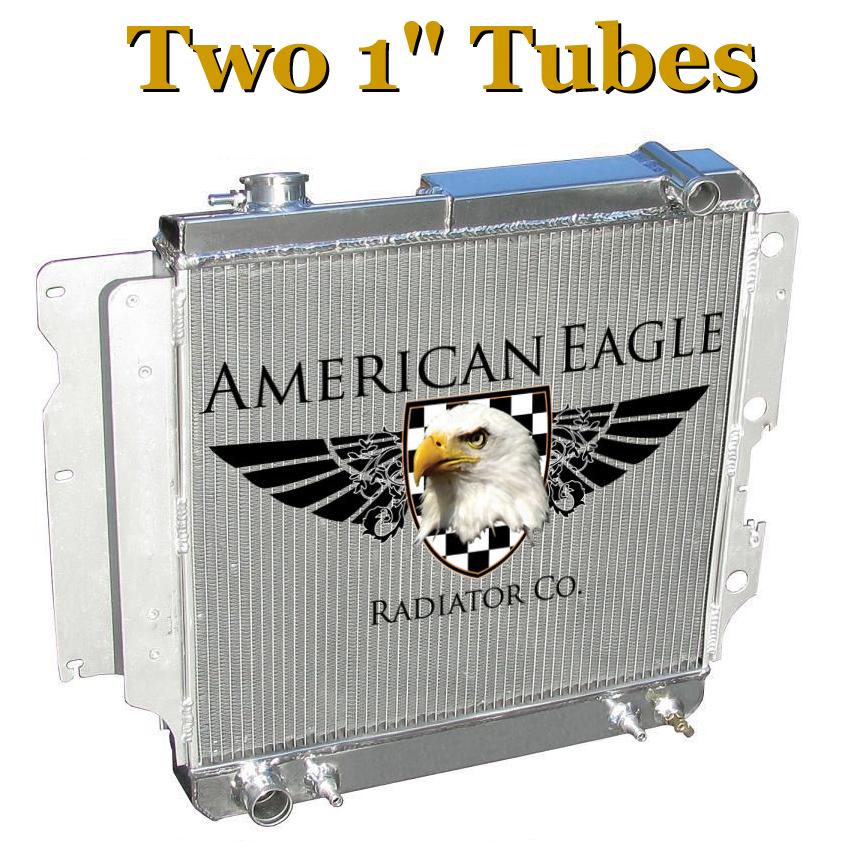

American Eagle All Aluminum Radiator
2-Row Core | Cools up to 550hp

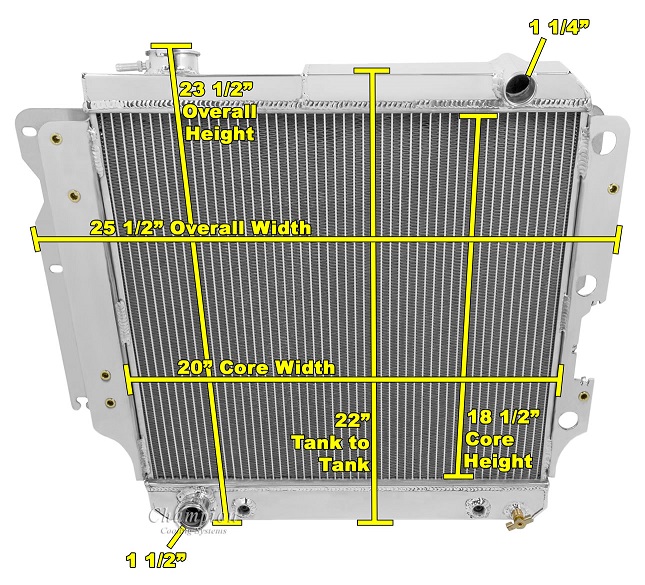

Radiator Dimensions:
Total: 23.5" tall x 25.5" wide (with brackets)
Core: 18.5" tall x 20" wide x 2.25" thick
Inlet: 1.25" passenger side
Outlet: 1.5" driver side
Tanks: 2.5" thick
Tubes: 1" thick

Bracket Mounted
Rivit Nuts in shroud bracket: size M6

16 lb. Radiator Cap included
Transmission Cooler included (5/8-18 Straight Thread, Inverted Flare)
Oil cooler not compatible with quick disconnects. Includes barbed oil cooler fittings.

Recommended Electric Cooling Fans (sold separately):
One 16" Electric Cooling Fan is recommended for this core size


Compatible With
Jeep Wrangler YJ 1987-2006 (2.4L/2.5L V4, 4.0/4.2 V6)
AE2101-2101FS16SP

AE2101-2101FS16SP

AE2101-2101FS16SP
Click to enlarge image(s)

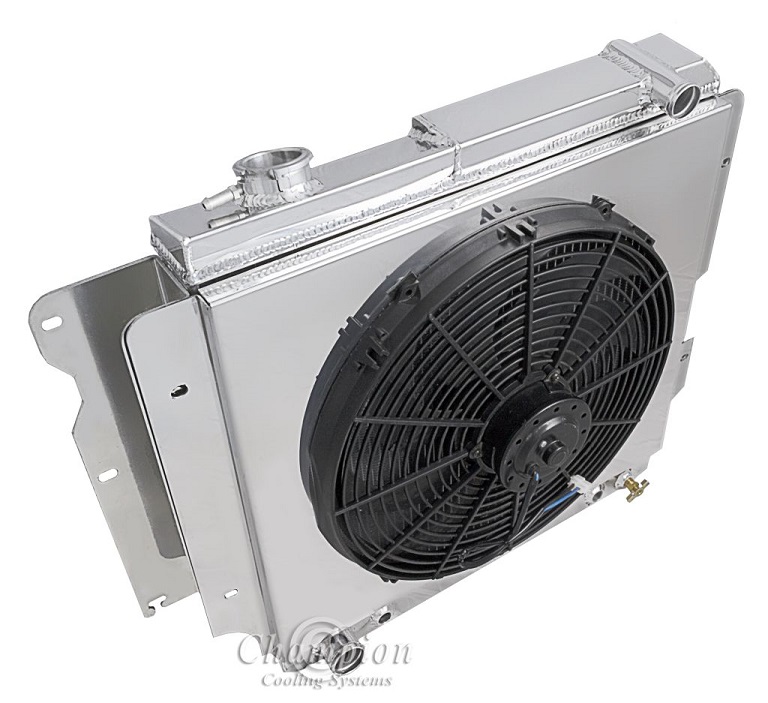

American Eagle All Aluminum Radiator Plus
Ledfoot Racing Shroud and 16" SPAL Medium Profile Fan

The SPAL fan solves the thickness issues of the Pro Series fan
Please confirm your available room to the Total Thickness below

2-Row Core: 1" Thick Tubes | Cools up to 550hp
($20 Combo Discount)

Radiator Dimensions:
Total: 23.5" tall x 25.5" wide (including brackets)
Core: 18.5" tall x 20" wide x 2.25" thick
Inlet: 1.25" passenger side
Outlet: 1.5" driver side
Tanks: 2.5" thick
Tubes: 1" thick
Total Thickness: 5.5" to back of fan

Bracket Mounted
Rivit Nuts in shroud bracket: size M6

Polished Champion 16 lb Radiator Cap included (Pictured Above)
Transmission Cooler included (M16-1.5)



Compatible With
Jeep Wrangler YJ 1987-2006 (2.4L/2.5L V4, 4.0/4.2 V6)
AE8101

AE8101

AE8101
Click to enlarge image(s)

American Eagle Aluminum Radiator
2-Row Core: 1" thick tubes | Cools up to 550hp
For Chevy and Mopar V8 Conversions

Radiator Dimensions:
Total: 23.38" tall x 25.75" wide  (with brackets)
Core: 18.5" tall x 20" wide x 2.25" thick
Inlet: 1.5" Driver /
Outlet: 1.75" Passenger
Tanks: 2.5" Thick
Tubes: 1" thick

Bracket Mounted
Rivit Nuts in shroud bracket: size M6

Transmission Cooler Included (1/2"-20 straight thread, inverted flare)
Radiator Cap Included

When using electric fans:
One 16" Electric fan recommended for this core size (sold separately)
Aluminum Shroud is also Available - Recommended for any Off Road vehicle (sold separately)



Compatible With
Jeep Wrangler YJ 1987-2004 (Chevy LS V8 Swap)
AE8101-8101FS16

AE8101-8101FS16

AE8101-8101FS16
Click to enlarge image(s)

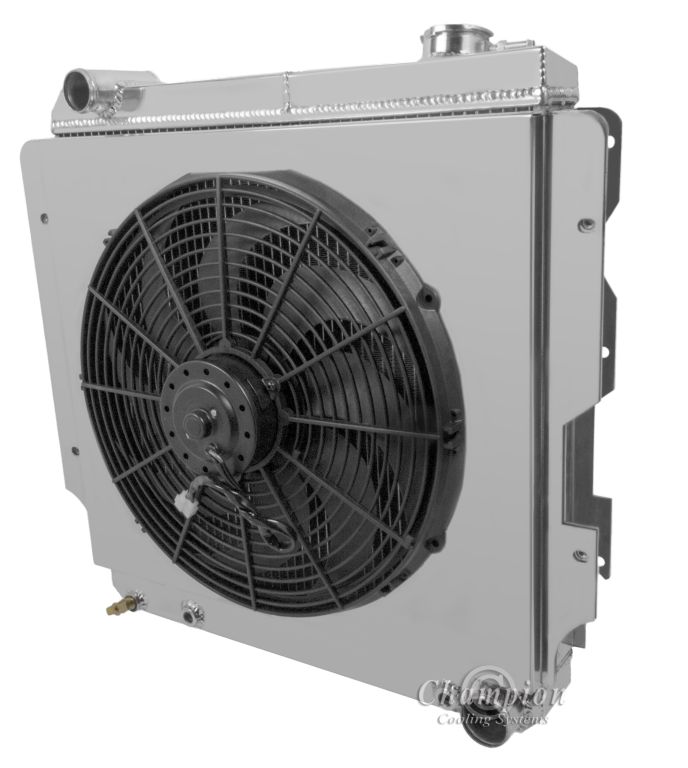

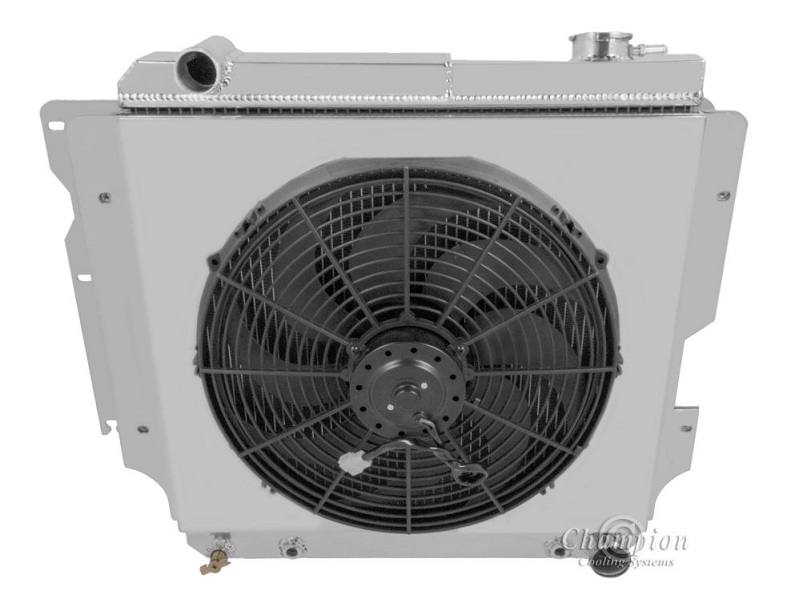

American Eagle Aluminum Radiator
Plus Ledfoot Racing Shroud and 16" Fan
Verify clearance for electric fan
Total thickness: 6.25" to fan motor
2-Row Core: 1" thick tubes | Cools 550hp
For Chevy and Mopar V8 Conversions
($20 Discount)

Total: 23.38" Tall x 25.75" wide (including brackets)
Core: 18.5” Tall x 20” Wide x 2.25" Thick
Inlet: 1.5” Driver / Outlet: 1.75” Passenger
Tanks: 2.5" Thick
Tubes: 1" thick

Bracket Mounted
Rivit Nuts in shroud bracket: size M6

Transmission Cooler Included (1/2"-20 straight thread, inverted flare)
Polished Champion 16 lb Radiator Cap included (Pictured Above)



This part applies to the following cars:
Compatible With
Jeep Wrangler YJ 1987-2004 (Chevy V8 LS swap)
