CC561B

CC561B

CC561B
Click to enlarge image(s)

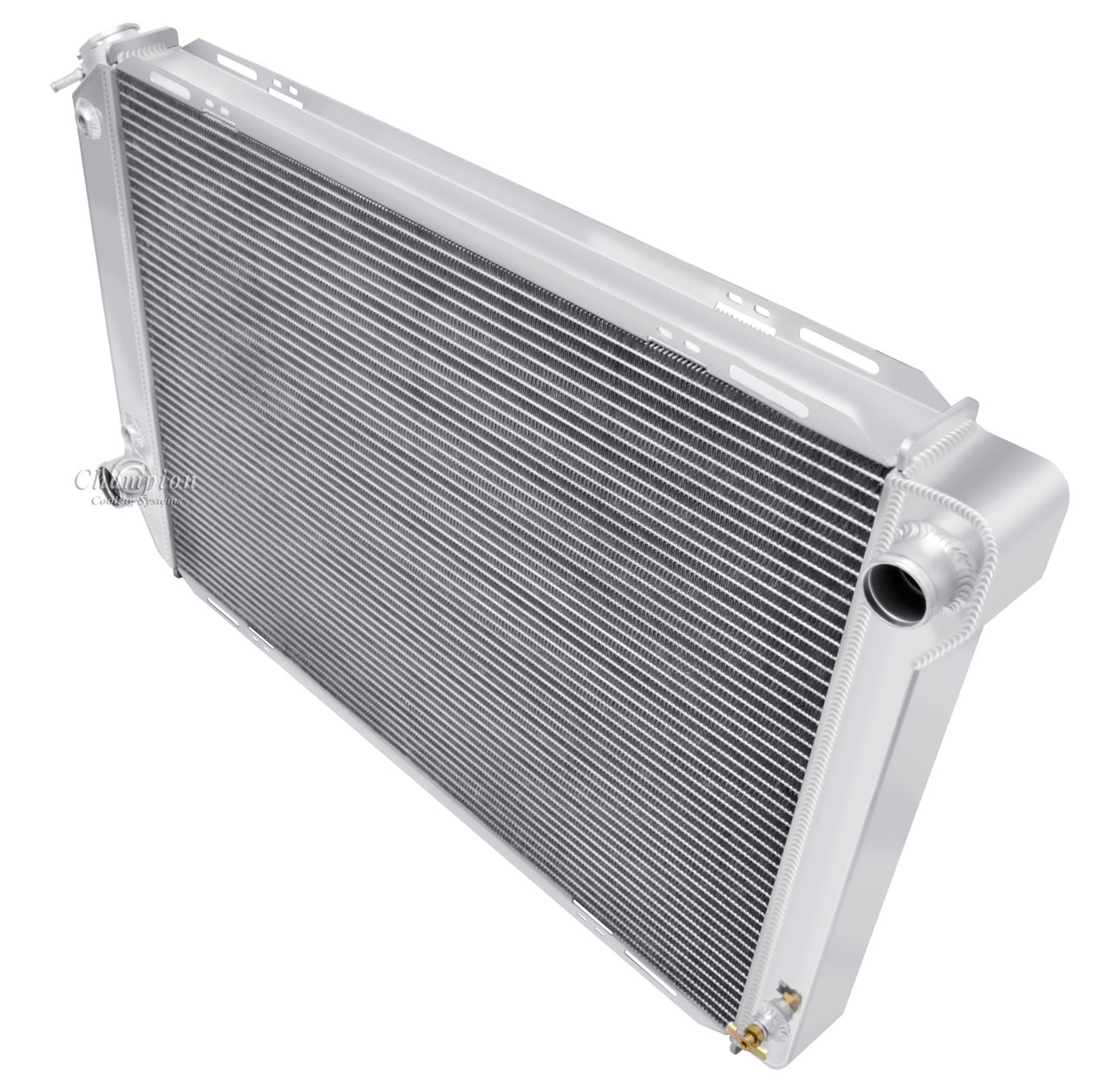

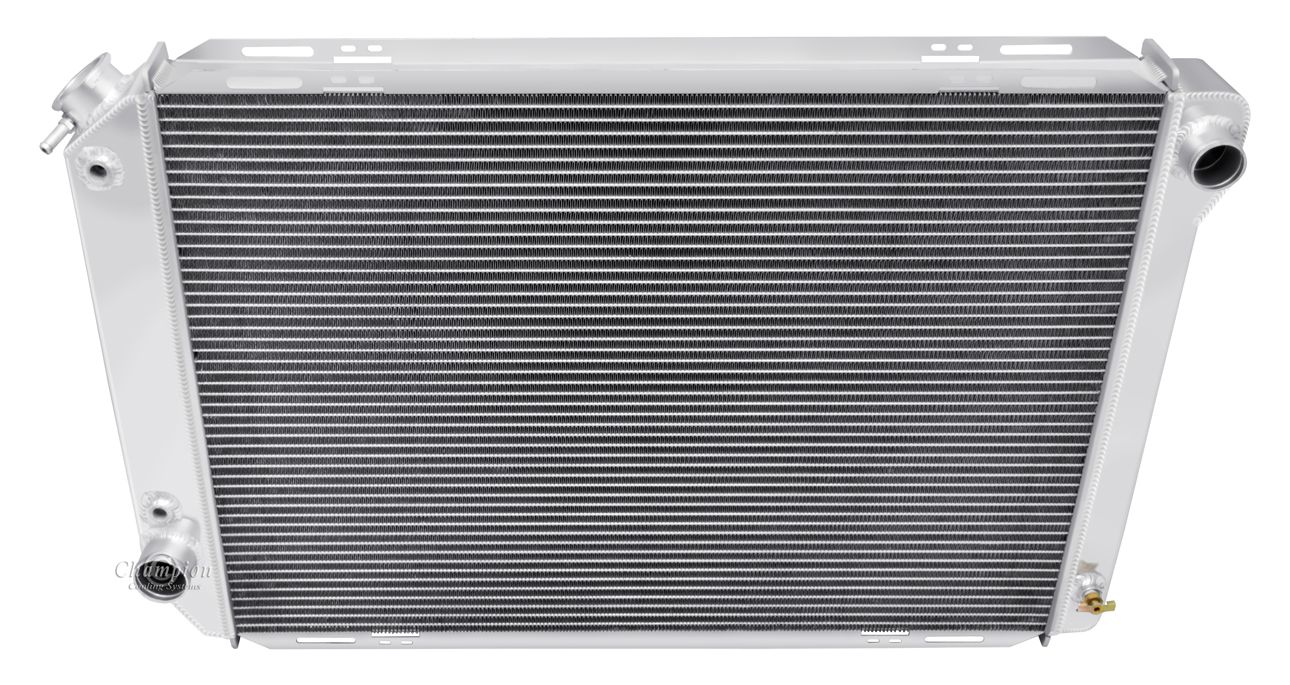

Champion All Aluminum Radiator
3-Row Core | Cools up to 700hp

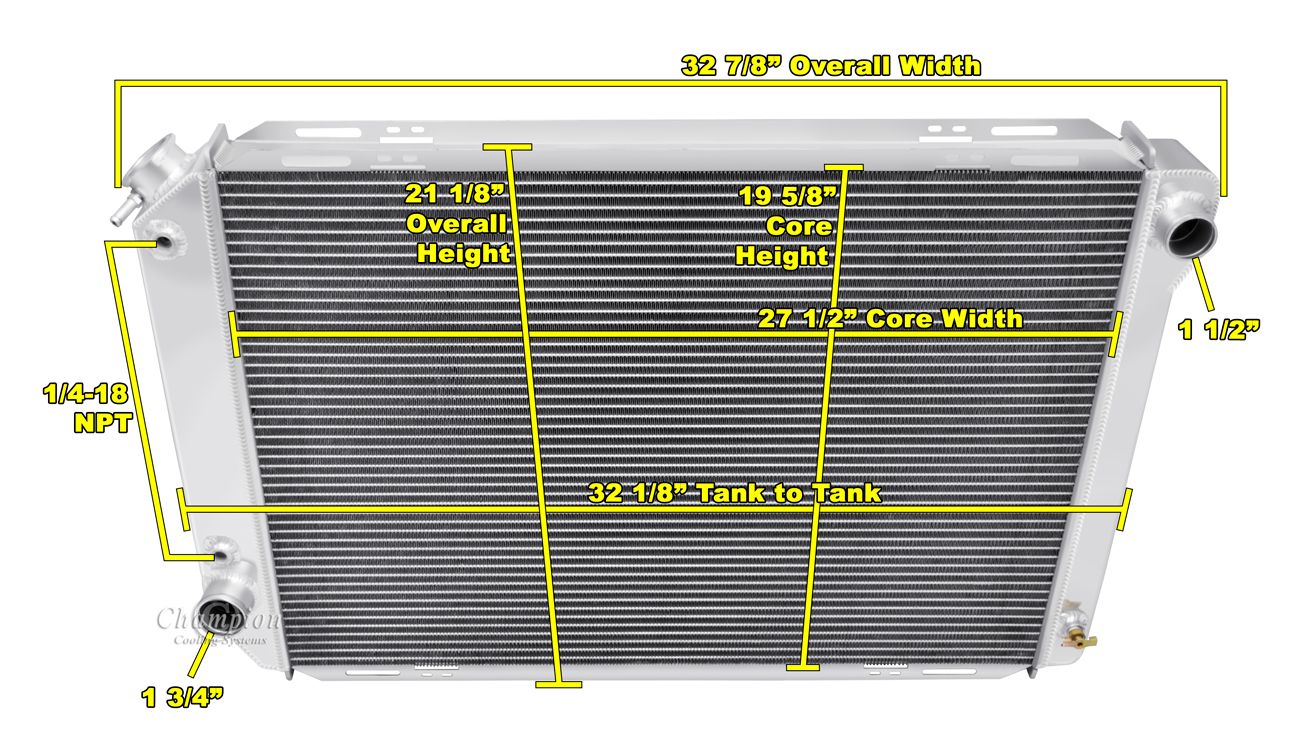

Radiator Dimensions:
Total: 21.13" tall  x 32.83" wide (with brackets)
Core: 19.63" tall x 27.5" wide x 2.5" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 2.75" thick
Tubes: 0.75" thick

Bracket Mounted

13lb. Radiator Cap included
Transmission Cooler included (1/4-18 NPT)


When using electric fans:
Two 12" SPAL Electric fans recommended for this core size (sold separetely)

Custom shroud for electric fan(s) available upon request:



Compatible With
80 - 84 F-Series Pickups (5.0L 302ci V8, 5.8L 351ci V8, 6.6L 400ci V8)
81 - 84 Ford Bronco (5.0L 302ci V8, 5.8L 351ci V8)
