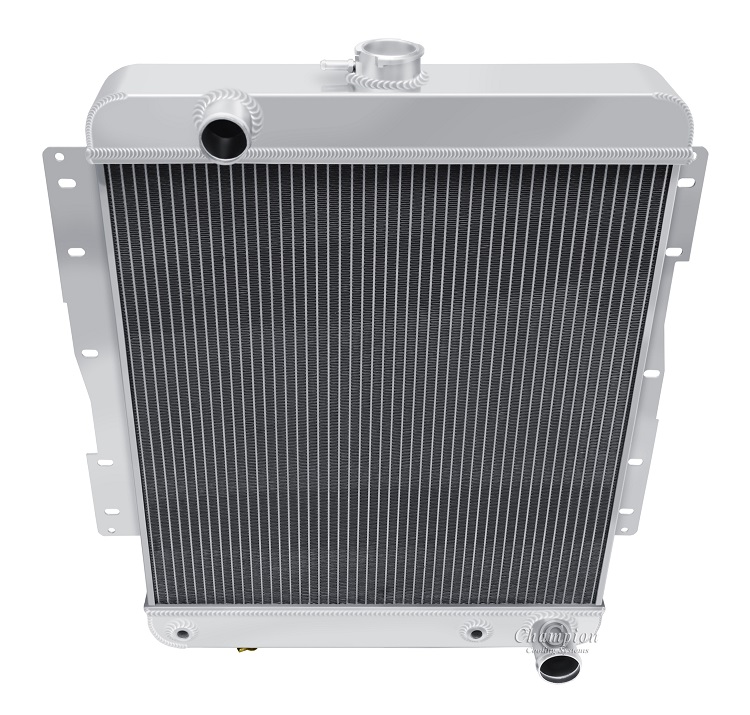

Champion All Aluminum Radiator

3-Row Core | Cools up to 650hp

Radiator Dimensions:
Total: 24.63" tall (25.75" with cap) x 23.5" (including brackets)
Core: 19.75" tall x 18.875" wide x 2." thick
Inlet: 1.5" driver
Outlet: 1.75" passenger side
Tanks: Upper tank 3.13"thick
             Lower tank 2.63 thick
Tubes: 0.63" thick

Bracket Mounted
Direct Fit Replacement

13lb. Radiator Cap included
Transmission Cooler included (1/2"- 20 straight thread)

When using electric fans:
One 16" Electric fan recommended for this core size (sold separately)


Compatible With
1958 Chevrolet Bel air (5.7L/348ci V8)
1958 Chevrolet Impala (5.7L/348ci V8)
1958 Chevrolet Biscayne (5.7L/348ci V8)
