Chevy Truck (41-46)
AE4146

AE4146

AE4146
Click to enlarge image(s)

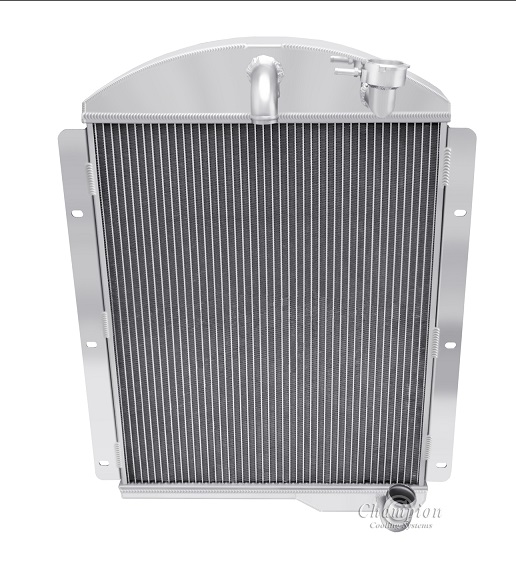

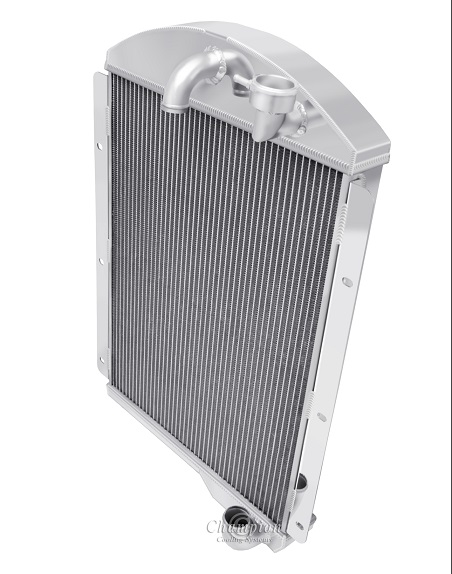

American Eagle All Aluminum Radiator
Fits original 6 cyl ONLY

2-Row Core, 1" thick tubes | Cools up to 450hp

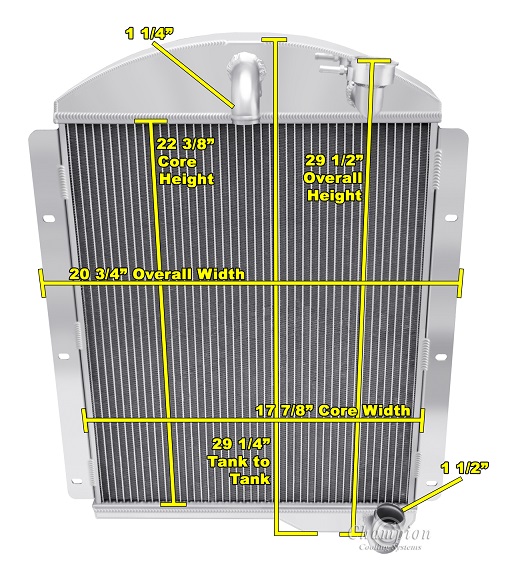

Radiator Dimensions:
Total: 29.5" tall (with cap) x 30.75" wide (including brackets)
Core: 23.38" tall x 17.88" wide x 2.25" thick
Inlet: 1.25" center of top tank
Outlet: 1.5" passenger side
Tanks: 2.5" thick
Tubes: 1" thick

Bracket Mounted

16 lb. Radiator Cap included
Transmission Cooler NOT included


Compatible With
Chevrolet Pick-Up Truck 1941-1946 (does not fit GMC)
AE4146CH

AE4146CH

AE4146CH
Click to enlarge image(s)

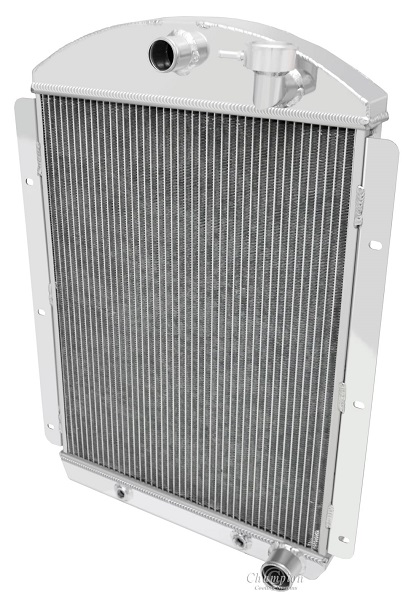

American Eagle All Aluminum Radiator
Fot V8 applications, does not fit 6 cyl

2-Row Core 1" thick tubes | Cools up to 550hp

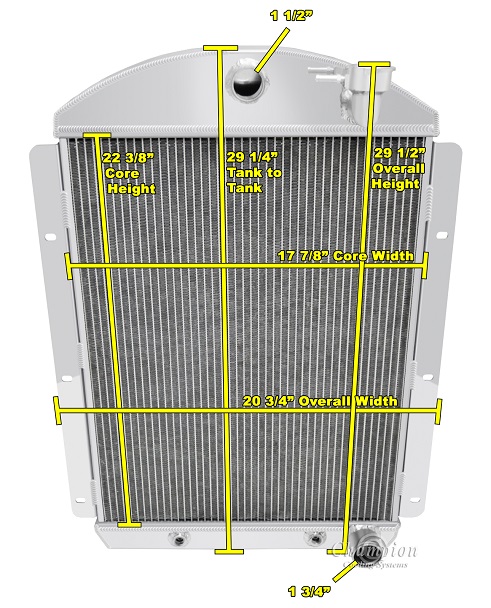

Radiator Dimensions:
Total: 29" tall (with cap) x 20.75" wide (including brackets)
Core: 22.25" tall x 18" wide x 2.25" thick
Inlet: 1.5" center of top tank
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 1" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/2-20 Straight Thread, Inverted Flare)


Compatible With
Chevrolet Truck 1941-1946 (V8 "small block")
AE4146CH-4146FS16

AE4146CH-4146FS16

AE4146CH-4146FS16
Click to enlarge image(s)

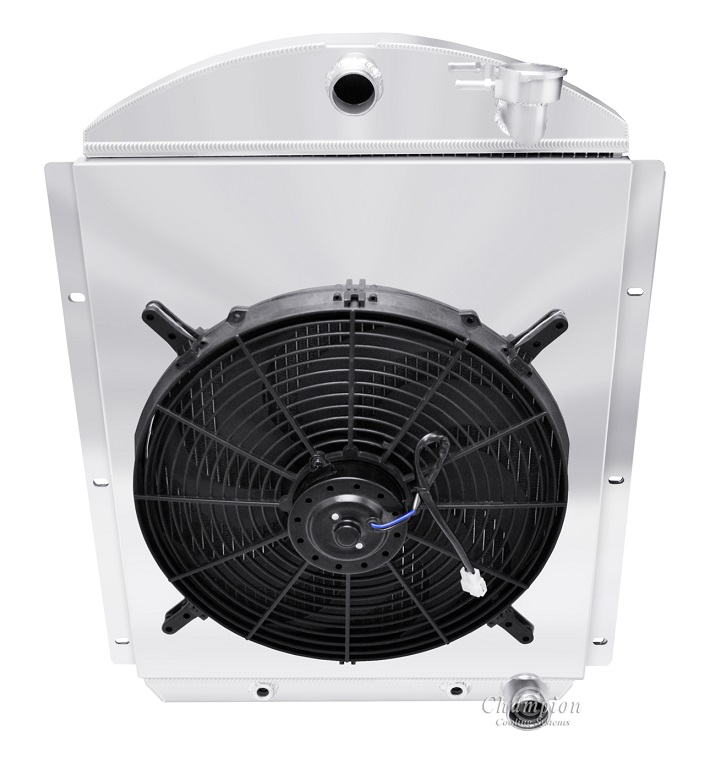

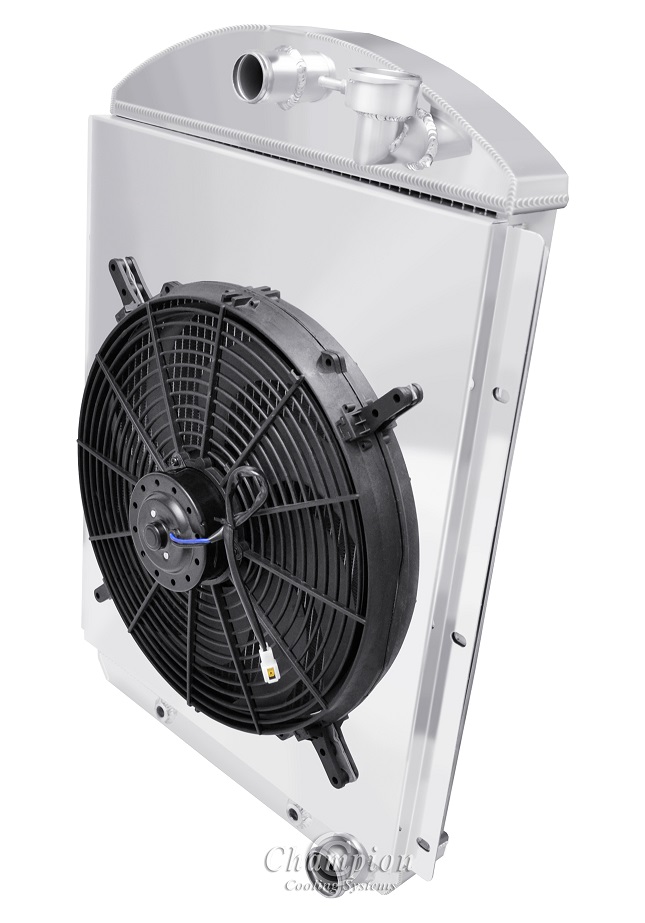

American Eagle All Aluminum Radiator Plus
Aluminum Shroud and 16" fan

Verify clearance for electric fan
Total thickness: 6.25" to fan motor
For Chevy V8 Engines
2-Row Core 1" tubes | Cools up to 600hp

Radiator Dimensions:
Total: 29.5 tall (with cap) x 20.75” wide (with brackets)
Core: 22.38" tall x 18" wide x  x 2.13" thick
Inlet: 1.5" center
Outlet: 1.75" passenger side
Tanks: 2.38" thick
Tubes: 1" thick

Shroud and Fan thickness: 4" off the radiator brackets

Bracket Mounted: located on engine face of radiator

Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare)

13lb. Radiator Cap included



Compatible With
Chevrolet Truck 1941-1946 (Chevy V8's)
