Chevrolet S-10 Direct fit for V6 (96-05) will cool a V8  (86-05)

CC1826

CC1826

CC1826
Click to enlarge image(s)

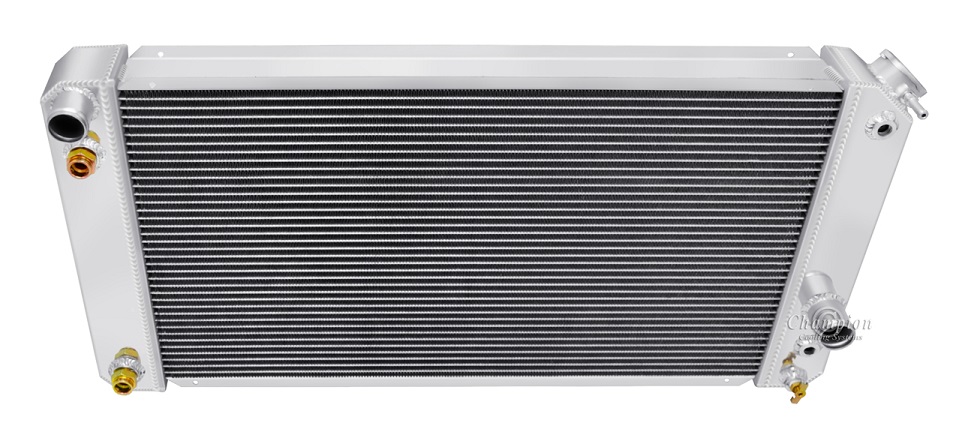

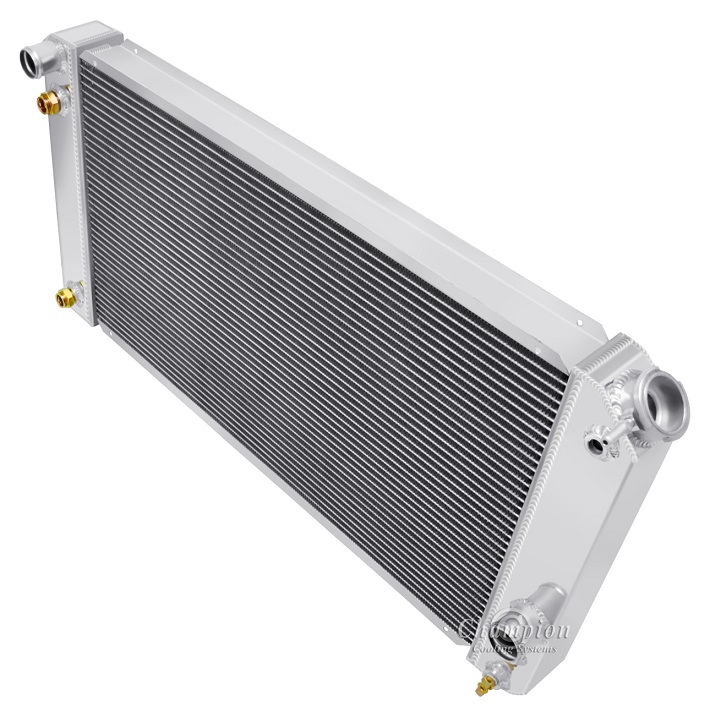

Champion All Aluminum Radiator
3-Row Core
| Cools up to 600hp
New Design is complete with Internal Engine Oil Cooler
If you remove the lower pins this radiator is only 16.25" tall

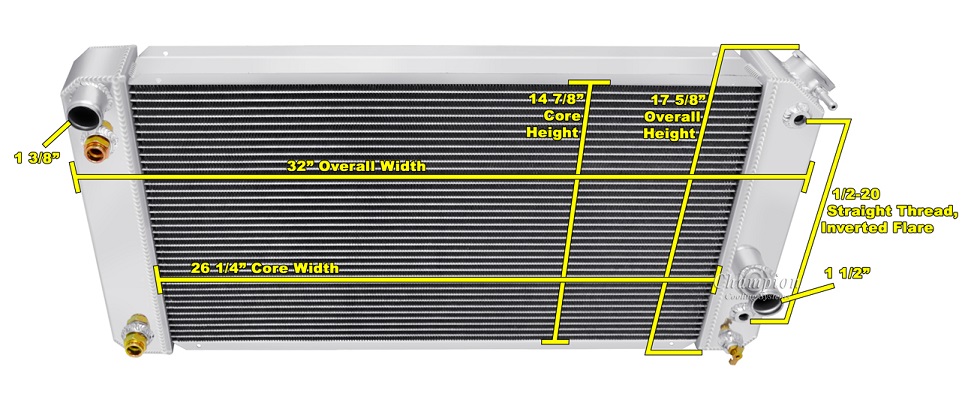

Radiator Dimensions:
Total: 16.25"(18" incl pins) tall x 32" wide
Core: 14.75" tall x 26.25" wide x 2" thick
Inlet: 1.38" driver side
Outlet: 1.5" passenger side
Tanks: 2.63" thick
Tubes: 0.63" thick

Pin Mounted

Radiator Cap Included
Transmission Cooler Included (1/2"-20 Straight Thread)
Engine Oil Cooler Included (Metric 20-1.5)

Recommended electric fans (sold separately):

Two 12" Electric Fans


Compatible With
Chevrolet/GMC S/T Series Pickups/Blazers 1996-2005 (4.3L 262ci V6)
Chevrolet/GMC Blazer/Jimmy 1996-2005 (4.3L 262ci V6)
Oldsmobile Bravada 1996-2001(4.3L 262ci V6)
S10 V8 Conversion 86-05
Izuzu Hombre 1997-2000 (4.3L 262ci V6)
