Please make sure of your core width and outlet position. The 20" wide core radiators are at the top and the 24" cores are at the bottom. Call if you need assistance.
EC340
.jpg "EC340") |
   |
| Click to enlarge image(s) |

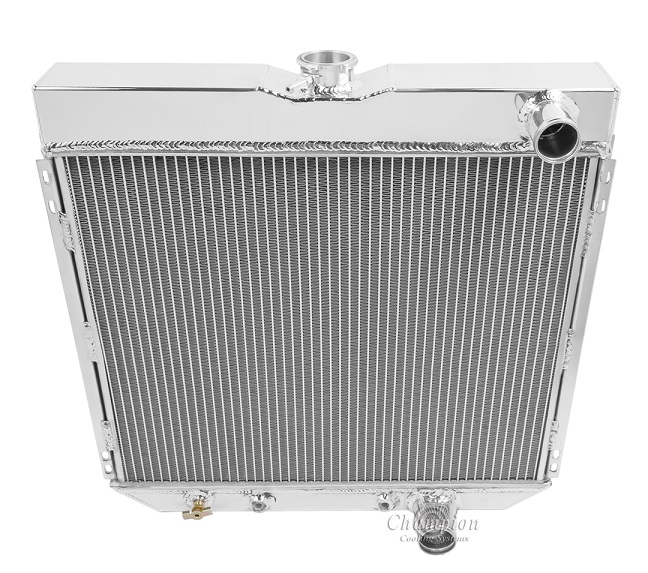

Champion All Aluminum Radiator
2-Row Core | Cools up to 350hp
EC340 Radiator Dimensions:
Total: 20.63" tall (21.25" with cap) x 22" wide (including brackets)
Core: 16.25" tall x 19.755" wide x 1.5" thick
Inlet: 1.5" passenger side
Outlet: 1.75" passenger side
Tanks: 2.38" thick
Tubes: 0.75" thick
Bracket Mounted
13lb. Radiator Cap included
Transmission Cooler Included (1/8-27NPT)
Aluminum Shroud is also Available (sold separately)
One 16" Electric fan recommended for this core size (sold separately)
| Compatible With | |
| Ford Mustang 1967-1970 (all motors) | |
| Ford Fairlane 1963-1965 (all motors) | |
| Ford Fairlane 1967-1968 (261ci v8 and 411ci V8) | |
| Ford Fairlane 1969 (261ci v8 and 411ci V8) | |
| Ford Falcon 1966-1967 (261ci V8) | |
| Ford Falcon 1968 (411ci V8) | |
| Ford Falcon 1969-1970 (411ci V8) | |
| Ford Galaxie 1964 (261ci V8) | |
| Ford Galaxie 1965 (261ci V8) | |
| Ford Galaxie 1966 (261ci V8 and 411ci V8) | |
| Ford Galaxie 1967 (411ci V8) | |
| Ford Galaxie 1968 (411ci V8) | |
| Ford Country Sedan 1964 (all motors) | |
| Ford Country Sedan 1965-1967 (all motors) | |
| Ford Country Sedan 1968 (all motors) | |
| Ford Country Squire 1964 (all motors) | |
| Ford Country Squire 1965-1967 (all motors) | |
| Ford Country Squire 1968 (all motors) | |
| Ford LTD 1967 (all motors) | |
| Ford LTD 1968 (all motors) | |
| Ford Torino 1968 (all motors) | |
| Ford Torino 1969 (all motors) | |
| Mercury Cougar/XR7 1967 (all motors) | |
| Mercury Cougar/XR7 1968 (all motors) |
CC340B
|
|
|
|
| Click to enlarge image(s) |
Champion All Aluminum Radiator
3-Row Core | Cools up to 550hp
Radiator Dimensions:
Total: 20.75" tall (21.25" with cap) x 22.25" wide (with brackets)
Core: 16.38" tall x 20.25" wide x 2.5" thick
Inlet: 1.5" passenger side
Outlet: 1.75" passenger side
Tanks: 3" thick
Tubes: 0.75" thick
Bracket Mounted
Radiator Cap Included
Transmission Cooler Included (1/8-27NPT)
Aluminum Shroud is also available (sold separately)
One 16" Electric fan recommended for this core size (sold separately)
| Compatible With | |
| Ford Galaxie 1965-1967 (289 Small Block Engines only) | |
| Ford Mustang 1967-1970 (Small Blocks with passenger side outlet) | |
| Ford Fairlane 1963-1969 (6 Cyl and Small Blocks with passenger side outlet) |
MC340
 |
|
|
| Click to enlarge image(s) |
Champion All Aluminum Radiator
4-Row Core | Cools up to 650hp
MC340 Radiator Dimensions:
Total: 20.63" (21.25" with cap) x 22" wide (including brackets)
Core: 16.25" tall x 19.75" wide x 2.75" thick
Inlet: 1.5" passenger side
Outlet: 1.75" passenger side
Tanks: 3.13" thick
Tubes: 0.63" thick
Bracket Mounted
13 lb. Radiator Cap included
Transmission Cooler Included (1/8-27NPT)
Aluminum Shroud is also Available (sold separately)
One 16" Electric fan recommended for this core size (sold separately)
| Compatible With | |
| Ford Mustang 1967-1970 (all motors) | |
| Ford Fairlane 1963-1965 (all motors) | |
| Ford Fairlane 1966-1969 (2621ci and 411ci) | |
| Ford Falcon 1966-1967 (261ci V8) | |
| Ford Falcon 1968-1970 (411ci V8) | |
| Ford Galaxie 1964-1965 (261ci V8) | |
| Ford Galaxie 1966 (261ci and 411ci V8) | |
| Ford Galaxie 1967-1968 (411ci V8) | |
| Ford Country Sedan 1964-1968 (all motors) | |
| Ford Country Squire 1964-1968 (all motors) | |
| Ford LTD 1967-1968 (all motors) | |
| Ford Torino 1968-1969 (all motors) | |
| Mercury Cougar/XR7 1967-1968 (all motors) |
EC338
 |
  |
| Click to enlarge image(s) |

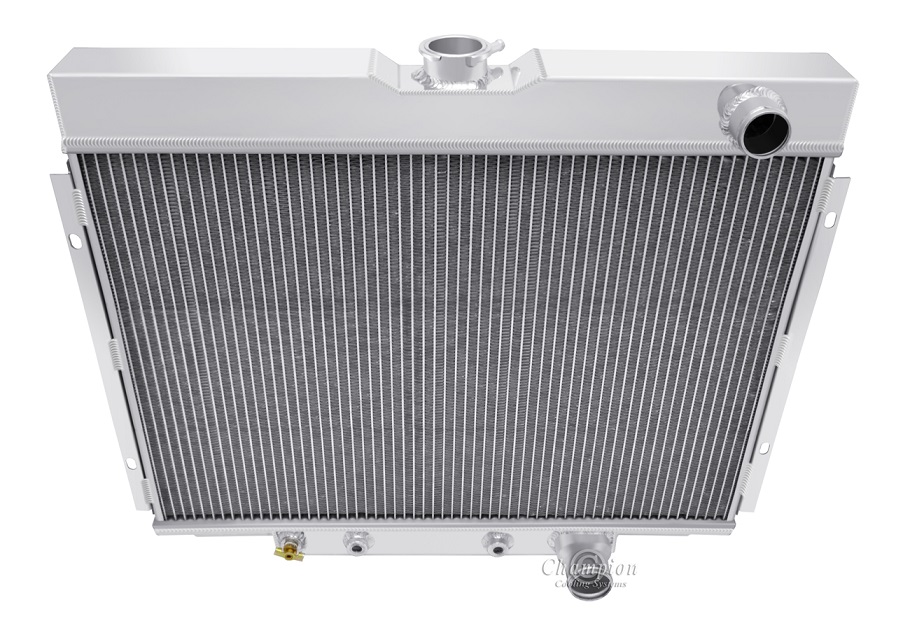

Champion All Aluminum Radiator
2-Row Core

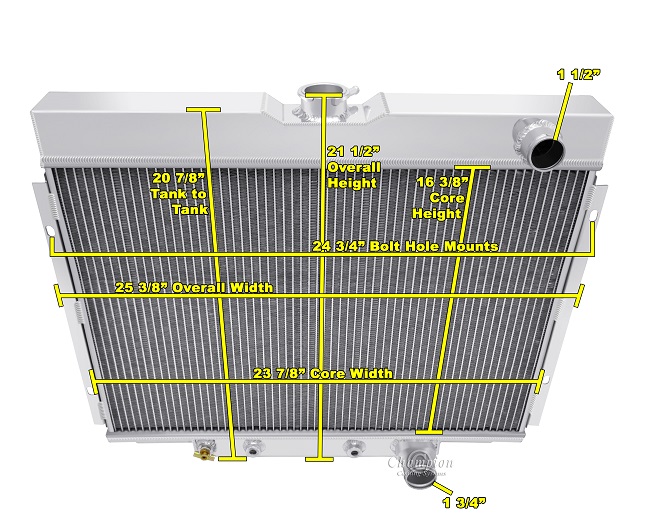

Radiator Dimensions:
Total: 21.75" tall (22" with cap) x 25.38" wide (including brackets)
Core: 16" tall x 24.25" wide x 1.75" thick
Inlet: 1.5" passenger side
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 0.75" thick
Saddle or Bracket Mounted
13lb. Radiator Cap included
Transmission Cooler Included (1/8-27NPT)
Aluminum Shroud is also available (sold separately)
When using electric fans:
One 16" or two 12" Electric fans recommended for this core size (sold separately)
| Compatible With | |
| Ford Mustang 1967-1970 (all motors) | |
| Ford Fairlane 1969 (all motors) | |
| Ford Ranchero 1969 (all motors) | |
| Mercury Cougar/XR7 1967-1970 (all motors) |
CC338
|
|
|
|
| Click to enlarge image(s) |
Champion All Aluminum Radiator
3-Row Core | Cools up to 650hp
Radiator Dimensions:
Total: 21" (22" with cap) x 25.75" wide (with brackets)
Core: 16.5" tall x 24.25" wide x 2" thick
Inlet: 1.5" passenger side
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick
Saddle or Bracket Mounted
Radiator Cap included
Transmission Cooler included (1/8-27NPT)
Aluminum Shroud is also available (sold separately)
When using electric fans:
One 16" or two 12" Electric fans recommended for this core size (sold separately)
| Compatible With | |
| Ford Mustang 1967-1970 (all engines) | |
| Ford Fairlane 1969 (all engines) | |
| Ford Ranchero 1969 (all engines) | |
| Mercury Cougar/XR7 1967-1970 (all engines) |
MC338
|
|
|
|
| Click to enlarge image(s) |
Champion All Aluminum Radiator
4-Row Core ; Polished Tanks | Cools up to 700hp
Original Top Saddle Mount will not fit over these thicker tanks
Radiator Dimensions:
Total: 21.75" tall (22" with cap) x 25.38" wide (including brackets)
Core: 16" tall x 24.25" wide x 2.75" thick
Inlet: 1.5" passenger side
Outlet: 1.75" passenger side
Tanks: 3.13" thick
Tubes: 0.63" thick
Saddle Mounted or Bracket Mounted
13 lb. Radiator Cap included
Transmission Cooler Included (1/8-27NPT)
Aluminum Shroud is also Available (sold separately)
When using electric fans:
One 16" or two 12" Electric fans recommended for this core size (sold separately)
| Compatible With | |
| Ford Mustang 1967-1970 (all motors) | |
| Ford Fairlane 1969 (all motors) | |
| Ford Ranchero 1969 (all motors) | |
| Mercury Cougar/XR7 1967-1969 (all motors) |
