Malibu (64-67)

Scroll down for additional options. The Combo with the 16" fan moves more air, the 2-12" fans allow more space if needed.
EC289-289FS16

EC289-289FS16

EC289-289FS16
Click to enlarge image(s)
Champion All Aluminum Radiator
Plus Ledfoot Racing Aluminum Shroud & 16" Fans
Verify clearance for electric fan
Total thickness: 5.75" to fan motor
2 Row Core | Cools 500hp

Radiator Dimensions:
Total: 21.75" tall x 28" wide (including brackets)
Core: 16 1/8” tall x 25” wide x 2.5" thick
Inlet: 1.5” driver side
Outlet: 1.75” passenger side
Tanks: 2 3/4” thick
Tubes: 0.75" thick

Total Thickness: 6.63", Thinner fans available

Bracket Mounted

Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare)

13lb. Radiator Cap included

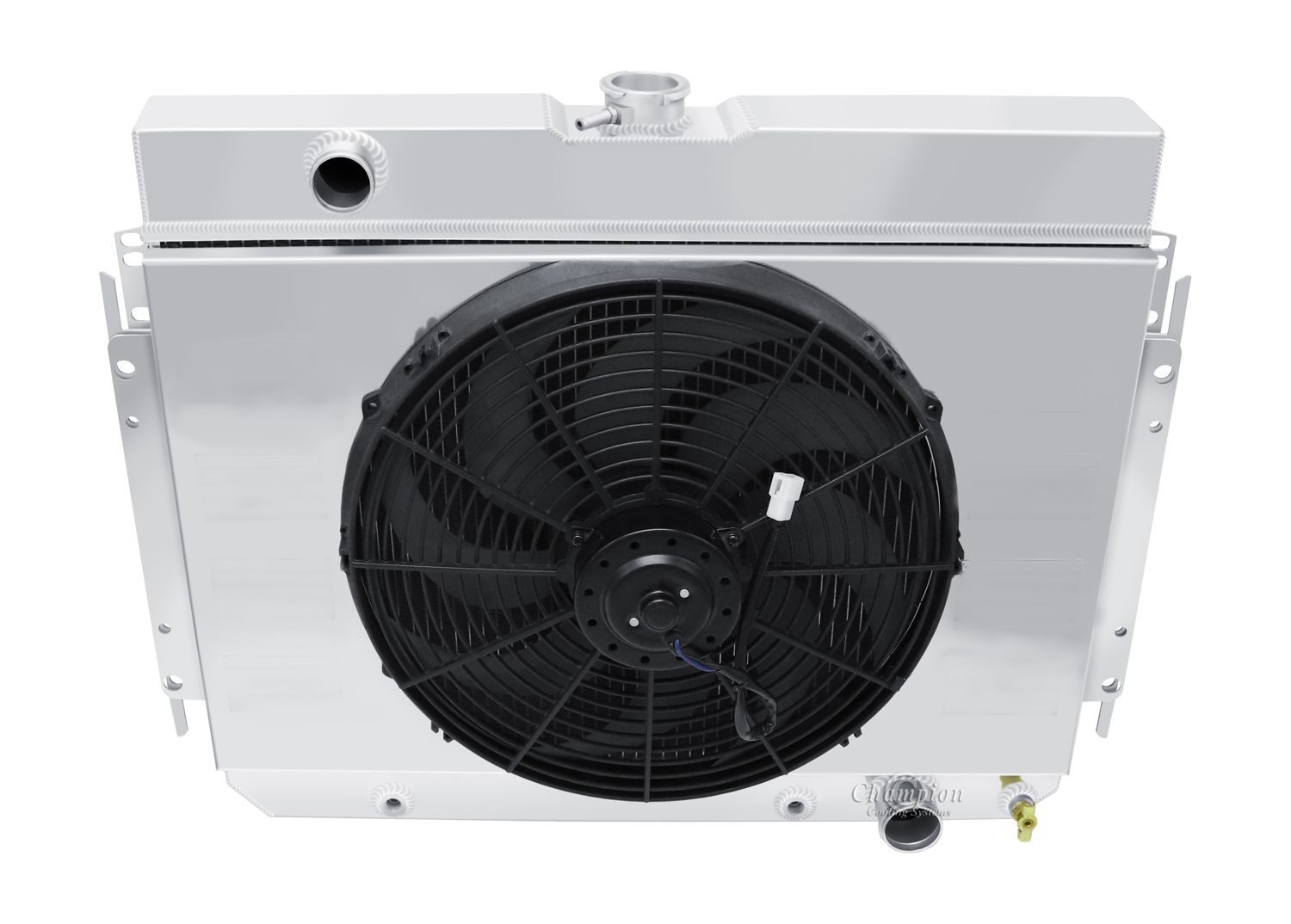

CC289B-289FS16

CC289B-289FS16

CC289B-289FS16
Click to enlarge image(s)

Champion All Aluminum Radiator
Plus Ledfoot Racing Aluminum Shroud & 16" Fan
Verify clearance for electric fan
Total thickness: 6.5" to fan motor

3-Row Core | Cools up to 700hp

Radiator Dimensions:
Total: 21.75" tall x 28" wide (including brackets)
Core: 16.13” tall x 25” wide x 2.5" thick
Inlet: 1.5” driver side
Outlet: 1.75” passenger side
Tanks: 2.75” thick
Tubes: 0.75" thick

Total Thickness: 6.87", Thinner fans available

Bracket Mounted

Radiator Cap Included
Transmission Cooler Included (1/2"-20 straight thread)



Compatible With
Chevy Chevelle 1964-1967 (283ci V8, 396ci V80
Chevy Caprice 1966 (283ci V8, 327ci V8)
Chevy Caprice 1967-1968 (4.1L I6, 283ci V8, 327ci V8)
Chevy Impala 1963-1965 (3.8L I6, 283ci V8, 327ci V8)
Chevy Impala 1966-1968 (4.1L I6, 283ci V8, 327ci V8)
Chevy Biscayne 1963-1965 (3.8L I6, 283ci V8, 327ci V8)
Chevy Biscayne 1966-1968 (4.1L I6, 283ci V8, 327ci V8)
Chevy Bel Air 1963-1965 (3.8L I6, 283ci V8, 327ci V8)
Chevy Bel Air 1966 (4.1L I6, 283ci V8, 327ci V8)
Chevy Bel Air 1967-1968 (4.1L I6, 283ci 283ci V8, 327ci V8)
Chevy El Camino 1964-1967 (all engines)
MC289-289FS16

MC289-289FS16

MC289-289FS16
Click to enlarge image(s)
Champion All Aluminum Radiator
Plus Ledfoot Racing Aluminum Shroud & 16" Fans
Verify clearance for electric fan
Total thickness: 7" to fan motor

4-Row Core Polished Tanks | Cools up to 750hp

Radiator Dimensions:
Total: 21.75" tall x 28" wide (incl brackets)
Core: 16.13" tall x 25" wide x 2.8" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 3.25" thick
Tubes: 0.63" thick

Total Thickness: 7.25", Thinner fans available

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/2-20 Straight Thread, Inverted Flare)


289FS16

289FS16

289FS16
Click to enlarge image(s)

Ledfoot Racing Aluminum Fan Shroud for one 16" Electric Fan


Dimensions:
15.75" tall x 27.75" wide

Attributes:
All-Aluminum Fan Shroud
Cut-out to accept one 16" electric fan
Designed Exclusively for One Electric Fan (sold separately)
Made in the U.S.A

Compatible with:
Champion EC289, CC289, MC289, and American Eagle AE289. Will also fit OEM radiator.



EC289-289FS12SP

EC289-289FS12SP

EC289-289FS12SP
Click to enlarge image(s)
Champion All Aluminum Radiator
Plus Ledfoot Racing Shroud & Two 12" SPAL 1522 Fans
2 Row Core | Cools 500hp

Radiator Dimensions:
Total: 20" tall x 28" wide (including brackets)
Core: 16.13" tall x 25" wide x 2.5" deep
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 2.75" thick
Tubes: 0.75" thick

Total Thickness: 5.63" to back of fans, 4.38" at Center

Bracket Mounted

13lb. Radiator Cap included
Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare)


CC289B-289FS12SP

CC289B-289FS12SP

CC289B-289FS12SP
Click to enlarge image(s)
Champion All Aluminum Radiator
Plus Ledfoot Racing Shroud & 2-12" SPAL 1522 Fans
3-Row Core | Cools up to 700hp

Radiator Dimensions:
Total: 21.75" tall x 28" wide (with brackets)
Core: 16.13” tall x 25” wide x 2.5" deep
Inlet: 1.5” driver side
Outlet: 1.75” passenger side
Tanks: 2.5” thick
Tubes: 0.75" thick

Total Thickness: 5.87" to back of fans, 4.63" at Center

Bracket Mounted

Transmission Cooler Included (1/2"- 20 sraight thread)
Radiator Cap Included
LS Version Available


Compatible With
Chevy Chevelle 1964-1967 (283ci V8, 396ci V80
Chevy Caprice 1966 (283ci V8, 327ci V8)
Chevy Caprice 1967-1968 (4.1L I6, 283ci V8, 327ci V8)
Chevy Impala 1963-1965 (3.8L I6, 283ci V8, 327ci V8)
Chevy Impala 1966-1968 (4.1L I6, 283ci V8, 327ci V8)
Chevy Biscayne 1963-1965 (3.8L I6, 283ci V8, 327ci V8)
Chevy Biscayne 1966-1968 (4.1L I6, 283ci V8, 327ci V8)
Chevy Bel Air 1963-1965 (3.8L I6, 283ci V8, 327ci V8)
Chevy Bel Air 1966 (4.1L I6, 283ci V8, 327ci V8)
Chevy Bel Air 1967-1968 (4.1L I6, 283ci 283ci V8, 327ci V8)
Chevy El Camino 1964-1967 (all engines)
MC289-289FS12SP

MC289-289FS12SP

MC289-289FS12SP
Click to enlarge image(s)
Champion All Aluminum Radiator Plus
Ledfoot Racing Shroud
 & 2-12" SPAL 1522 Fans
4-Row Core Polished Tanks | Cools up to 750hp

Radiator Dimensions:
Total: 21.75" tall x 28" wide (including brackets)
Core: 16.13" tall x 25" wide x 2.8" deep
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 3.25" thick
Tubes: 0.63" thick

Total Thickness: 6.25" to back of fans, 5" at Center

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/2-20 Straight Thread, Inverted Flare)


289FS12

289FS12

289FS12
Click to enlarge image(s)

Ledfoot Racing Aluminum Fan Shroud for Two 12" Electric Fans

Dimensions:
15.75" tall x 27.75" wide

Attributes:
All-Aluminum Fan Shroud
Cut-outs to accept two 12" electric fans
Designed Exclusively for Two Electric Fans (sold separately)
Made in the U.S.A

Compatible with:
Champion EC289, CC289, MC289, and American Eagle AE289. Will also fit OEM radiator.
