Deluxe Relay kit, Dual Fans (waterproof)
Dual Fan Relay Kit

Dual Fan Relay Kit

Dual Fan Relay Kit
Click to enlarge image(s)
Our Waterproof dual electric fan relay kit with thermostat turns your fans on when the temperature of the engine reaches 185° and off at 165°. Purchase this dual electric fan wiring kit today.

Make sure your engine has an available port on your intake manifold or heads. You can also get water necks with a 3/8" NPT bung. Does not work with LS engins unless you just need the harness and relay, no spot for the sensor. Many 6 cyl engines do not have extra ports, in this case you will need the type of kit that has a probe to go into the core of the radiator.

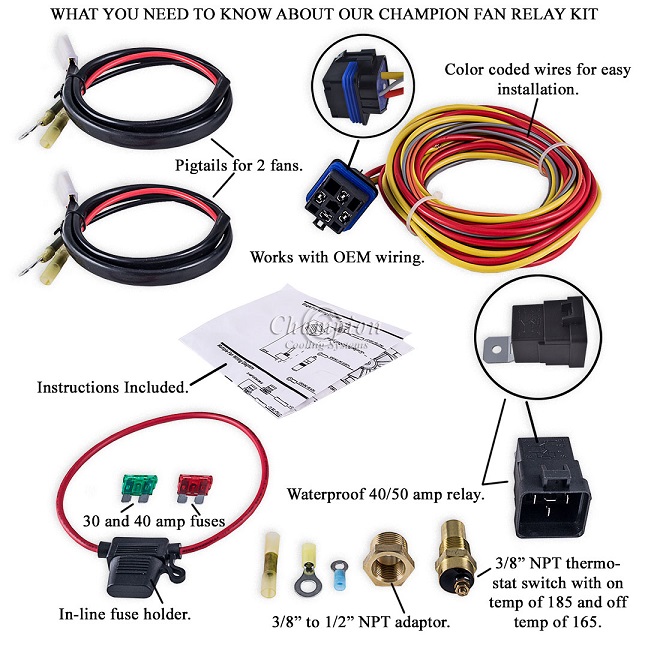

Includes:
  • Wiring Harness
  • Waterproof Relay
  • Sensor Switch 3/8" NPT
  • Inline fuse holder with 30amp and 40 amp fuses
  • Brass adapter to fit larger ports (not shown, only available upon request)
  • Installation instructions
  • Two Pigtails
