GMC Truck radiators (60-62)

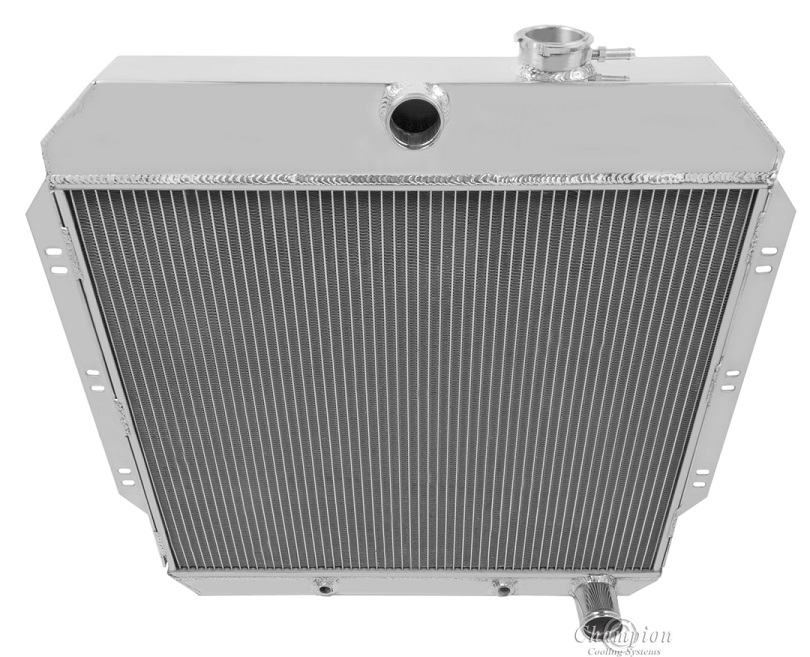

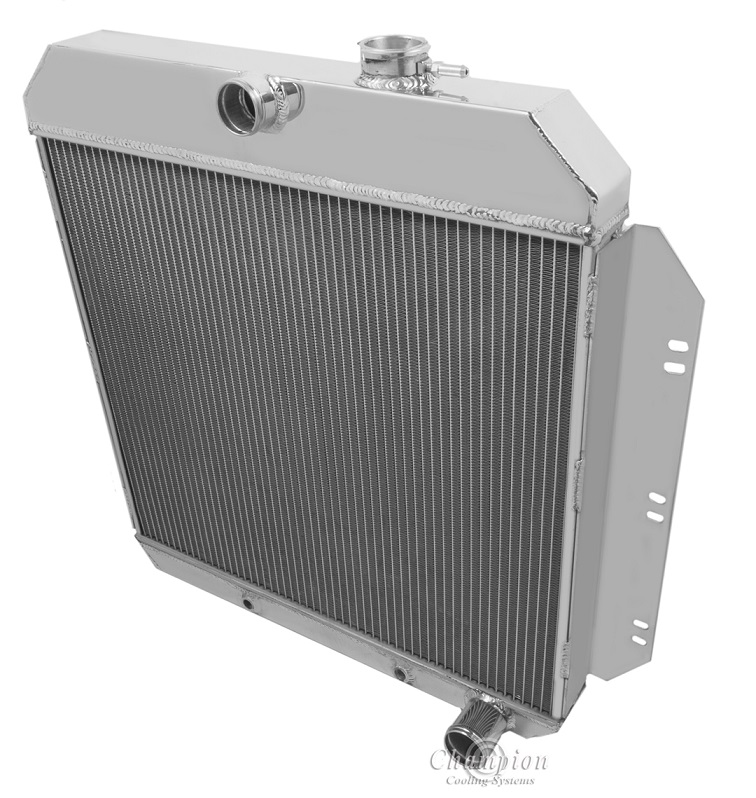

EC6062

EC6062

EC6062
Click to enlarge image(s)

Confirm Width and Saddle or Bracket Mounted See EC6066 if Saddle Mounted
Champion All Aluminum Radiator

2-Row Core | Cools up to 400hp

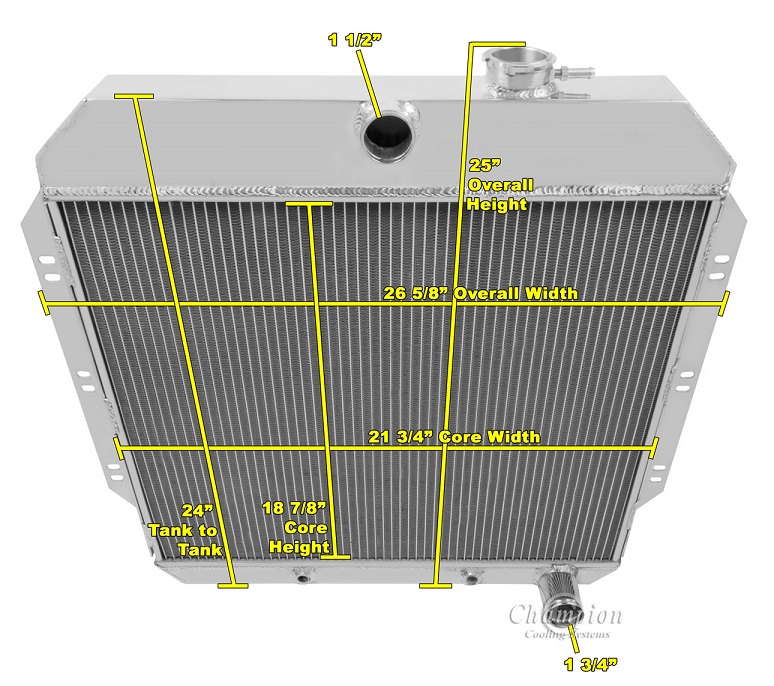

EC6062 Radiator Dimensions:
Total: 25" tall (with cap) x 26.63" (including brackets)
Core: 18.88" tall x 21.75" wide x 1.75" thick
Inlet: 1.5" center
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 0.75" thick

Bracket Mounted

13lb. Radiator Cap included
Transmission Cooler Included (1/2"-20 straight thread, inverted flare)

When using electric fans:
One 16" Electric fan recommended for this core size (sold separately)



Compatible With
Chevrolet Truck 1960-1962
CC6062

CC6062

CC6062
Click to enlarge image(s)

Confirm Width and Saddle or Bracket Mounted See EC6066 if Saddle Mounted
Champion All Aluminum Radiator
3-Row Core | Cools up to 650hp

Radiators Dimensions:
Total: 25” tall (with cap) x 26.6" wide (including brackets)
Core: 18.88" tall x 21.75" wide x 2" thick
Inlet: 1.5" center
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler Included (1/2"- 20 straight thread, inverted flare)

When using electric fans:
One 16" Electric fan recommended for this core size (sold separately)



Compatible With
Chevrolet Truck 1960-1962
MC6062

MC6062

MC6062
Click to enlarge image(s)

Champion All Aluminum Radiator
4-Row Core | Cools up to 700hp

Radiators Dimensions:
Total: 25” tall (with cap) x 26.6" wide (including brackets)
Core: 18.88" tall x 21.75" wide x 2.75" thick
Inlet: 1.5" center
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap Included
Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare)
Aluminum Fan Shroud is also available (sold separately)

When using electric fans:
One 16" Electric fan recommended for this core size (sold separately)



Compatible With
Chevrolet Truck 1960-1962
