1932 Ford Low-Boy (Chevy Engine) Radiator

EC1009

EC1009

EC1009
Click to enlarge image(s)

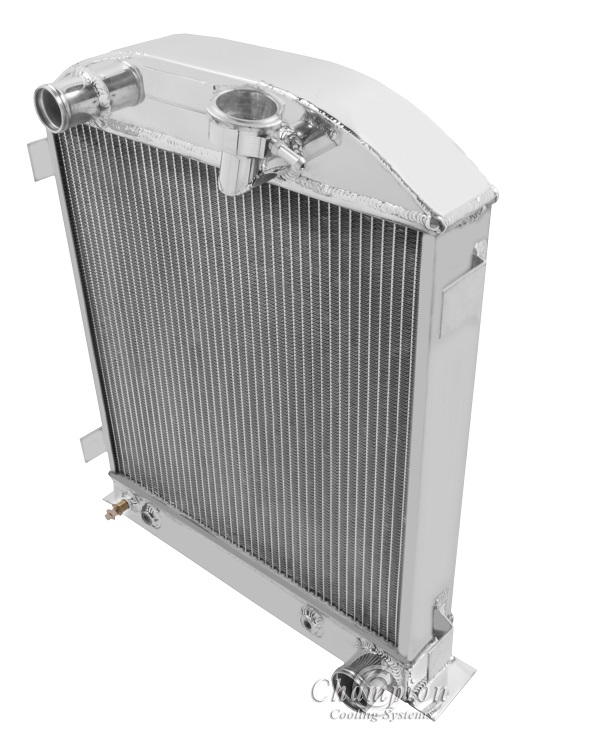

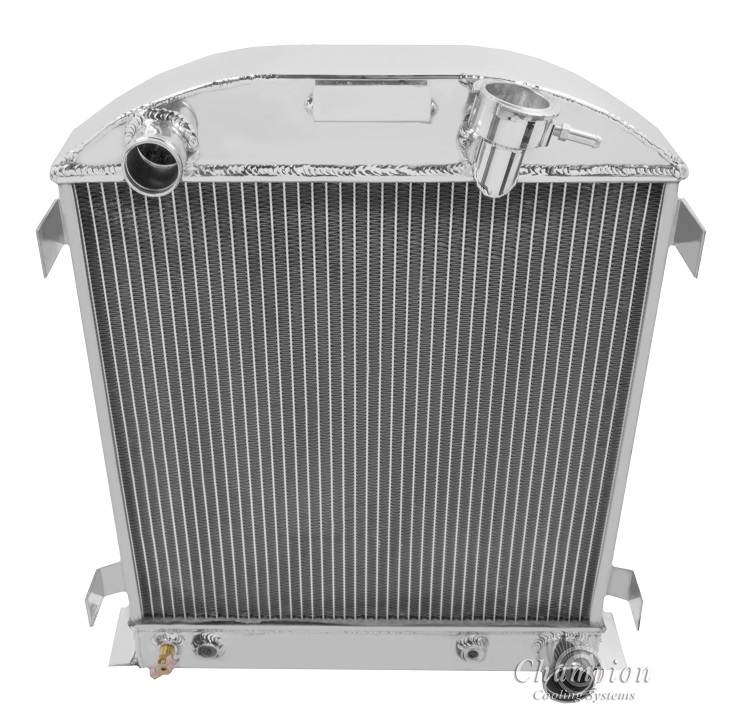

All Aluminum Champion Radiator
2-Row Core | Cools up to 400hp

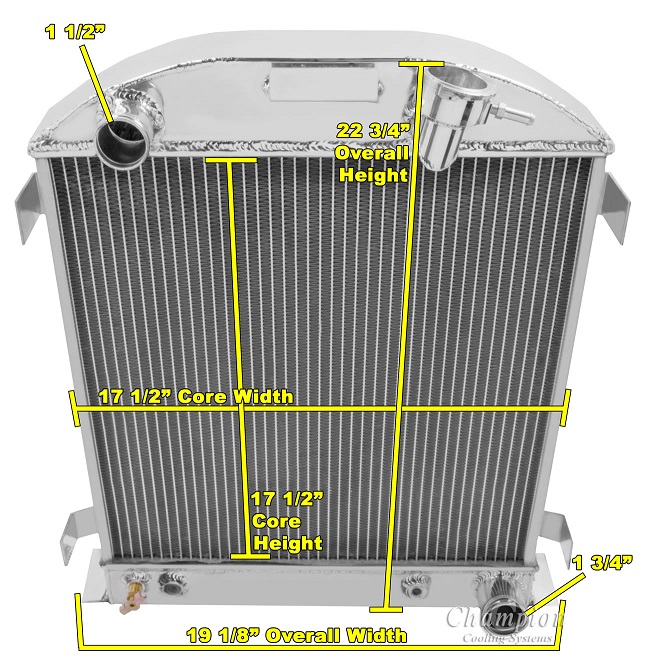

Radiator Dimensions:
Total: 22.75" tall x 19.75" wide ( at lower bracket)
Core: 17" tall x 17.25" wide x 1.75" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 3" thick
Tubes: 0.75" thick

Bracket Mounted

13lb. Radiator Cap included
Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare)

When using electric fans:
One 16" Electric Cooling Fan recommended for this core size (sold separately)


Compatible With
Ford Chopped 1932 (Chevrolet/Mopar Configuration)
CC1009B

CC1009B

CC1009B
Click to enlarge image(s)
All Aluminum Champion Radiator
3 Row Core | Cools up to 650hp

Radiator Dimensions:
Total: 19.75" wide (including brackets) x 22.75" tall
Core: 17.25" wide x 17" tall x 2.5" thick
Inlet: 1.5" drivers side
Outlet: 1.75" passenger side
Tanks: 3" thick
Tubes:  0.75" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/2-20 Straight Thread, Inverted Flare)

When using electric fans:
One 16" fan recommended for this core size (sold separately)

Custom shroud for electric fan(s) available upon request:


This part applies to the following cars:
Compatible With
Ford Chopped 1932 (Chevy/Mopar configuration)
MC1009

MC1009

MC1009
Click to enlarge image(s)
All Aluminum Champion Radiator
4-Row Core | Cools up to 750hp

Radiator Dimensions:
Total: 19.75" wide (including brackets) x 22.75" tall
Core: 17.25" wide x 17" tall x 2.75" thick
Inlet: 1.5" drivers side
Outlet: 1.75" passenger side
Tanks: 3.25" thick
Tubes:  0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/2"- 20 STRAIGHT THREAD)

When using electric fans:
One 16" fan recommended for this core size (sold separately)


This part applies to the following cars:
Compatible With
Ford Chopped 1932 (Chevy/Mopar configuration)
