Caprice (69-70) Radiators

CC345

CC345

CC345
Click to enlarge image(s)

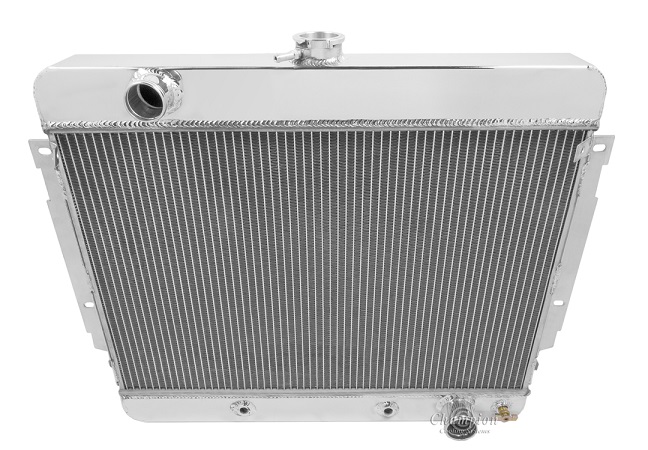

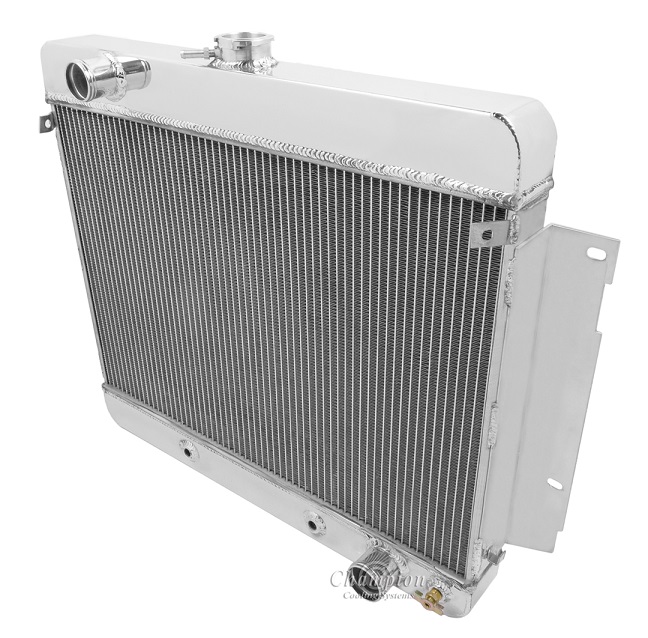

All Aluminum Champion Radiator
3-Row Core: Cools 500hp
Note: This replaces the factory 15.5" tall core w/o AC

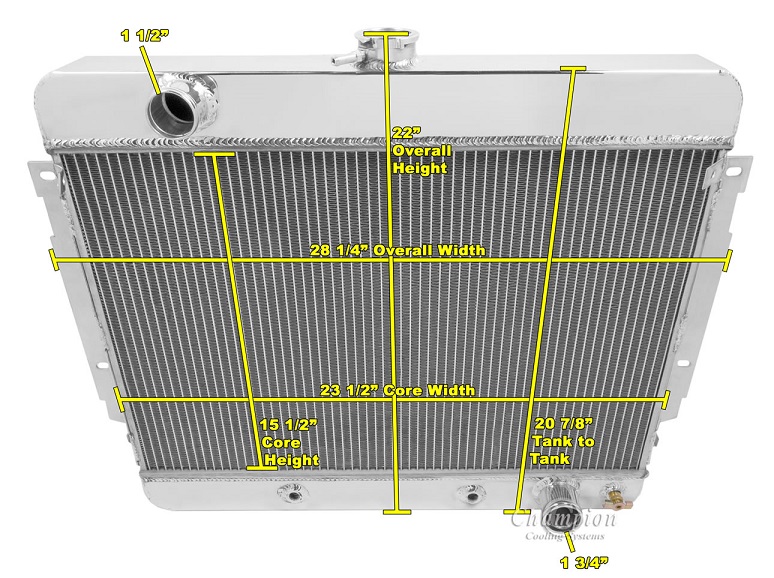

Radiator Dimensions:
Total: 22" tall x 28.25" wide (with brackets)
Core: 15.5" tall x 23.38" wide x 2" thick
Inlet: 1.5" driver side
Outlet: 1.75” passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap Included
Transmission Cooler Included (1/2" 20 STRAIGHT THREAD, INVERTED FLARE)

Recommended Fans:
One 16" or two 11" SPAL Electric fans recommended for this core size (sold separately)



Compatible With
Chevrolet Impala 1969-1970
Chevrolet Caprice 1969-1970
Chevrolet Bel Air 1969-1970
Chevrolet Biscayne 1969-1970
Chevrolet Brookswood 1969-1970
Chevrolet Kingswood 1969-1970
MC345

MC345

MC345
Click to enlarge image(s)

All Aluminum Champion Radiator
4-Row Core: Cools 600hp
Note: This replaces the factory 15.5" tall core w/o AC

Radiator Dimensions:
Total: 22" tall x 28.25" wide (with brackets)
Core: 15.5" tall x 23.38" wide x 2.75" thick
Inlet: 1.5" driver side
Outlet: 1.75” passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare)


Recommended Fans:
One 16" or two 12" Electric fans recommended for this core size (sold separately)

Custom shroud for electric fan(s) available upon request:



Compatible With
Chevrolet Impala 1969-1970
Chevrolet Caprice 1969-1970
Chevrolet Bel Air 1969-1970
Chevrolet Biscayne 1969-1970
Chevrolet Brookswood 1969-1970
Chevrolet Kingswood 1969-1970
