Jeep CJ Series (70-85)

Scroll down for additional options including Chevy Conversion set up
EC583-583FS16

EC583-583FS16

EC583-583FS16
Click to enlarge image(s)
Champion All Aluminum Radiator
Plus Ledfoot Racing Aluminum Shroud and 16" Fan

Verify clearance for electric fan
Total thickness: 5.75" to fan motor
2-Row Core | 375hp Rating

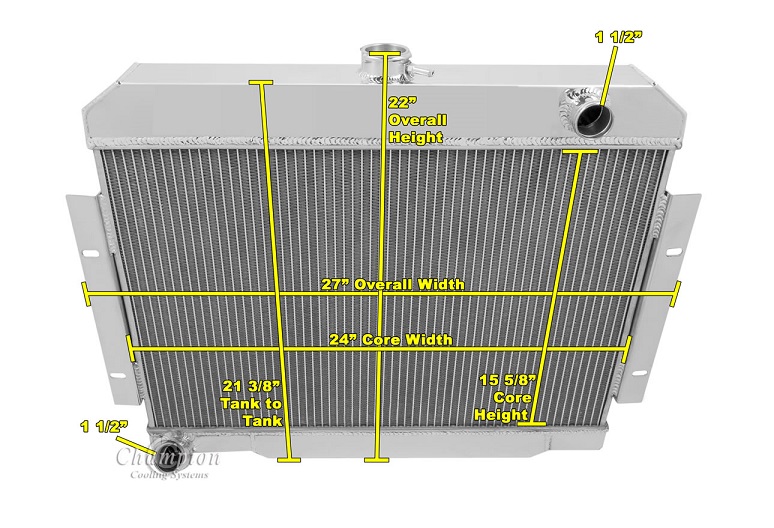

EC583 Radiator Dimensions:
Total: 22" tall x 27" wide (including brackets)
Core: 15.63" tall x 24" wide x 1.58" thick
Inlet: 1.5" passenger side
Outlet 1.5" driver side
Tanks: 2" thick
Tubes: 0.75" thick

Bracket Mounted

13lb. Radiator Cap included
Transmission Cooler included (1/8"-27npt)


CC583-583FS16

CC583-583FS16

CC583-583FS16
Click to enlarge image(s)

Champion All Aluminum Radiator
Plus Ledfoot Racing Aluminum Shroud & 16" Fan
Verify clearance for electric fan
Total thickness: 6" to fan motor

3-Row Core | 600hp Rating

Radiator Dimensions:
Total: 22" tall x 27" wide (including brackets)
Core: 15.63" tall x 24" wide x 2.25" thick
Inlet: 1.5" passenger side
Outlet: 1.5" driver side
Tanks: 2.75" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler Included (1/8"-27npt)



CC1919-1919FS16

CC1919-1919FS16

CC1919-1919FS16
Click to enlarge image(s)

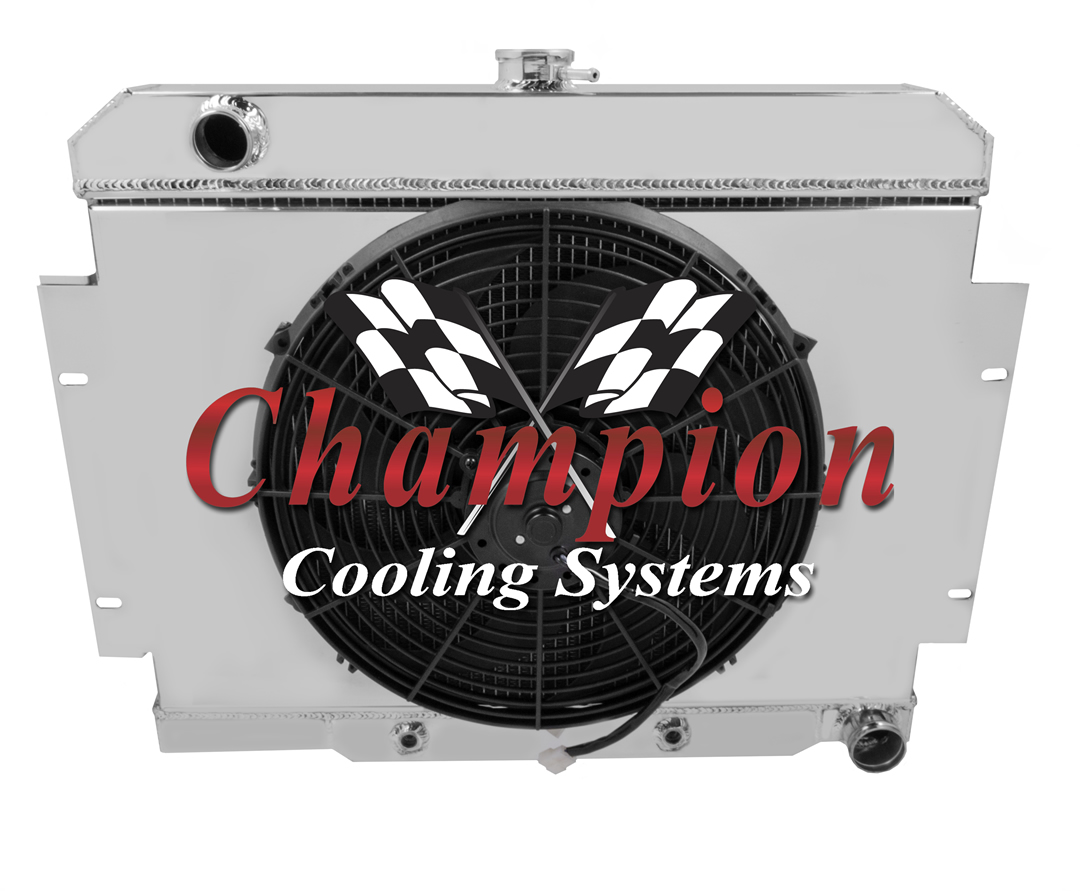

Champion All Aluminum Radiator
Plus Ledfoot Racing Aluminum Shroud & 16" Fan
Verify clearance for electric fan

Chevy Conversion outlet configuration
3-Row Core | 600hp Rating

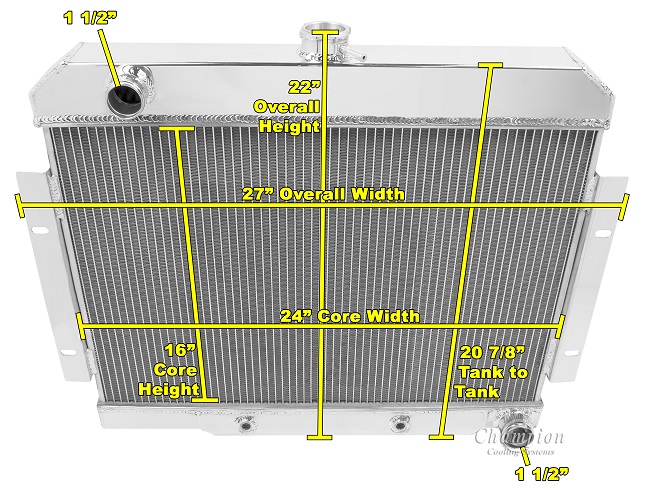

Radiator Dimensions:
Total: 22" tall x 27" wide (including brackets)
Core: 16" tall x 24" wide x 2" thick
Inlet: 1.5" driver side
Outlet: 1.5" passengerside
Tanks: 2.75" thick
Tubes: 0.63" thick
Total Thickness: 6"

Bracket Mounted

Radiator Cap Included
Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare)




MC1919-1919FS16

MC1919-1919FS16

MC1919-1919FS16
Click to enlarge image(s)

Champion All Aluminum Radiator
Plus Ledfoot Racing Aluminum Shroud & 16" Fan

Verify clearance for electric fan

4-Row Core; (Chevy Conversions) | Cools up to 650hp

Radiator Dimensions:
Total: 22" tall x 27" wide (with brackets)
Core: 16” tall x 24" wide x 2.75" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 3" thick
Tubes: 0.63" thick
Total Thickness: 6.5"

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare)



Compatible With
Jeep CJ Series 1970-1985 (with Chevy V8 swap)
