Landcruser FJ40 (58-80)

EC180-180FS16

EC180-180FS16

EC180-180FS16
Click to enlarge image(s)
All Aluminum Champion Radiator
Plus Ledfoot Racing Aluminum Shroud and 16" Fan
Verify clearance for electric fan
Total thickness: 5.75" to fan motor
2-Row Core | Cools up to 350hp

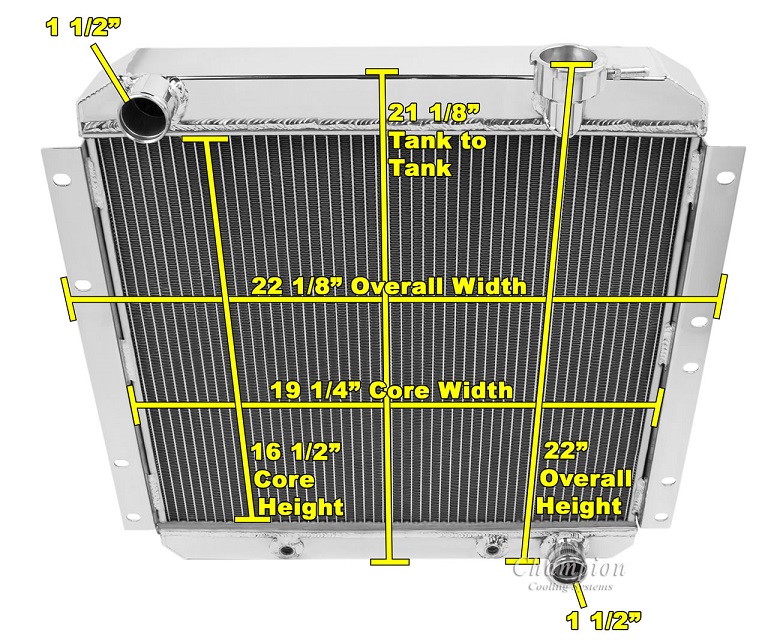

Radiator Dimensions:
Total: 22" tall x 22.13" wide
Core: 17.13" tall x 19.5" wide x 1.75" thick
Inlet: 1.5" drivers side
Outlet: 1.5" passenger side
Tanks: 2.5" thick
Tubes: 0.75" thick

Bracket Mounted
(core support not included)

13lb. Radiator Cap included
Transmission Cooler Included (1/2"-20 straight tread- G1/4)


Compatible With
Toyota Landcruiser FJ40 1958-1984 (3.9L/4.2L V6)
Toyota Landcruiser 1958-1980 (3.9L/4.2L V6)

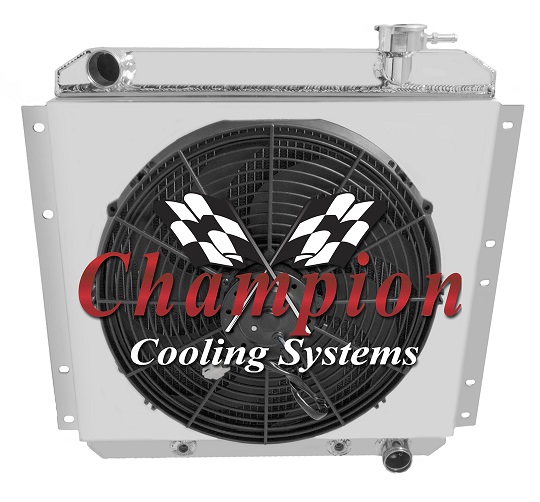

CC180-180FS16

CC180-180FS16

CC180-180FS16
Click to enlarge image(s)
All Aluminum Champion Radiator
Plus Ledfoot Racing Aluminum Shroud & 16" Fan
Verify clearance for electric fan
Total thickness: 6.25" to fan motor

3-Row Core | Cools up to 500hp

Radiator Dimensions:
Total: 22" tall x 22.13" wide
Core: 17.13" tall x 19.5" wide x 2.25" thick
Inlet: 1.5" drivers side
Outlet: 1.5" passenger side
Tanks: 2.5" thick
Tubes: 0.625" thick

Bracket Mounted
(core support not included)

Radiator Cap Included
Transmission Cooler Included (1/2"-20 straight tread- G1/4)


Compatible With
Toyota Landcruiser FJ40 1958-1984 (3.9L/4.2L V6)
Toyota Landcruiser 1958-1980 (3.9L/4.2L V6)

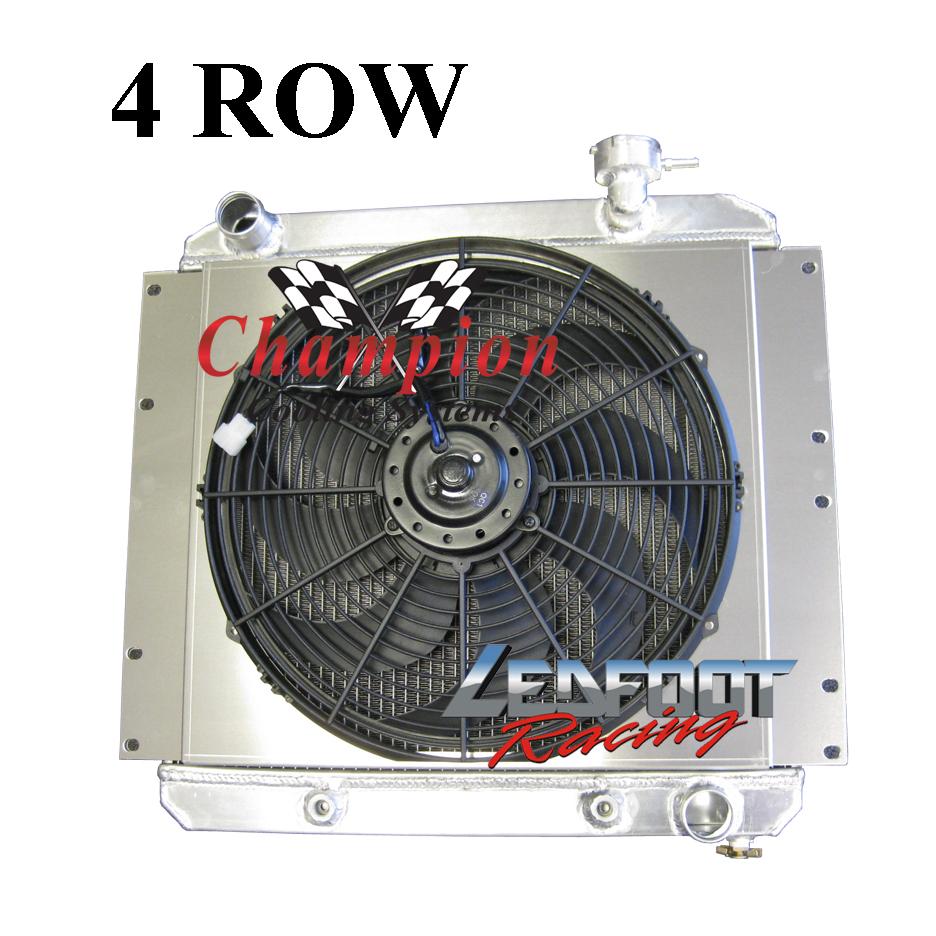

MC180-180FS16

MC180-180FS16

MC180-180FS16
Click to enlarge image(s)
All Aluminum Champion Radiator
Plus Ledfoot Racing Aluminum Shroud & 16" Fan
Verify clearance for electric fan
Total thickness: 7" to fan motor

4-Row Core | Cools up to 600hp | Polished Tanks
Due to these tanks being thicker minor mods may be needed to fit the core support.


Radiator Dimensions:
Total: 22" tall x 22.13" wide
Core: 17.13" tall x 19.5" wide x 2.75" thick
Inlet: 1.5" drivers side
Outlet: 1.5" passenger side
Tanks: 3.125" thick
Tubes: 0.625" thick

Bracket Mounted
(core support not included)

13 lb. Radiator Cap included
Transmission Cooler Included (1/2"-20 straight tread- G1/4)


Compatible With
Toyota Landcruiser FJ40 1958-1984 (3.9L/4.2L V6)
Toyota Landcruiser 1958-1980 (3.9L/4.2L V6)
