Dodge D/W series V8 radiators

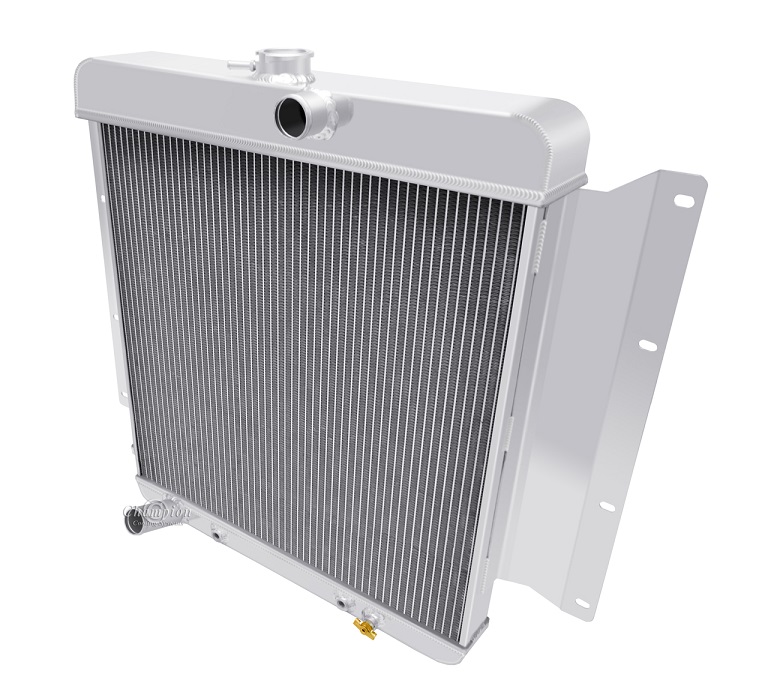

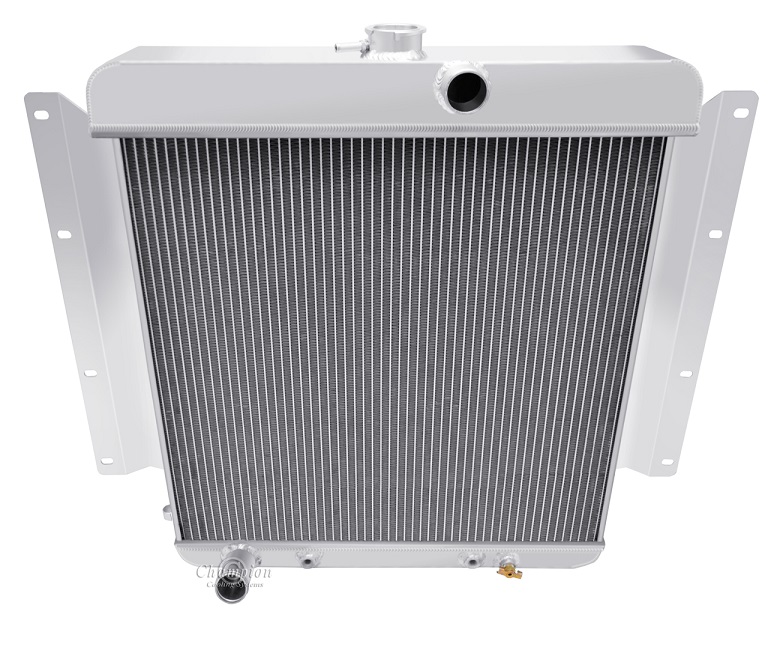

EC6169

EC6169

EC6169
Click to enlarge image(s)
The radiator brackets are on the grill face, if you
need them on the engine please call for
a modification quote.

Champion All Aluminum Radiator

2-Row Core | Cools up to 450hp

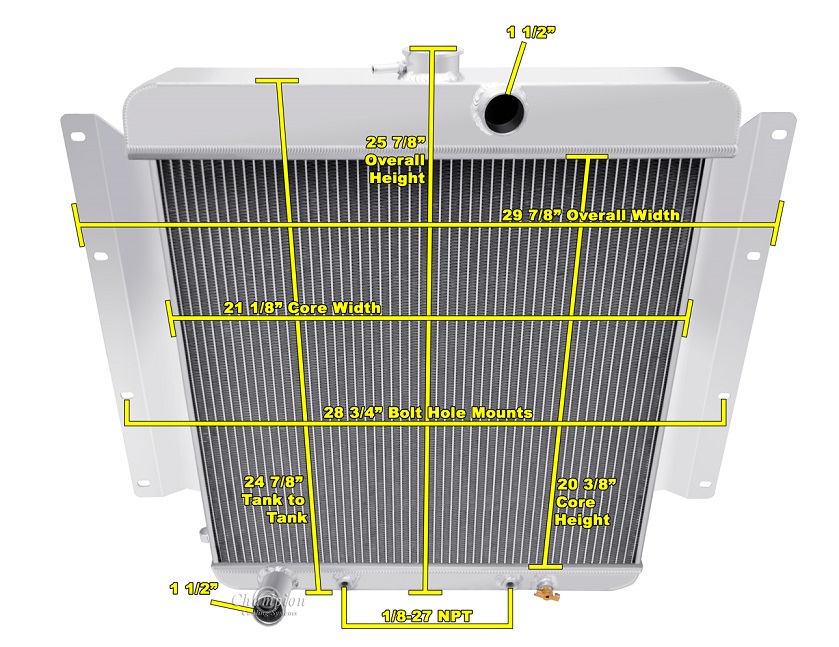

Radiator Dimensions:
Total: 25.875" tall (26.38" with cap) x 29.875" wide (with brackets)
Core: 20.375" tall x 21.13" wide x 2.5" thick
Inlet: 1.5" center
Outlet: 1.5" driver side
Tanks: 2.5" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/8-27NPT)

When using electric fans:
One 16" Electric fan recommended for this core size (sold separetely)


Compatible With
1961 - 1967 Dodge D100 Series (5.2L V8)
1968 - 1969 Dodge D100 Pickup (5.2L V8)
CC6169

CC6169

CC6169
Click to enlarge image(s)
The radiator brackets are on the grill side, if you
need them on the engine side please call for
a modification quote.

8 Cyl ONLY
Champion All Aluminum Radiator

3-Row Core | Cools up to 600hp


Radiator Dimensions:
Total: 25.875" tall (26.38" with cap) x 29.875" wide (with brackets)
Core: 20.375" tall x 21.13" wide x 2.5" thick
Inlet: 1.5" center
Outlet: 1.5" driver side
Tanks: 2.5" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/8-27NPT)

When using electric fans:
One 16" Electric fan recommended for this core size (sold separetely)


Compatible With
1961 - 1967 Dodge D100 Series (5.2L V8)
1968 - 1969 Dodge D100 Pickup (5.2L V8)
