Continental Radiator (61-65)


Click to enlarge image(s)

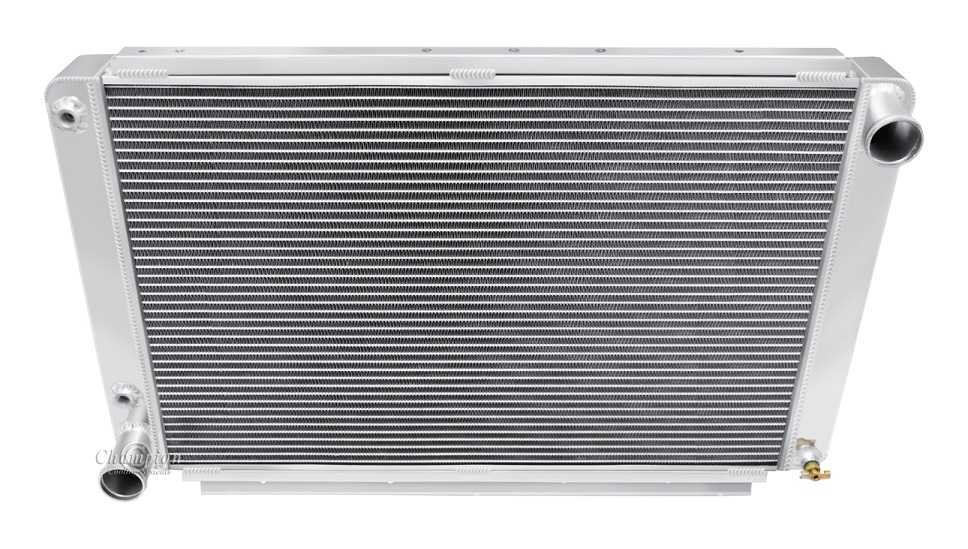

All Aluminum Champion Radiator
3-Row Core | Cools up to 700hp
Note: 1961 version had the tranny cooler on the passenger side
(hot side) this poor design was fixed the following year. This
radiator is very close to the 66-67 Continental radiator which is
an inch or so taller and 1" less wide

Radiator Dimensions:
Total: 20.13" tall x 30.13" wide
Core: 17.25" tall x 25.75” wide x 2.25" thick
Inlet: 1.75" passenger side
Outlet: 1.75" driver side
Tanks: 2.5" thick
Tubes: 0.63" thick

Saddle Mounted

Transmission Cooler included (1/4-18NPT)
Aluminum Shroud is also Available (sold separately)

When using electric fans:
Two 12" SPAL Electric fans recommended for this core size (sold separately)

Compatible With
Lincoln Continental 1961-1965 (7.0L/430CI V8)
