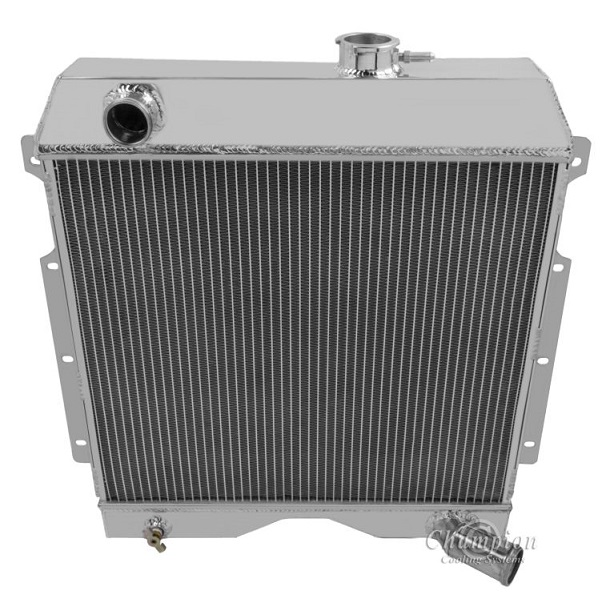

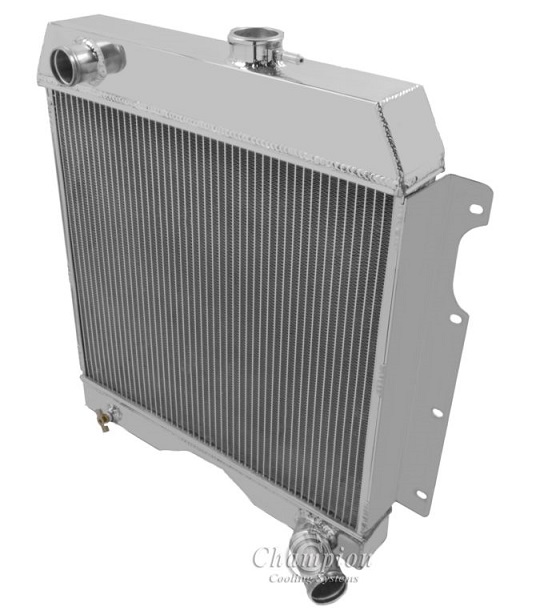

Willys Truck and Wagon Champion Radiator (54-64)



Click to enlarge image(s)
All Aluminum Champion Radiator
3-Row Core | Cools up to 450hp
Please confirm your outlet position

Radiator Dimensions:
Total: 22.63" tall (with cap) x 22.38" (including brackets)
Core: 16.5" tall x 18.5" wide x 2" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 3" thick
Tubes: 0.63"

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler NOT Included

When using electric fans:
One 16" Electric fan recommended for this core size (sold separately)

Compatible With
Willy's Truck and Wagon 1954-1964
