(68-79) F-Series Truck Radiator

This is the 24.38" tall core, please refer to the
68-79 Ford Truck page for the 19.38" tall cores
EC480

EC480

EC480
Click to enlarge image(s)
This E-bracket is set slightly towards the engine face
77-79 w/460 had bracket on grill face, see SKU#CC545

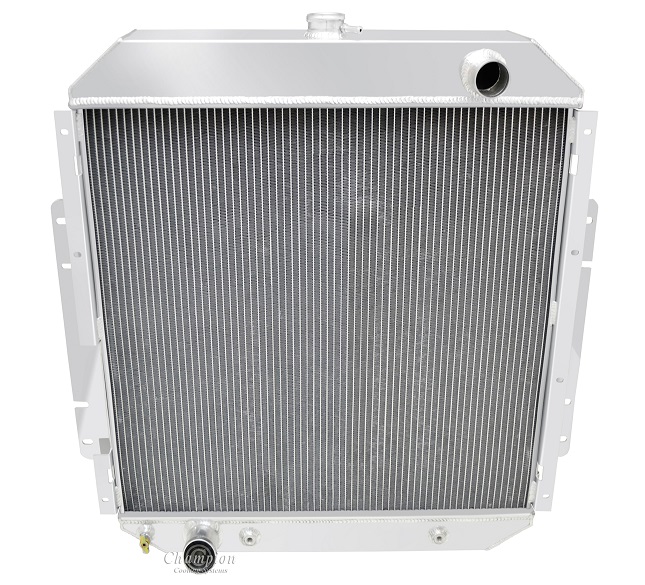

Champion All Aluminum Radiator
2-Row Core | Cools up to 700hp

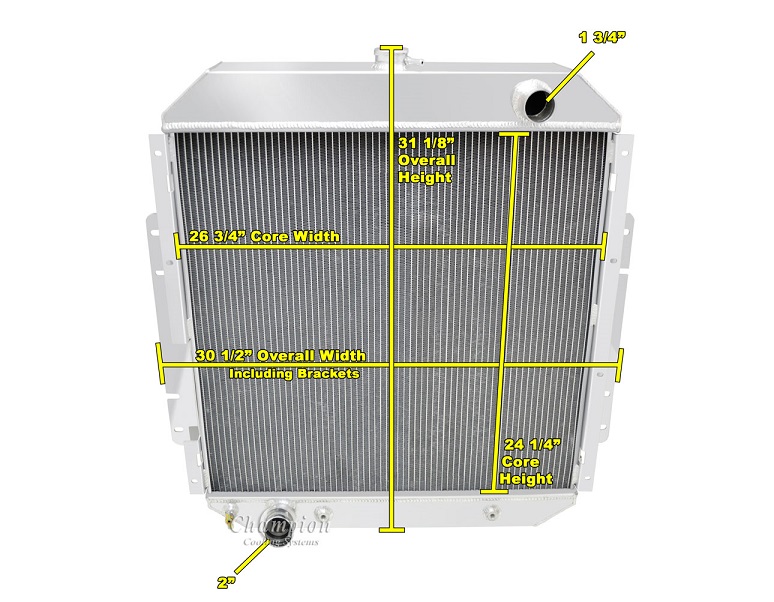

Radiator Dimensions:
Total: 31.13" tall x 30.5" wide (with brackets)
Core: 24.25" tall x 26.38" wide x 1.75" thick
Inlet: 1.75" passenger side
Outlet: 2" driver side
Tanks: 4" thick
Tubes: 0.75" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/8-27NPT)



CC480

CC480

CC480
Click to enlarge image(s)
This E-bracket is set slightly towards the engine face
77-79 w/460 had bracket on grill face, see SKU#CC545

Champion All Aluminum Radiator
3-Row Core | Cools up to 700hp

Radiator Dimensions:
Total: 31.13" tall x 30.5" wide (with brackets)
Core: 24.25" tall x 26.38" wide x 2.25" thick
Inlet: 1.75" passenger side
Outlet: 2" driver side
Tanks: 4" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/8-27NPT)



MC480

MC480

MC480
Click to enlarge image(s)
This E-bracket is set slightly towards the engine face
77-79 w/460 had bracket on grill face, see SKU#CC545


Champion All Aluminum Radiator
4-Row Core | Cools up to 800hp

Radiator Dimensions:
Total: 31.13" tall x 30.5" wide (with brackets)
Core: 24.25" tall x 26.38" wide x 2.75" thick
Inlet: 1.75" passenger side
Outlet: 2" driver side
Tanks: 4" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap Included
Transmission Cooler included (1/8-27NPT)
Aluminum Fan Shroud is also available (sold separately)
