Chevy Truck (63-66)
CC284-LS

CC284-LS

CC284-LS
Click to enlarge image(s)

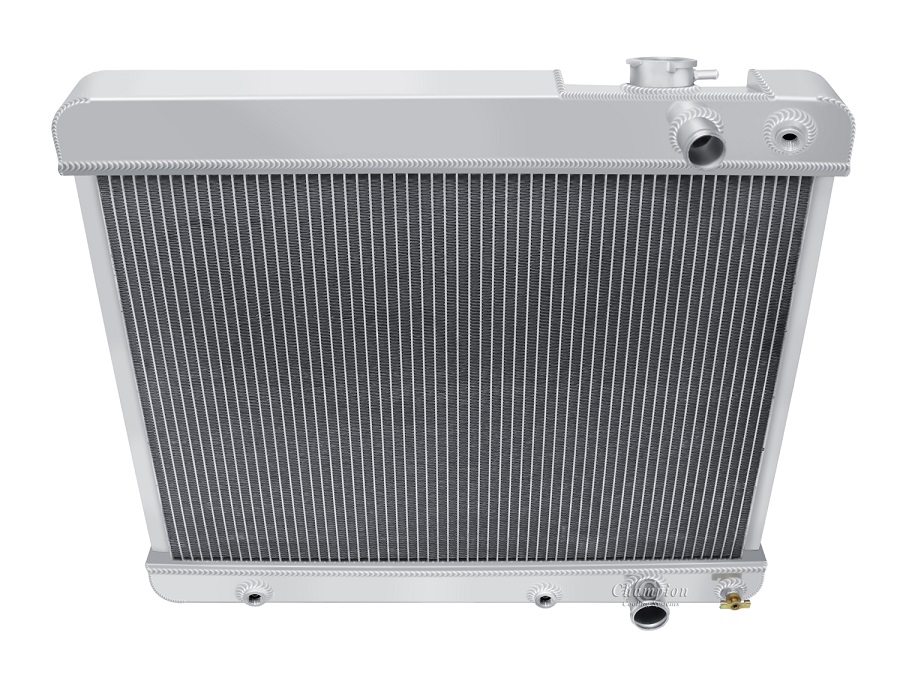

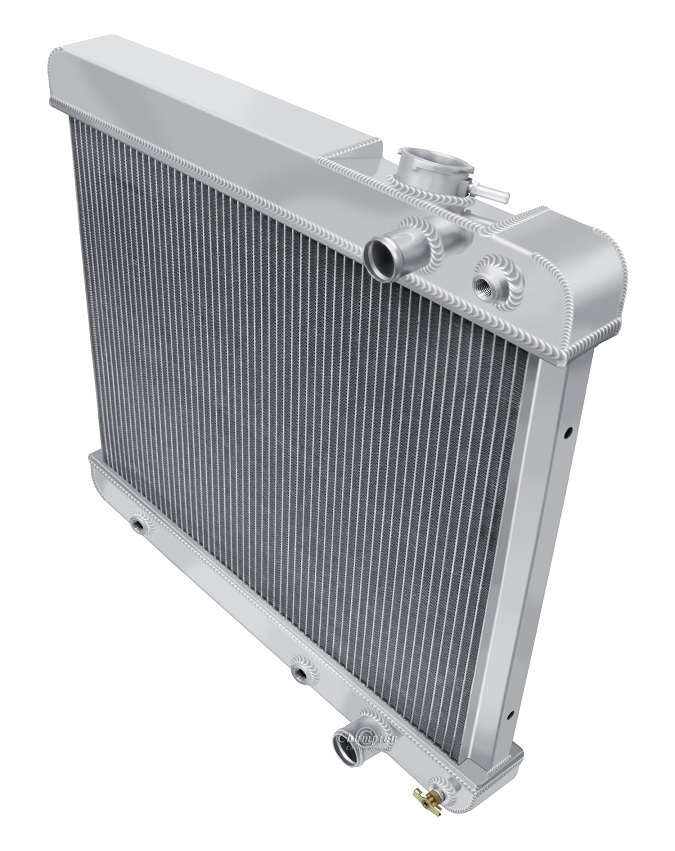

Champion All Aluminum Radiator
3-Row Core | Cools up to 600hp

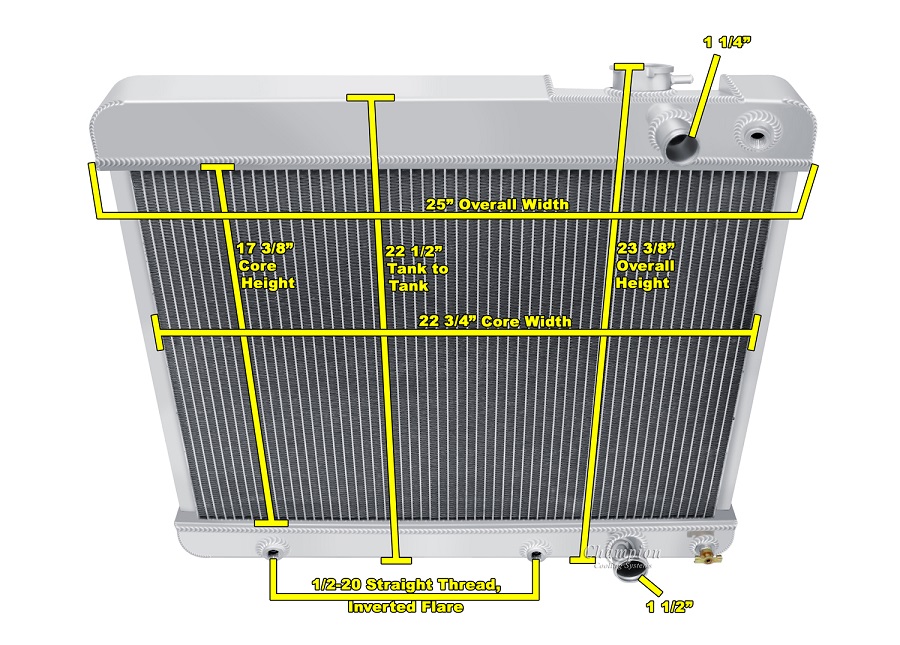

Radiator Dimensions:
Total: 22.5" tall (23.5" with cap) x 25.25" wide
Core: 17.38" tall x 22.75" wide x 2" thick
Inlet: 1.25" passenger side
Outlet: 1.5" passenger side
Tanks: 2.75" thick (top) / 2.38" thick (bottom)
Tubes: 0.63" thick

Saddle Mounted

Steam port included
13lb. Radiator Cap Included
Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare )
Aluminum Shroud is also Available ( sold separately)

When using electric fans:
Two 11" Electric fans or one 16" fan recommended for this core size (sold separately)



Compatible With
Chevrolet/GMC C/K Series 1963-1966 (283ci V8 and 350ci V8)
Oldsmobile Cutlass 1965-1966
Oldsmobile "88"/Dynamic 1961-1962
Oldsmobile F85 1964-1965
Pontiac Bonneville 1961-1962 (389ci V8)
Pontiac Bonneville 1963-1966 (389ci V8, 421ci V8)
Pontiac Catalina 1961-1962 (389ci V8)
Pontiac Catalina 1964 (398ci V8, 421ci V8)
Pontiac Grand Prix 1962 (398ci V8)
Pontiac Grand Prix 1963-1964 (389ci V, 421ci V8)8
CC284-LS-284FS16

CC284-LS-284FS16

CC284-LS-284FS16
Click to enlarge image(s)

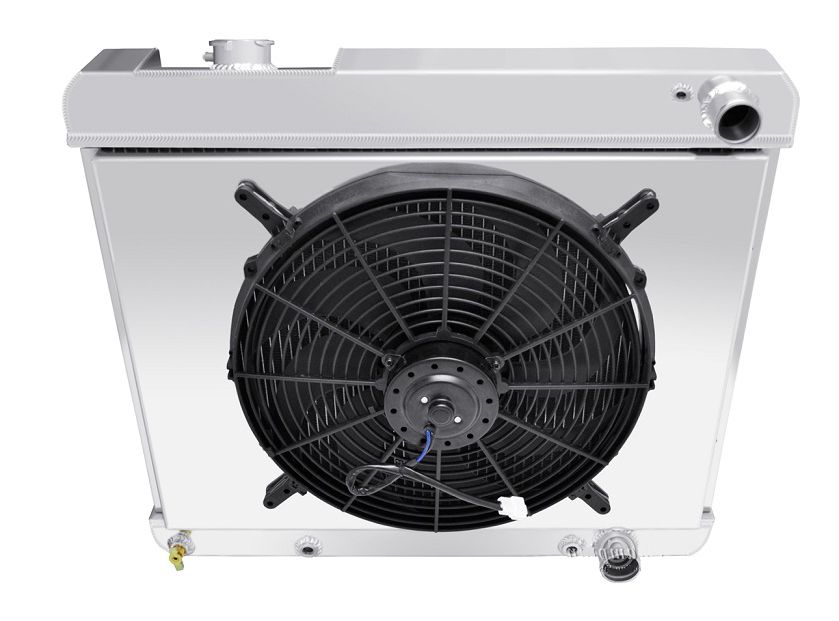

Champion All Aluminum LS Radiator
Plus Ledfoot Racing Aluminum Shroud & 16" Fan
Verify clearance for electric fan
Total thickness: 6.5" to fan motor

3-Row Core | Cools up to 600hp

Radiator Dimensions:
Total: 22.5" tall (23.5" with cap) x 25.25" wide
Core: 17.38" tall x 22.75" wide x 2" thick
Inlet: 1.25" drivers side
Outlet: 1.5" passenger side
Tanks: 2.75" thick (top) / 2.38" thick (bottom)
Tubes: 0.63" thick

Saddle Mounted

13lb. Radiator Cap Included
Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flair)
Steam Port Included with barbed adaptor or allen plug



Compatible With
Chevy C/K Series 1963-1966 (283ci V8)
Oldsmobile Cutlass 1965-1966
Oldsmobile "88"/Dynamic 1961-1962
Oldsmobile F85 1964-1965
Pontiac Bonneville 1961-1962 (389ci V8)
Pontiac Bonneville 1963-1966 (389ci V8, 421ci V8)
Pontiac Catalina 1961-1962 (389ci V8)
Pontiac Catalina 1964 (398ci V8, 421ci V8)
Pontiac Grand Prix 1962 (398ci V8)
Pontiac Grand Prix 1963-1964 (389ci V, 421ci V8)8
