CC3032B-3032FS16

CC3032B-3032FS16

CC3032B-3032FS16
Click to enlarge image(s)

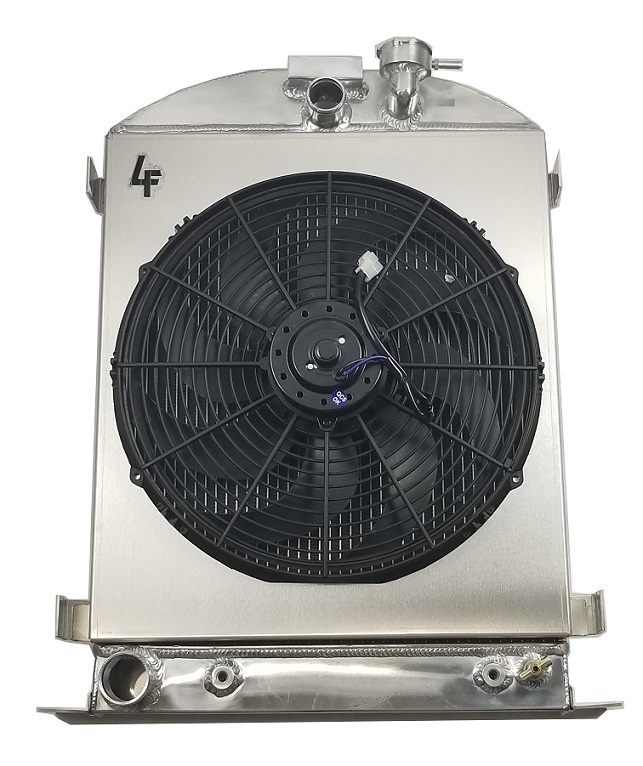

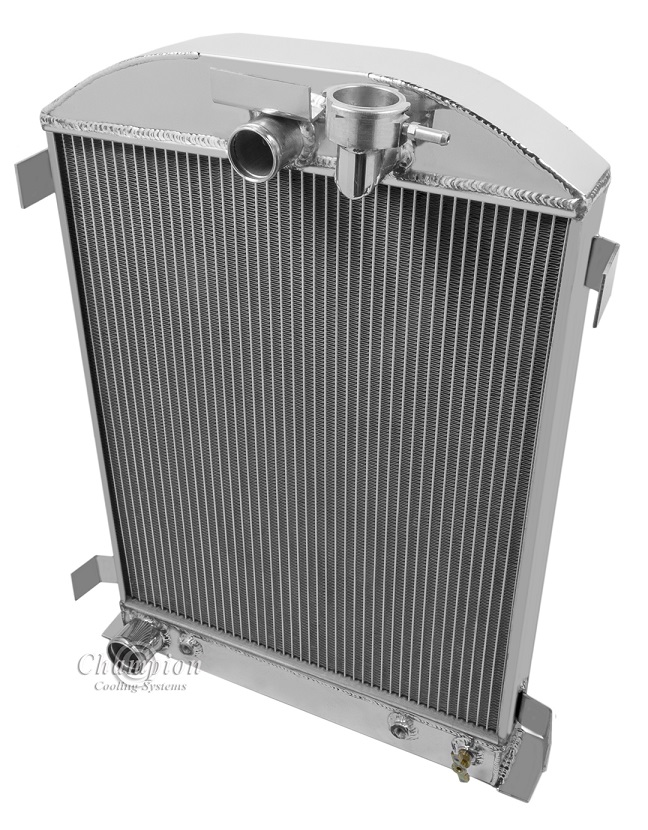

All Aluminum Champion Radiator PLUS
Ledfoot Racing Shroud and 16" Fan

Verify clearance for electric fan
Total thickness: 6.5" to fan motor

3-Row Core | Cools up to 850hp

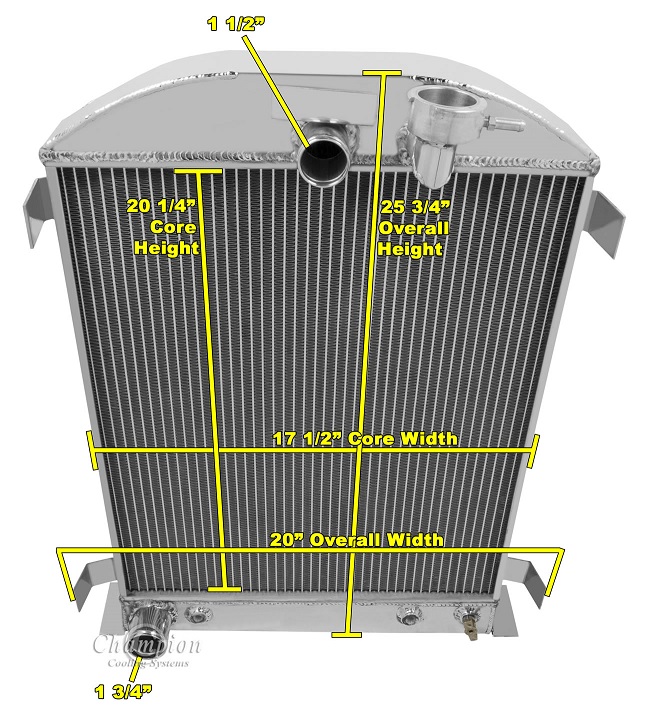

Radiator Dimensions:
Total: 19.75" wide (lower bracket) x 25.5" tall
Core: 17.25" wide x 20" tall x 2.5" thick
Inlet: 1.5" center
Outlet: 1.75" driver side
Tanks: 3" thick
Tubes: 0.75" thick

Bracket Mounted

Radiator Cap Included
Transmission Cooler Included (1/8-27 NPT)




Compatible With
Ford High Boy 1932
CC3132B-3132FS16

CC3132B-3132FS16

CC3132B-3132FS16
Click to enlarge image(s)

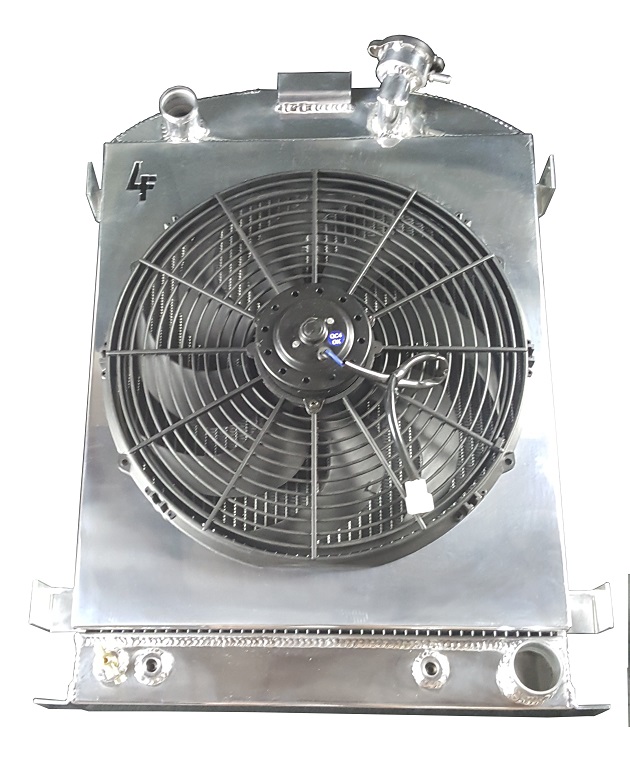

All Aluminum Champion Radiator
Plus Ledfoot Racing Shroud & 16" Pro-Series Fan
Verify clearance for electric fan
Total thickness: 6.5" to fan motor

3-Row Core | Cools up to 850hp

Radiator Dimensions:
Total: 19.75" wide (lower bracket) x 26.5" tall
Core: 17.25" wide x 20" tall x 2.5" thick
Inlet: 1.5" driver
Outlet: 1.75" passenger side
Tanks: 3" thick
Tubes: 0.75" thick

Bracket Mounted

Radiator Cap Included
Transmission Cooler Included (1/2"-20 STRAIGHT THREAD)


Compatible With
Ford High Boy 1932 (Chevrolet configuration)
