A100 Van / Truck (64-70)


Click to enlarge image(s)

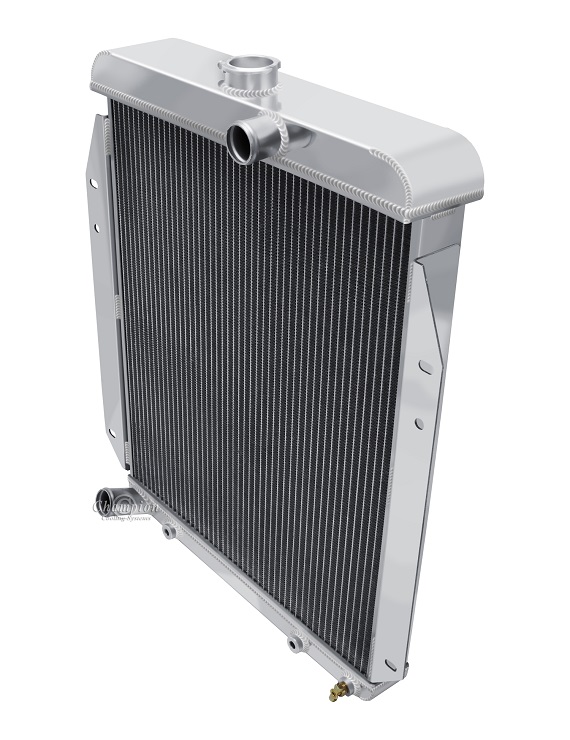

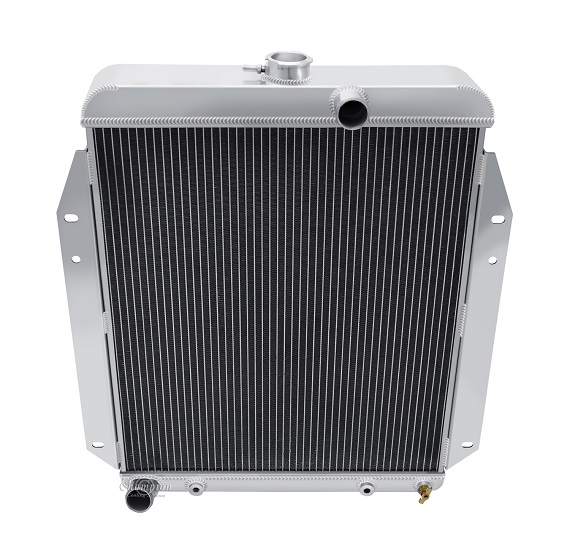

All Aluminum Champion Radiator
3-Row Core | Cools up to 500hp

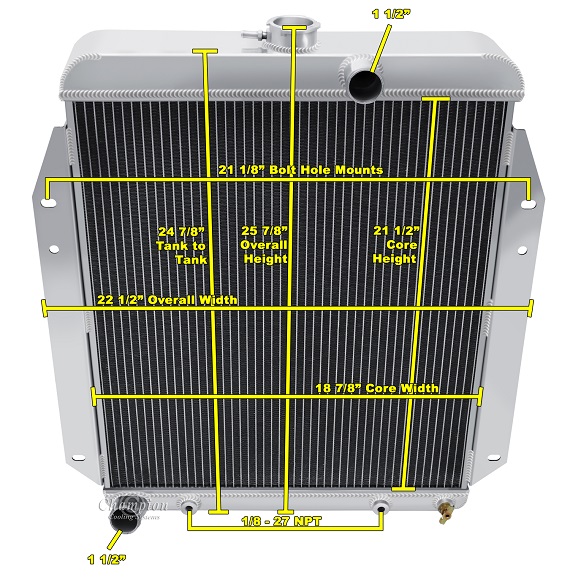

Radiator Dimensions:
25.87" tall (with cap) x 22.5" wide (with brackets)
Core: 21.5" tall x 19" wide x 2" thick
Inlet: 1.5" passenger side off-center
Outlet: 1.5" driver
Tank Thickness: 3.75" Top Tank, 2.38" Lower Tank
Tubes: 0.63" thick

Bracket Mounted (Engine side Brackets)

13 lb. Radiator Cap included
Transmission Cooler included (1/8" 27npt)

When using electric fans:
One 16" Electric fan recommended for this core size (sold separately)

Compatible With
64-70 Dodge A100 Van 4.5L 273ci V8, 5.2L 318ci V8
64-70 Dodge A100 Truck 4.5L 273ci V8, 5.2L 318ci V8
