CC64TB

CC64TB

CC64TB
Click to enlarge image(s)

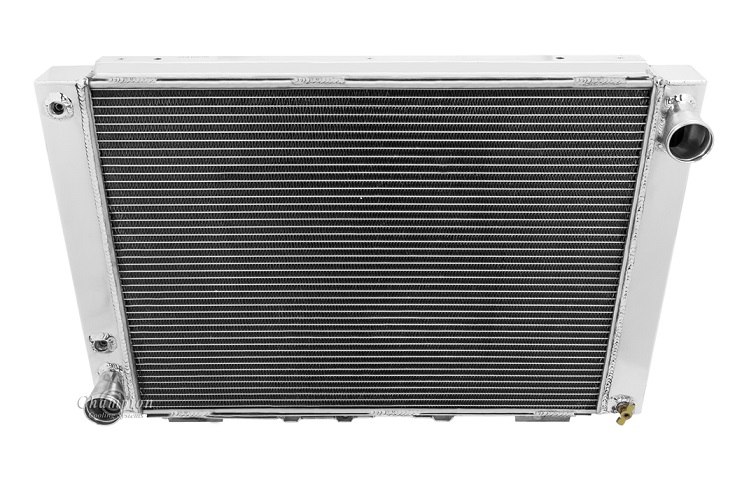

Champion All Aluminum Radiator
3-Row Core; For the FE Engines | Cools up to 600hp
Note: There were two radiators for the 1966 T-Bird
please check your top plate


Radiator Dimensions:
Total: 21" x 27.75" wide
Core: 17.5" tall x 23.25" wide x 2.25" thick
Inlet: 1.75" passenger
Outlet: 1.75" driver
Tanks: 2.75" thick
Tubes: 0.63" thick

Saddle Mounted

Transmission Cooler included (1/4" - 18 npt)

When using electric fans:
One 16"  fan recommended for this core size (sold separately)



Compatible With
Ford Thunderbird 1964-1966 (All FE Big Block Engines)
MC64TB

MC64TB

MC64TB
Click to enlarge image(s)

Champion All Aluminum Radiator
4-Row Core; For the FE Engines | Cools up to 700hp
Note: There were two radiators for the 1966 T-Bird
please check your top plate


Radiator Dimensions:
Total: 21" x 27.75" wide
Core: 17.5" tall x 23.25" wide x 2.75" thick
Inlet: 1.75" passenger
Outlet: 1.75" driver
Tanks: 3.13" thick
Tubes: 0.63" thick

Saddle Mounted

Transmission Cooler included (1/4" npt)

When using electric fans:
One 16"  fan recommended for this core size (sold separately)



Compatible With
Ford Thunderbird 1964-1966 (All FE Big Block Engines)
