Valiant (70-72) 22" Small Block Radiator

Scroll down for additional options

This is the 22" Core radiator call if you need the 26" Core.
Please note your inlet and outlet positions.
Call if you have any questions.


No OEM Shroud support

CC526B-526FS16SP

CC526B-526FS16SP

CC526B-526FS16SP
Click to enlarge image(s)

Champion All Aluminum Radiator
Ledfoot Racing Shroud and SPAL 16" Medium Profile Fan

Verify clearance for electric fan
Total thickness: 6.25" to fan motor

3-Row Core | Cools up to 600hp

Radiator Dimensions:
Total: 22.88" tall x 25" wide (with brackets)
Core: 17" tall x 22.5" wide x 2.5" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick
Total Thickness: 6.25" to back of fan

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler included: (1/8-27NPT)



CC526B-526FS10SP

CC526B-526FS10SP

CC526B-526FS10SP
Click to enlarge image(s)

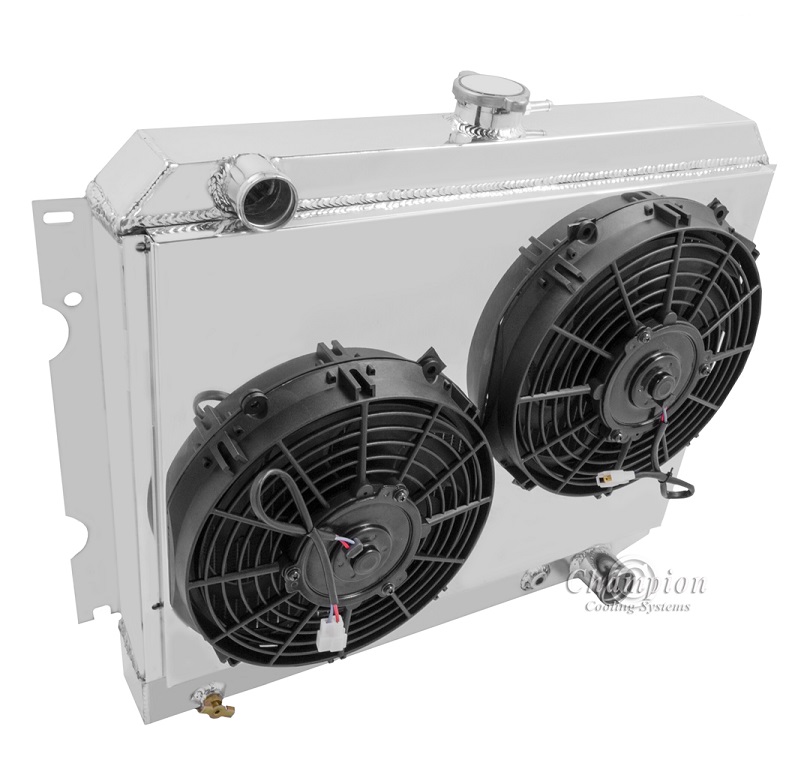

Champion All Aluminum Radiator
Ledfoot Racing Shroud and (2) 10" SPAL Electric Fans

Verify clearance for electric fans
3-Row Core | Cools up to 600hp

Radiator Dimensions:
Total: 22.88" tall x 25" wide (with brackets)
Core: 17" tall x 22.5" wide x 2.5" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick
Total Thickness: 6.25" to back of fans (5.25" between fans)

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler included: (1/8-27NPT)



MC526-526FS16SP

MC526-526FS16SP

MC526-526FS16SP
Click to enlarge image(s)

Champion All Aluminum Radiator
Ledfoot Racing Shroud and SPAL 16" Medium Profile Fan

Please confirm you have room for the overall thickness
4-Row Core | Cools up to 650hp

Radiator Dimensions:
Total: 22.88" tall x 25" wide (with brackets)
Core: 17" tall x 22.5" wide x 2.75" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 3" thick
Tubes: 0.63" thick
Total Thickness: 6.5" to back of fan

Bracket Mounted

13 lb. Radiator Cap Included
Transmission Cooler included: (1/8-27NPT)
