Corvette (77-83)

Scroll down for more options
EC718-718FS16

EC718-718FS16

EC718-718FS16
Click to enlarge image(s)

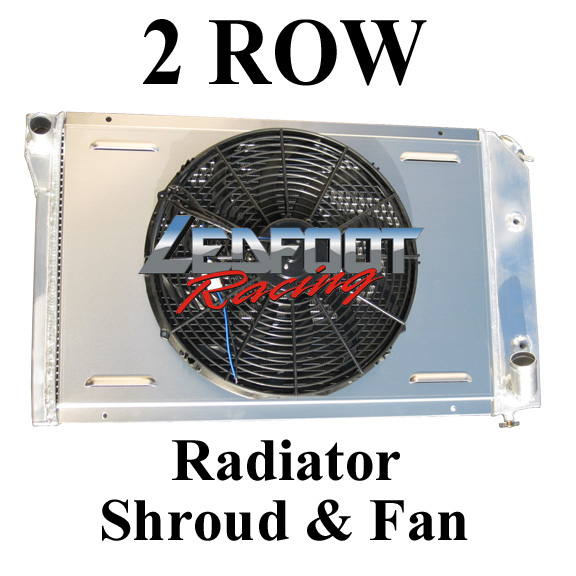

Champion All Aluminum Radiator
Plus Ledfoot Racing Custom Shroud and 16" Fan
Verify clearance for electric fan
Total thickness: 5.75" to fan motor
2-Row Core | Cools up to 450hp

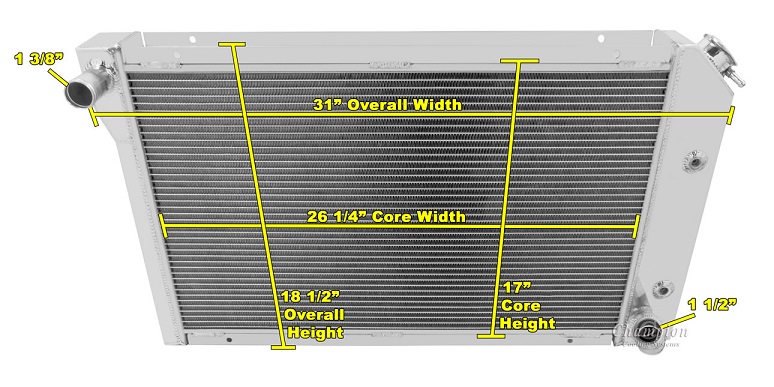

Radiator Dimensions:
Total: 18.75" tall x 32.5" wide
Core: 17" tall x 26.25" wide x 1.75" thick
Inlet: 1.38" driver side
Outlet: 1.5" passenger side
Tanks: 2.5" thick
Tubes: 0.75" thick

13lb. Radiator Cap included
Transmission Cooler included (1/2"- 20 STRAIGHT THREAD)

Saddle mounted


CC718-718FS16

CC718-718FS16

CC718-718FS16
Click to enlarge image(s)
Champion All Aluminum Radiator
Plus Ledfoot Racing Aluminum Shroud & 16" Fan
Verify clearance for electric fan
Total thickness: 6.5" to fan motor

3-Row Core | Cools 750hp

Radiator Dimensions:
Total: 19" tall x 32.5" wide
Core: 17" tall x 26.25" wide x 2.5" thick
Inlet: 1.31" driver side
Outlet: 1.56" passenger side
Tanks: 2.75" thck
Tubes: 0.75" thick

Saddle mounted

13 lb. Radiator Cap included
Transmission Cooler Included (1/2"- 20 STRAIGHT THREAD)


MC718-718FS16

MC718-718FS16

MC718-718FS16
Click to enlarge image(s)

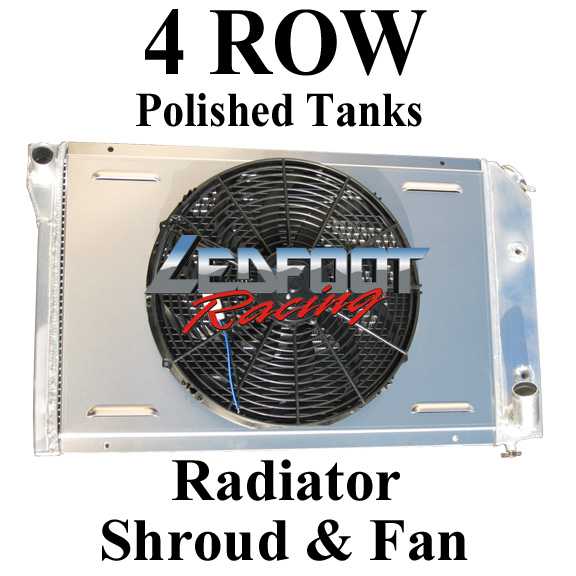

Champion All Aluminum Radiator
Plus Ledfoot Racing Aluminum Shroud & 16" Fan
Verify clearance for electric fan
Total thickness: 7" to fan motor

4-Row Core | Cools 800hp
Replaces the original 4-Row, check your tank thickness

MC718 Radiator Dimensions:
Total: 18.75 tall x 32.25" wide
Core: 17" tall x 26.25" wide x 2.75" thick
Inlet: 1.38" driver side
Outlet: 1.5" passenger side
Tanks: 3.25" thick
Tubes: 0.63" thick

Saddle mounted

13 lb. Radiator Cap Included
Includes Transmission Cooler (1/2-20 Straight Thread, Inverted Flare)


EC718-718FS12SP

EC718-718FS12SP

EC718-718FS12SP
Click to enlarge image(s)

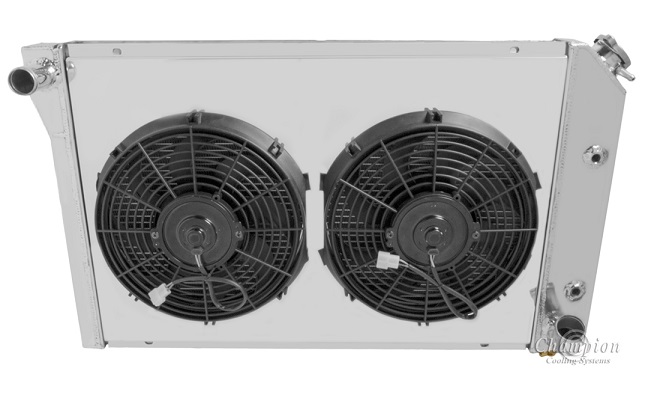

Champion All Aluminum Radiator
Plus Ledfoot Racing Aluminum Shroud & 2- 12" SPAL -1522 Fans
2-Row Core | Cools 450hp

Radiator Dimensions:
Total: 19" tall x 32.5" wide
Core: 17" tall x 26.25" wide x 2.5" thick
Inlet: 1.31" driver side
Outlet: 1.56" passenger side
Tanks: 2.75" thck
Tubes: 0.75" thick

Saddle mounted

13 lb. Radiator Cap included
Transmission Cooler Included (1/2"- 20 STRAIGHT THREAD)


CC718-718FS12SP

CC718-718FS12SP

CC718-718FS12SP
Click to enlarge image(s)
Champion All Aluminum Radiator
Plus Ledfoot Racing Aluminum Shroud & 2- 12" SPAL -1522 Fans
3-Row Core | Cools 750hp

Radiator Dimensions:
Total: 19" tall x 32.5" wide
Core: 17" tall x 26.25" wide x 2.5" thick
Inlet: 1.31" driver side
Outlet: 1.56" passenger side
Tanks: 2.75" thck
Tubes: 0.75" thick

Saddle mounted

13 lb. Radiator Cap included
Transmission Cooler Included (1/2"- 20 STRAIGHT THREAD)


MC718-718FS12SP

MC718-718FS12SP

MC718-718FS12SP
Click to enlarge image(s)
Champion All Aluminum Radiator Plus
Ledfoot Racing Aluminum Shroud
 & 2- 12" SPAL -1522 Fans
4-Row Core | Cools 850hp

Radiator Dimensions:
Total: 19" tall x 32.5" wide
Core: 17" tall x 26.25" wide x 2.5" thick
Inlet: 1.31" driver side
Outlet: 1.56" passenger side
Tanks: 2.75" thck
Tubes: 0.63" thick

Saddle mounted

13 lb. Radiator Cap included
Transmission Cooler Included (1/2"- 20 STRAIGHT THREAD)
