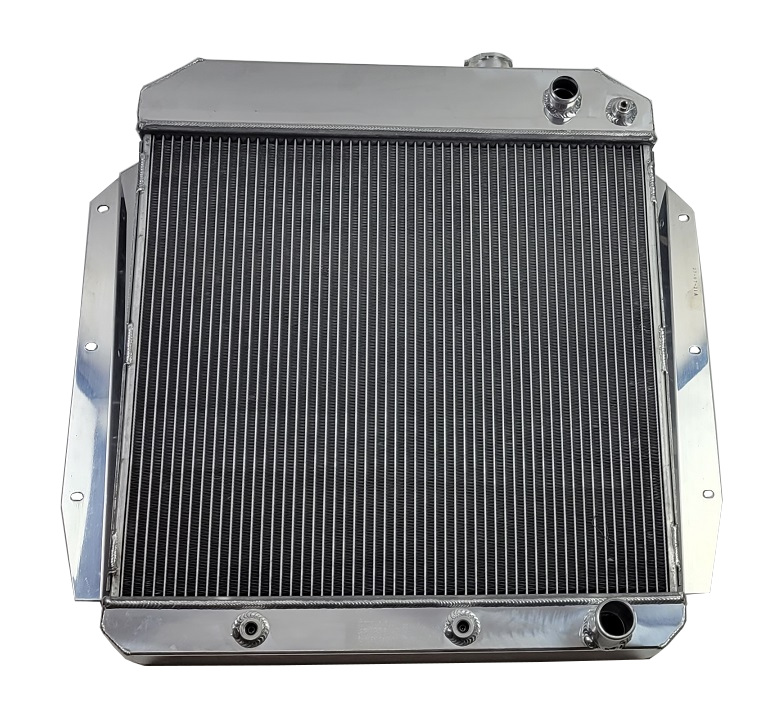

Champion All Aluminum Radiator
Designed to work with a Modern LS engine

3-Row Core | Cools up to 700hp

Radiator Dimensions:
Total: 26.75" tall (with cap) x 26.5" wide (with brackets)
Core: 19.38" tall x 21.75" wide x 2" thick
Inlet: 1.25" Passenger side
Outlet: 1.5" Passenger side
Tanks 2.5" thick
Tubes: 0.63" thick
Steam Port: Included in upper tank

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler Included (1/2"-20 Straight Thread, Inverted Flare)
Aluminum shroud also available (sold separately)

When using electric fans:
One 16" fan recommended for this core size (sold separately)



Compatible With
Chevrolet/GMC Truck 1955-1959
