Ford Truck radiators (40-41)

Some of the 1940 Trucks use a shorter radiator. Please check your height.
Use the 1939-1941 Ford Car Radiators if you need one 2" shorter.
Scroll down for different hose configurations

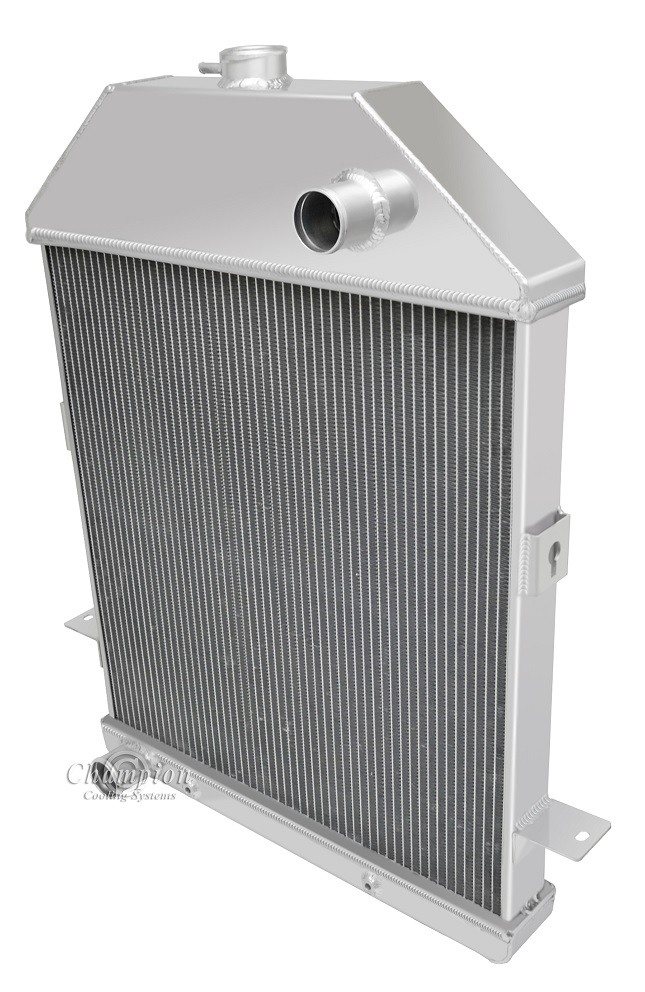

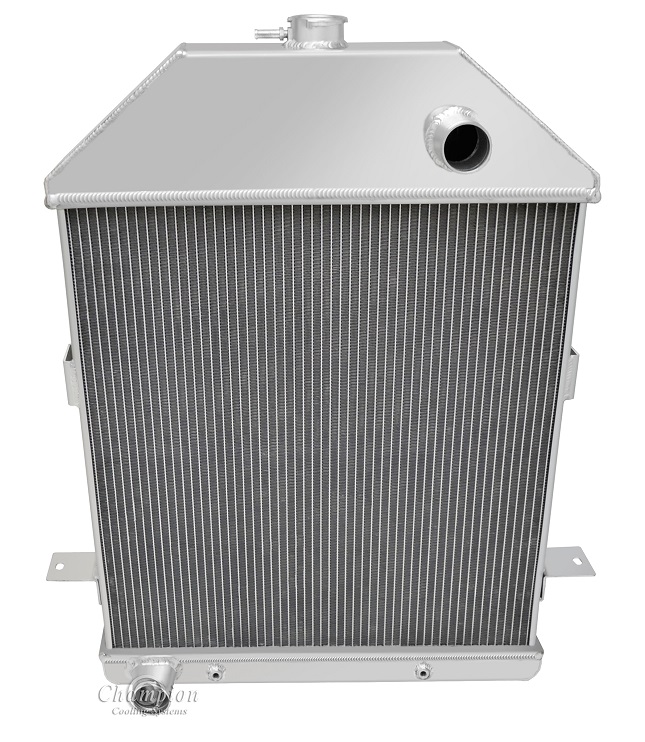

CC41FD

CC41FD

CC41FD
Click to enlarge image(s)
All Aluminum Champion Radiator
3-Row Core | Cools up to 600hp

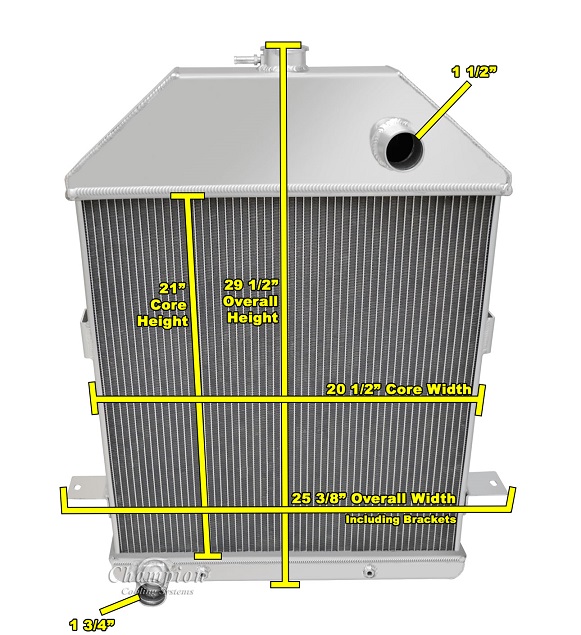

Radiator Dimensions:
Total: 29.5" tall x 25.38" wide (lower bracket)
Core: 21" tall x 20.5" wide x 2" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 3" thick
Tubes: 0.63" thick

Flange Mounted

13lb. Radiator Cap included
Transmission Cooler included (1/8" -27 NPT)

When using electric fans:
One 16" fan recommended for this core size


Compatible With
Ford Truck 1941 (Ford Motors)

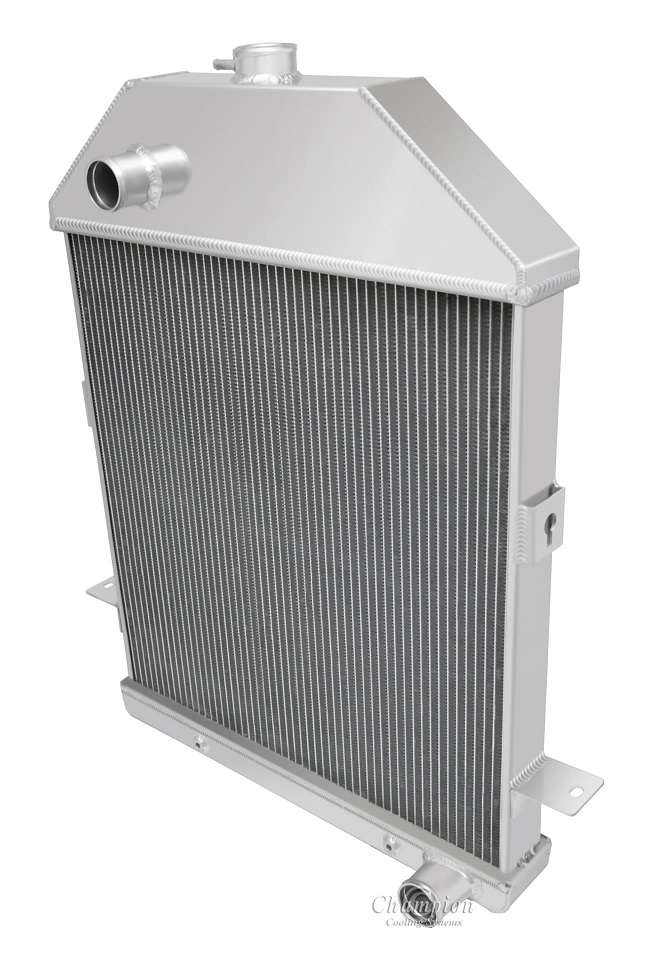

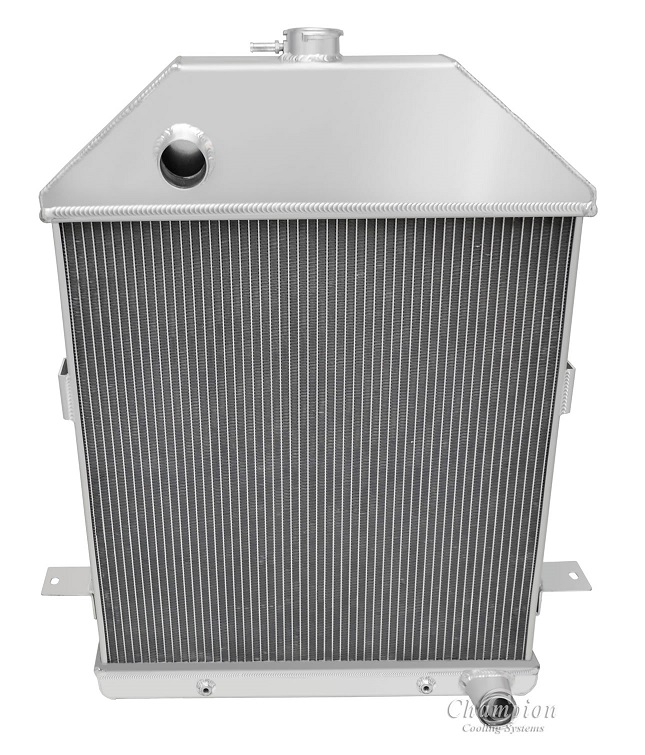

CC41CH

CC41CH

CC41CH
Click to enlarge image(s)
All Aluminum Champion Radiator
3-Row Core | Cools up to 600hp
For Chevy Engines

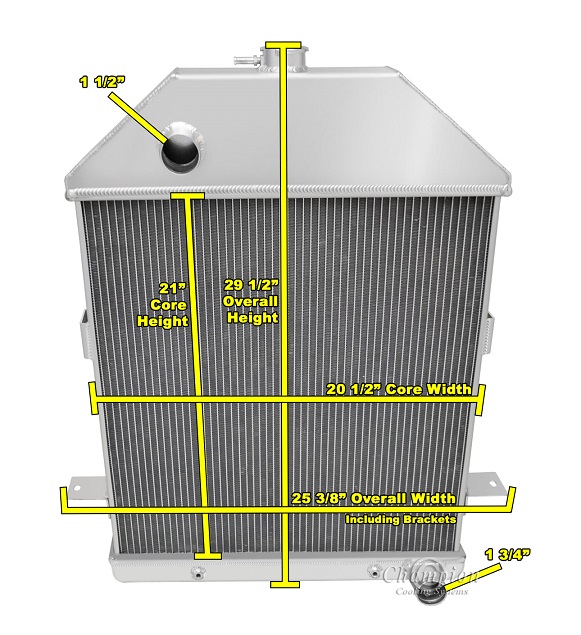

Radiator Dimensions:
Total: 29.5" tall x 25.38" wide (lower bracket)
Core: 21" tall x 20.5" wide x 2" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 3" thick
Tubes: 0.63" thick

Flange Mounted

13lb. Radiator Cap included
Transmission Cooler included ( 1/2-20 Straight Thread, Inverted Flare)

When using electric fans:
One 16" fan recommended for this core size


Compatible With
Ford Truck 1941 (Chevrolet Conversion)

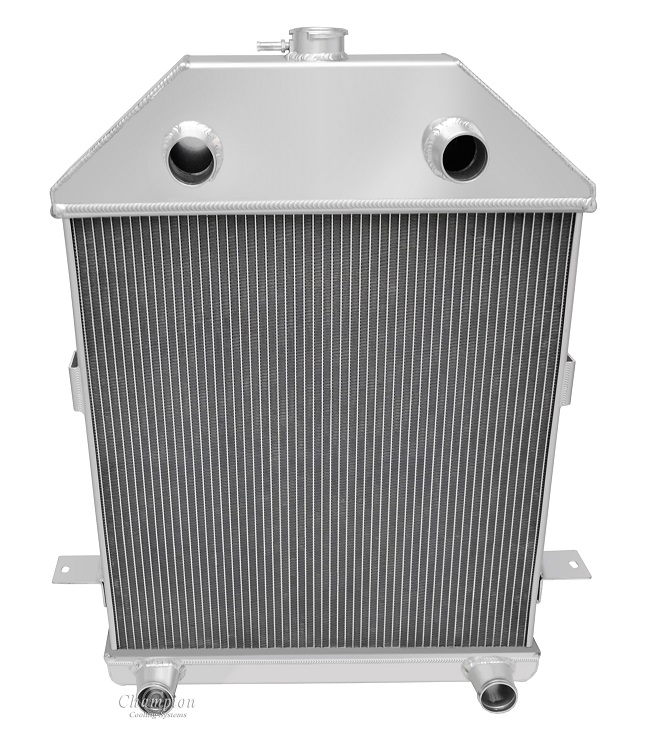

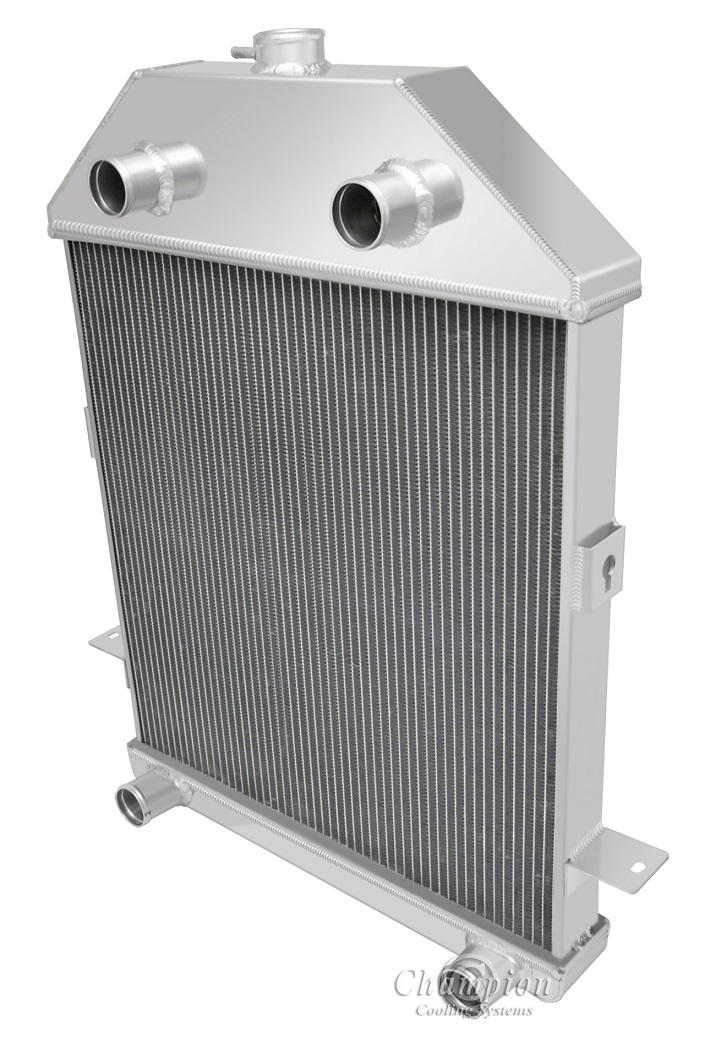

CC41FH

CC41FH

CC41FH
Click to enlarge image(s)
All Aluminum Champion Radiator
3-Row Core | Cools up to 600hp

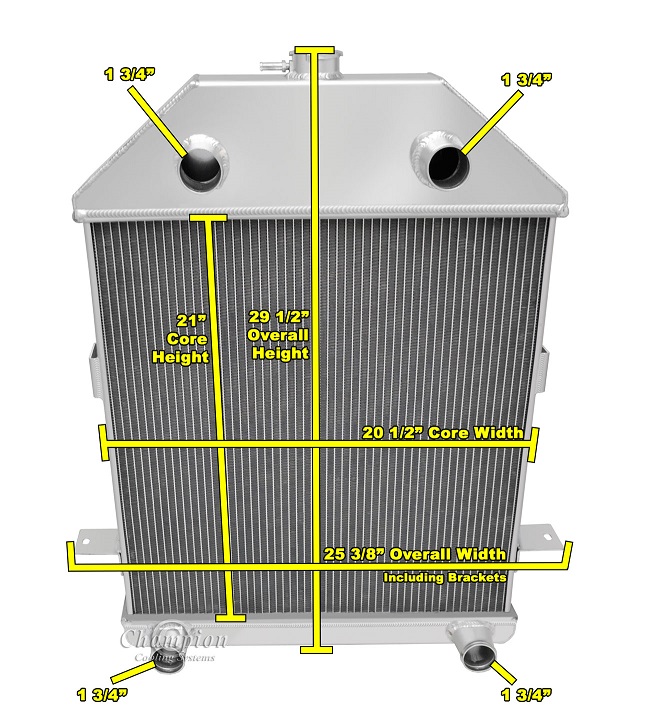

Radiator Dimensions:
Total: 29.5" tall x 25.38" wide (lower bracket)
Core: 21" tall x 20.5" wide x 2" thick
Inlets: 1.75"
Outlets: 1.75"
Tanks: 3" thick
Tubes: 0.63" thick

Flange Mounted

13lb. Radiator Cap included
Transmission Cooler NOT included

When using electric fans:
One 16" fan recommended for this core size


Compatible With
Ford Truck 1941 (Ford Flathead 8 cyl)
