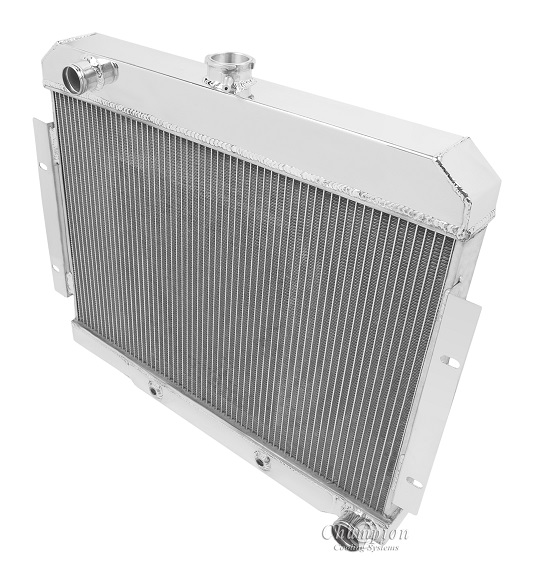

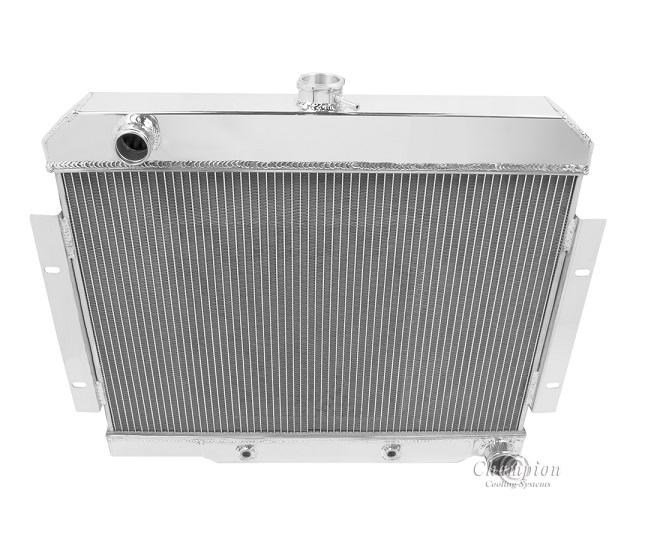

All Aluminum American Eagle Radiator
2 Row Core 1" Tubes | Cools up to 600hp
Chevy Inlet and outlet set up

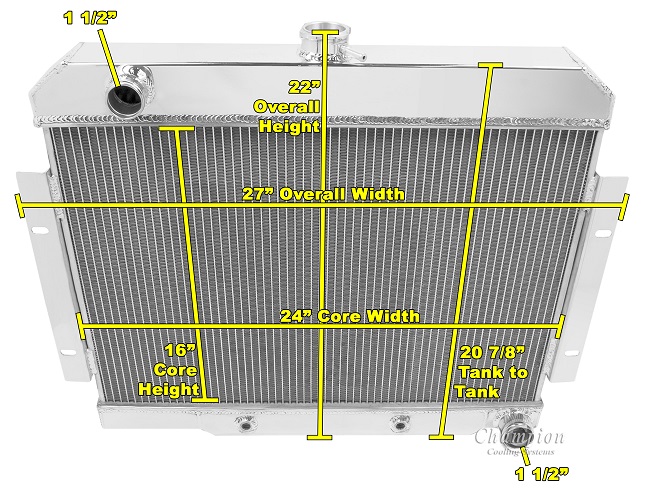

Radiator Dimensions:
Total: 22" tall x 27" wide
Core: 16" tall x 22.75" wide x 2.13" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver's side
Tubes: 1" thick

Bracket Mounted

16 lb. Radiator Cap Included
Transmission Cooler Included (1/2-20 Straight Thread, G 1/4)

Compatible With
Jeep CJ Series 1970-1985 (Chevrolet configuration)
