19.25" Tall x 28.75" Wide Overall (Incl Brackets)
CC337B-DP

CC337B-DP

CC337B-DP
Click to enlarge image(s)

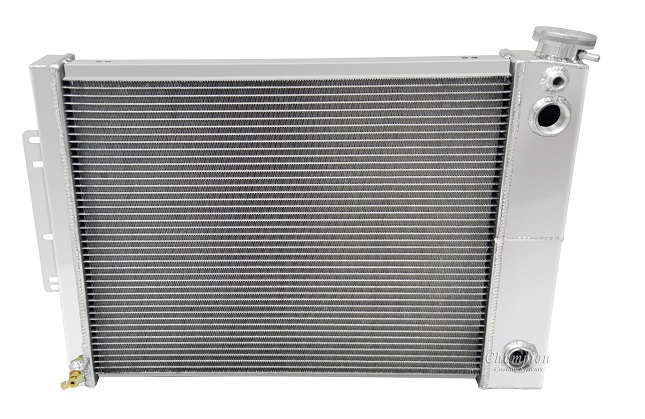

Champion All Aluminum Radiator
Dual Pass / LS Conversions
You MUST Choose your billet outlets in "Popular Add-Ons"
16-& 20 AN available upon request just call
3-Row Core - Dual Pass

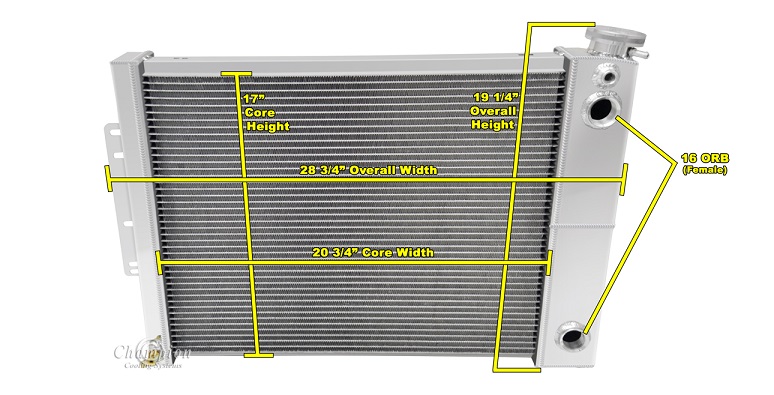

Radiator Dimensions:
Total: 18.5" (19.5" with cap) x 28.75" (with brackets)
Core: 16.75" tall x 20.75" wide x 2.5" thick
Inlet: (Choice your size below) passenger side
Outlet: (Choice your size below) passenger side
Tanks: 2.75" thick
Tubes: 0.63" thick
Bracket Mounted
16 lb. Billet Radiator Cap included
Steam Port with 1/4" barbed fitting and plug included
Recommended Fans:
One 16" Electric Cooling Fan (sold separately)


Compatible With
Chevrolet Camaro 1967-1969 (4.1l L6, 305ci V8, 307ci V8, 327ci V8, 350ci V8 "small block")
Pontiac Firebird/Trans Am - 1967-69 (4.1l L6, 305ci V8, 307ci V8, 327ci V8, 350ci V8)
