Ford Truck Radiator & Shroud (83-94) DIESEL

This radiator is for diesel engines only. Please refer to the CC1451 if you have a gas engine.
CC1165-1165FS16

CC1165-1165FS16

CC1165-1165FS16
Click to enlarge image(s)
All Aluminum Champion Radiator
Plus Ledfoot Racing Aluminum Shroud and two 16" Fans

3-Row Core | Cools up to 800hp

Radiator Dimensions:
Total: 30.88" tall (with cap) x 33.75" wide (including brackets)
Core: 20.25" tall x 30.25" wide x 2" thick
Inlet: 1.75" passenger side
Outlet: 2" driver side
Tanks: 3.00" thick
Tubes: 0.63" thick
Total Thickness: 7" (5.5" between fan motors)

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/8-27 npt)

Shipping is higher for this oversized item


Compatible With
Ford F-Series Pickups 1983-1994 (6.9L V8, 7.3L V8)

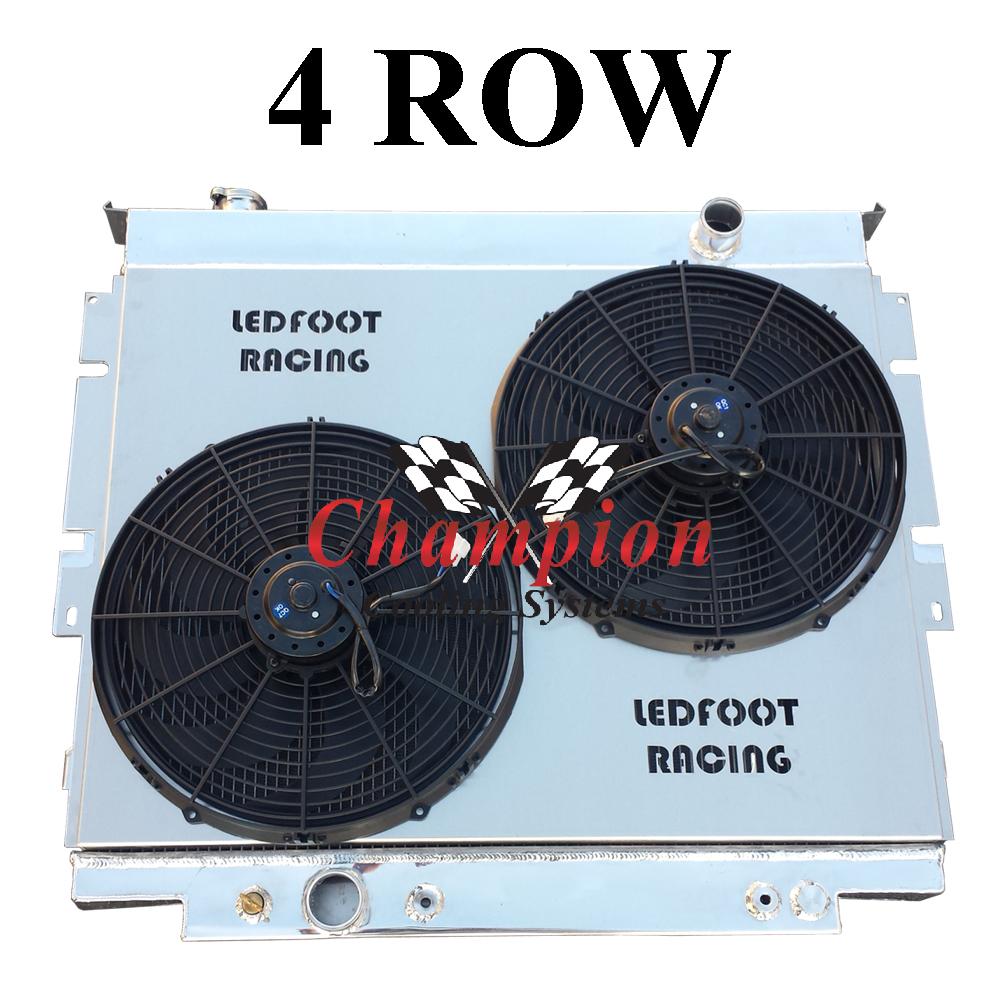

MC1165-1165FS16

MC1165-1165FS16

MC1165-1165FS16
Click to enlarge image(s)

All Aluminum Champion Radiator
Plus Ledfoot Racing Aluminum Shroud & 2-16" Fans
4-Row Core | Cools up to 900hp

Radiator Dimensions:
Total: 30.88" tall (with cap) x 33.75" wide (including brackets)
Core: 20.25" tall x 30.25" wide x 2.75" thick
Inlet: 1.75" passenger side
Outlet: 2" driver side
Tanks: 3.00" thick
Tubes: 0.63" thick
Total Thickness: 7.5" (5.5" between fan motors)

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler included ( M22 x 1.5)

Shipping is higher for this oversized item


Compatible With
Ford F-Series Pickups 1983-1994 (6.9L V8, 7.3L V8)
