(63-64) Dart Slant 6 Radiator
EC63DT

EC63DT

EC63DT
Click to enlarge image(s)

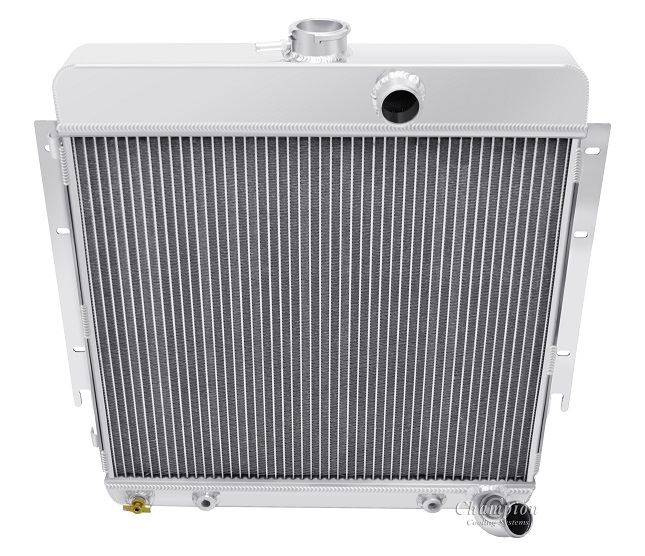

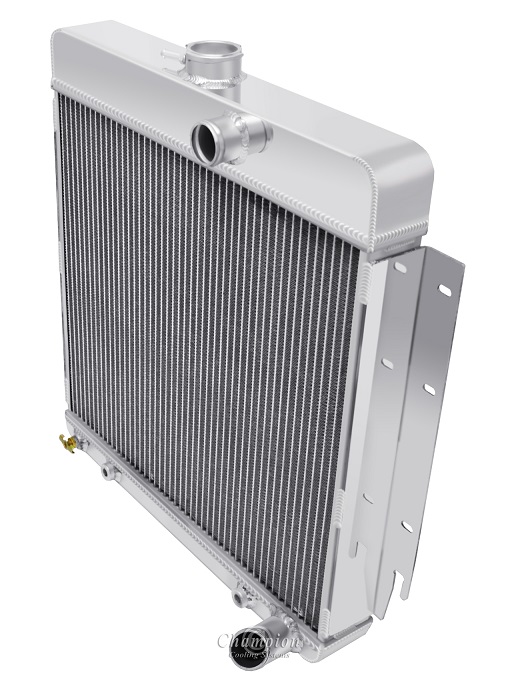

All Aluminum Champion Radiator
2-Row Core | Cools up to 400hp

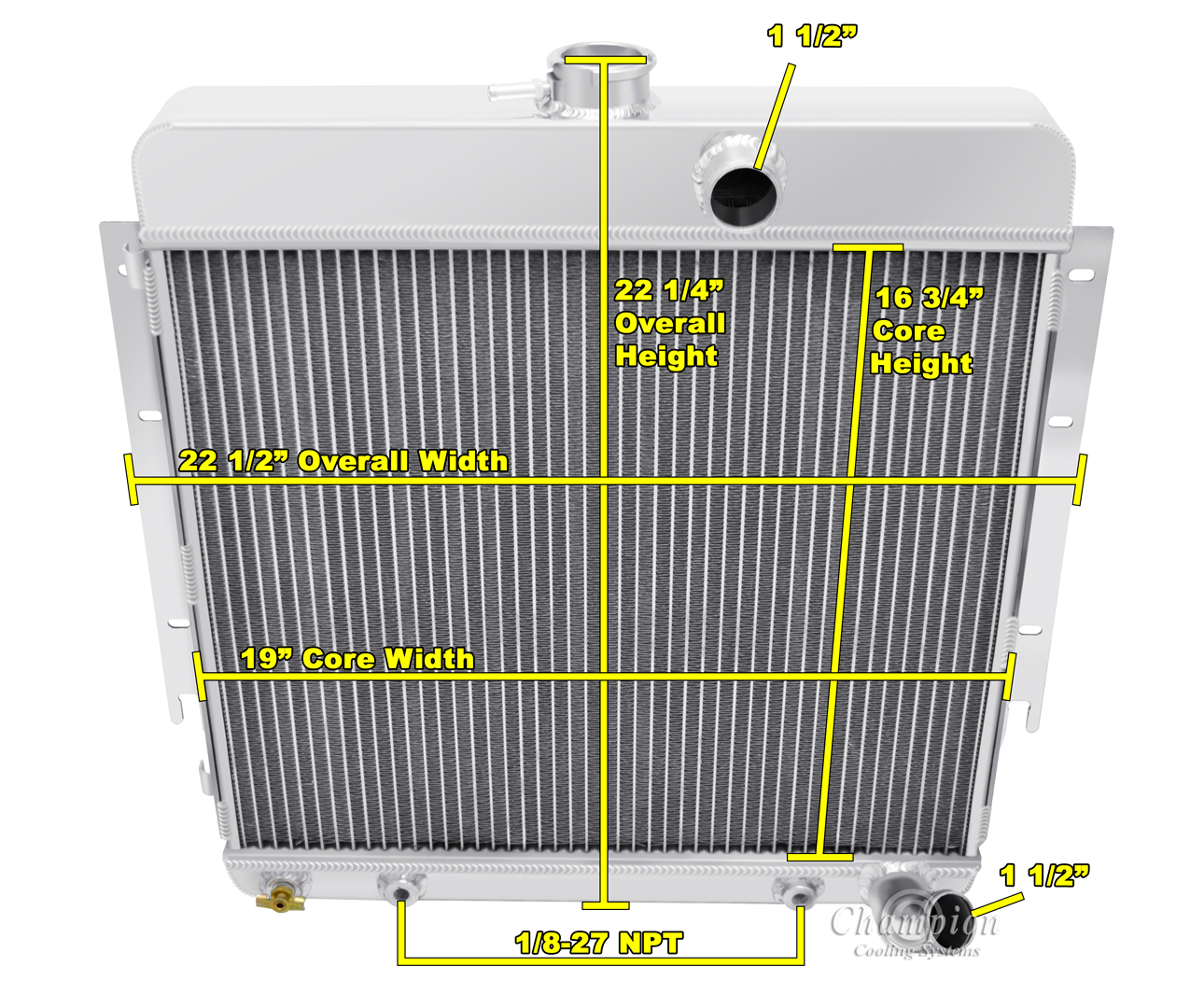

EC63DT Radiator Dimensions:
Total: 22.25" tall x 22.5" wide (with brackets)
Core: 16.75" tall x 19" wide x 1.63" thick
Inlet: 1.5" passenger side off-center
Outlet: 1.5" passenger
Tanks: 2.5" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/8" 27npt)


Compatible with:
63-64 Dart Slant 6
63-64 Valiant Slant 6
CC63DT

CC63DT

CC63DT
Click to enlarge image(s)
All Aluminum Champion Radiator
3-Row Core | Cools up to 450hp


CC63DT Radiator Dimensions:
Total: 22.25" tall x 22.5" wide (with brackets)
Core: 16.75" tall x 19" wide x 2" thick
Inlet: 1.5" passenger side off-center
Outlet: 1.5" passenger
Tanks: 2.5" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/8" 27npt)


Compatible with:
63-64 Dart Slant 6
63-64 Valiant Slant 6
