Corvette (69-72) Small Block Auto-Transmissioon

EC1655-1655FS12SP

EC1655-1655FS12SP

EC1655-1655FS12SP
Click to enlarge image(s)

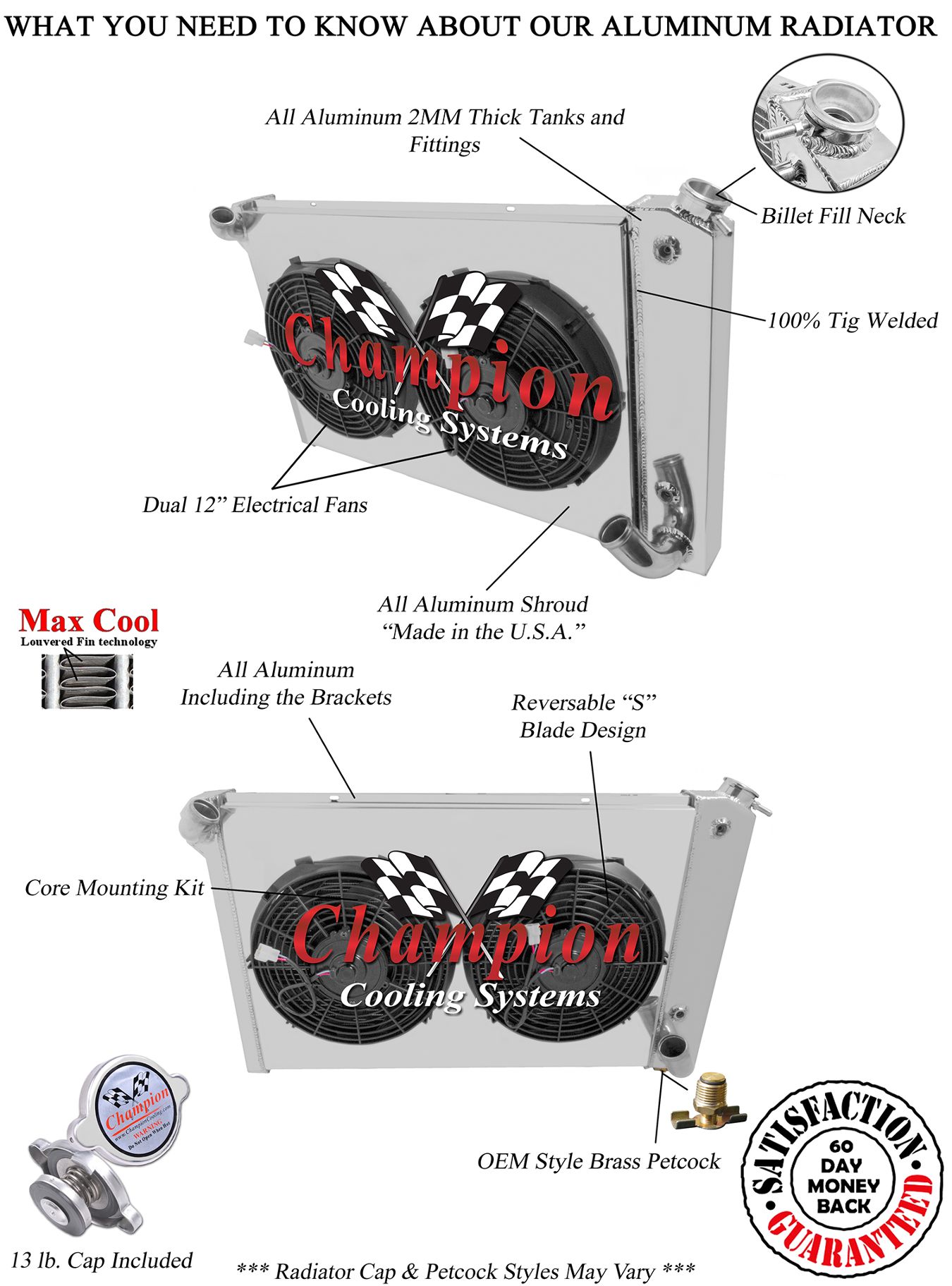

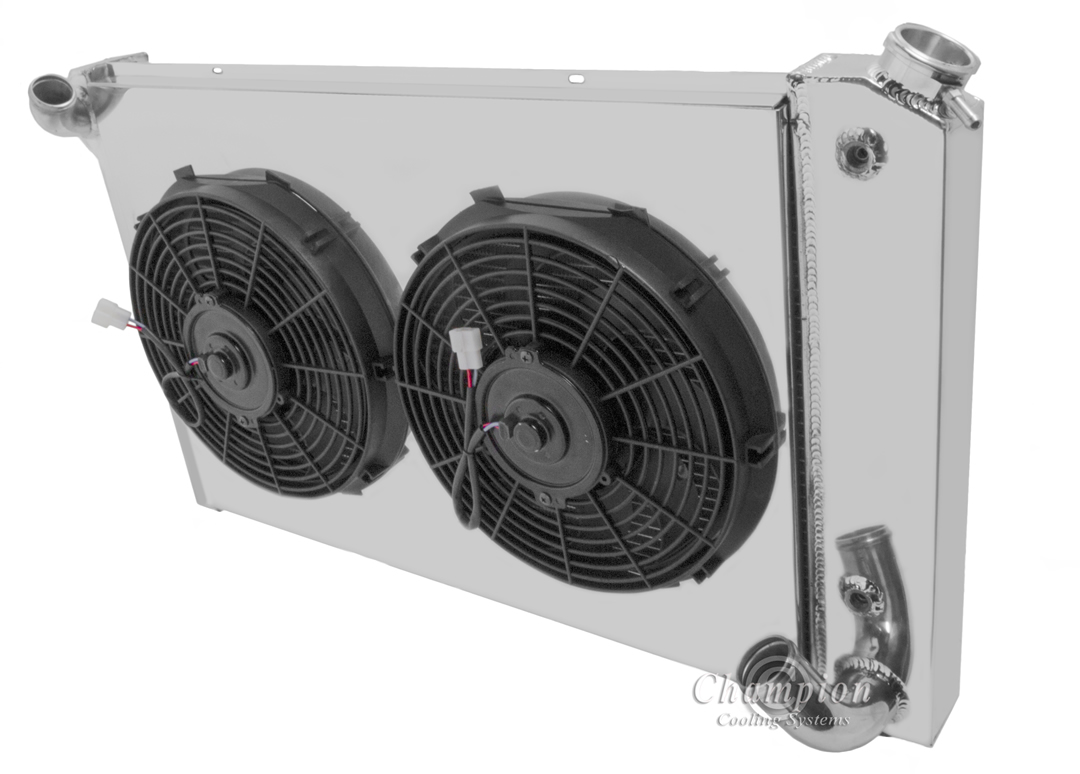

All Aluminum Champion Radiator
Plus Shroud and (2) SPAL-1522 12" fans
Fans larger than shown in photo

2 Row Core | Cools up to 450hp |
Note: Automatic Transmissions ONLY. If you need the
small radiator with the U shaped
outlet we do not carry it.

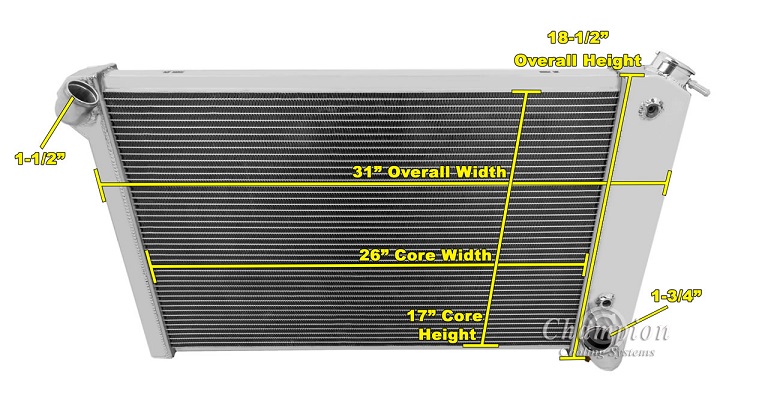

Radiator Dimensions:
Total: 18.5" tall (19.5" with cap) x 31.63" wide
Core: 17" tall x 26" wide x 1.75" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 0.75" thick
Total Thickness: 5.5" (4.5" between fan motors)

Bracket Mounted

13 lb. Radiator Cap Included
Transmission Cooler Included: 1/2"-20 Straight Thread


Compatible With
Chevrolet 1969-1972 (350ci V8 "small block")
CC1655-1655FS12SP

CC1655-1655FS12SP

CC1655-1655FS12SP
Click to enlarge image(s)

Champion Aluminum Radiator
Plus Shroud and (2) SPAL-1522 12" fans
Fans larger than shown in photo

3-Row Core | Cools up to 650hp
Note: Automatic Transmissions ONLY. If you need the
small radiator with the U shaped
outlet we do not carry it.

Radiator Dimensions:
Total: 18.5" tall (19.5" incl cap) x 31.63" wide
Core: 17" tall x 26" wide x 2" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick
Total Thickness: 6" (5" between fan motors)

Saddle Mounted

Radiator Cap included
Transmission Cooler included: 1/2"-20 Straight Thread



Compatible With
Chevy Corvette 1969-1972 (350ci V8) "small block"
MC1655-1655FS12SP

MC1655-1655FS12SP

MC1655-1655FS12SP
Click to enlarge image(s)

Champion All Aluminum Radiator
Plus Shroud and (2) SPAL-1522 12" fans
Fans larger than shown in photo

4-Row Core | Cools up to 800hp
Note: Automatic Transmissions ONLY. If you need the
small radiator with the U shaped
outlet we do not carry it.
Note: Outlet will hit the oversized sway bar.

Radiator Dimensions:
Total: 18.5" tall (19.5" incl cap) x 31.63" wide
Core: 17" tall x 26" wide x 2.75" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 3.125" thick
Tubes: 0.63" thick
Total Thickness: 6.25"

Saddle Mounted

13 lb. Radiator Cap included
Transmission Cooler included: (1/2-20 Straight Thread, Inverted Flare)




Compatible With
Chevy Corvette 1969-1972 (350ci V8) "small block"
