Mustang (79-93)

Scroll down for additional options

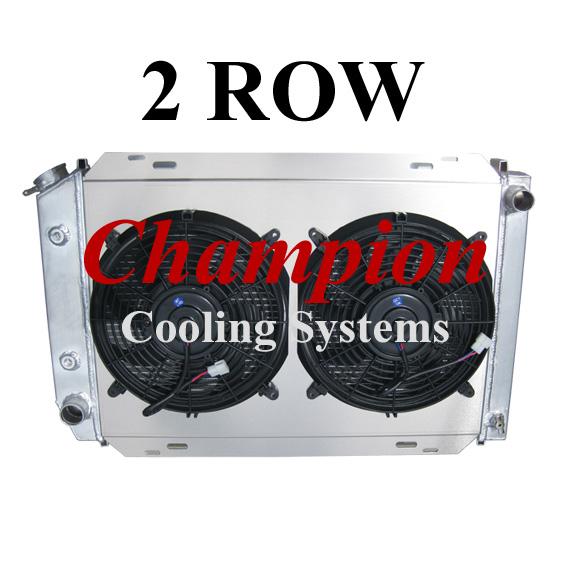

EC138-138FS11SP

EC138-138FS11SP

EC138-138FS11SP
Click to enlarge image(s)

Champion All Aluminum Radiator
Plus Ledfoot Racing Aluminum Shroud and 2-11" SPAL Medium Profile fans
2-Row Core | 400hp Rating

Radiator Dimensions:
Total: 19.25" tall (with cap) x 29.25" wide
Core: 16.75" tall x 24.5" wide x 1.75" thick
Inlet: 1.25" passenger side
Outlet: 1.5" driver side
Tanks: 1.75" thick
Tubes: 0.75" thick
Total Thickness: 6.5 to back of fans, 5.75" at center
Fan Thickness: 2.05

Saddle Mounted

13lb. Radiator Cap included
Transmission Cooler Included (1/4-18 NPT)




EC138-138FS16

EC138-138FS16

EC138-138FS16
Click to enlarge image(s)

Champion All Aluminum Radiator
Plus Ledfoot Racing Aluminum Shroud and one 16" Fan
Verify clearance for electric fan
Total thickness: 5.75" to fan motor
2-Row Core | Cools 400hp

Radiator Dimensions:
Total: 19.25" tall (with cap) x 29.25" wide
Core: 16.75" tall x 24.5" wide x 1.75" thick
Inlet: 1.25" passenger side
Outlet: 1.5" driver side
Tanks: 1.75" thick
Tubes: 0.75" thick
Total Thickness: 5.5

Saddle Mounted

13lb. Radiator Cap included
Transmission Cooler Included (1/4-18 NPT)

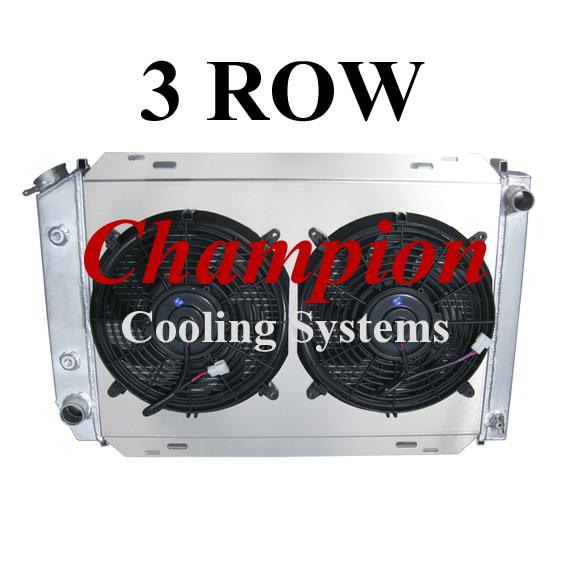

CC138B-138FS11SP

CC138B-138FS11SP

CC138B-138FS11SP
Click to enlarge image(s)

All Aluminum Champion Radiator
Plus Ledfoot Racing Aluminum Shroud & 2-11" SPAL Medium Profile fans
3-Row Core | Cools up to 700hp

Radiator Dimensions:
Total: 19.25" tall (with cap) x 29.25" wide
Core: 16.75" tall x 24.5" wide x 2.5" thick
Inlet: 1.25" passenger side
Outlet: 1.5" driver side
Tanks: 2.75" thick
Tubes: 0.75" thick
Total Thickness: 6.5 to back of fans, 5.75" at center
Fan Thickness: 2.05

Saddle Mounted

13 lb. Radiator cap included
Transmission Cooler included (1/4-18 NPT)




Compatible With
Ford Thunderbird 1980-1988 (200ci I6, 255ci V8, 302ci V8)
Licoln Zephyr 1980-1983 (all engines)
Mercury marquis 1983 (140ci I4, 200ci I6, 232ci V6)
Mercury Marquis 1984 (140ci I4, 232ci V6)
Mercury Marquis 1985 (140ci I4, 232ci V6, 323ci V8)
Mercury Marquis 1986 (140ci I4, 232ci V6)
Ford Mustang 1979-1993 (all engines)
Licoln Continental 1982-1987 (all engines)
Lincoln Mark VII 1984-1992 (302ci/5.0L V8)
Ford LTD 1983-1986 (all engines)
Ford Granada 1981-1982 (all engines)
Mercury Cougar/XR7 1980-1983 (all engines)
Ford Futura/Fairmont 1980-1983 (all engines including turbo models)
Mercury Capri 1980-1986 (all engines including turbo models)
Mercury Monarch 1975-1980 (NEEDS hose adapter)
Ford Granada 1975-1980 (NEEDS hose adapter)
Lincoln Versailles 1977-1980 (NEEDS hose adapter)

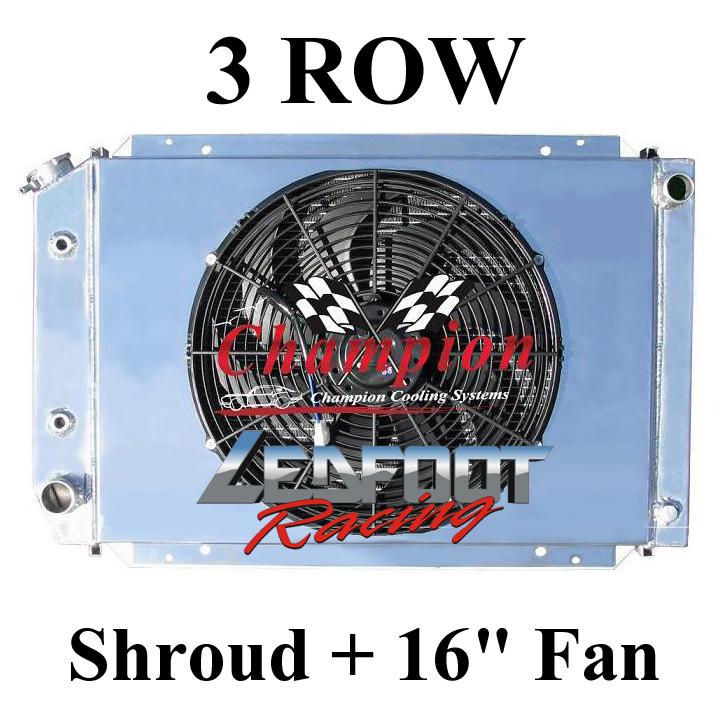

CC138B-138FS16

CC138B-138FS16

CC138B-138FS16
Click to enlarge image(s)

All Aluminum Champion Radiator
Plus Ledfoot Racing Aluminum Shroud & 16" fan
Verify clearance for electric fan
3-Row Core | Cools up to 700hp

Radiator Dimensions:
Total: 19.25" tall (with cap) x 29.25" wide
Core: 16.75" tall x 24.5" wide x 2.5" thick
Inlet: 1.25" passenger side
Outlet: 1.5" driver side
Tanks: 2.75" thick
Tubes: 0.75" thick
Total Thickness: 6.5"

Saddle Mounted

13 lb. Radiator cap included
Transmission Cooler included (1/4-18 NPT)




Specifications
Ford Thunderbird 1980-1988 (200ci I6, 255ci V8, 302ci V8)
Licoln Zephyr 1980-1983 (all engines)
Mercury marquis 1983 (140ci I4, 200ci I6, 232ci V6)
Mercury Marquis 1984 (140ci I4, 232ci V6)
Mercury Marquis 1985 (140ci I4, 232ci V6, 323ci V8)
Mercury Marquis 1986 (140ci I4, 232ci V6)
Ford Mustang 1979-1993 (all engines)
Licoln Continental 1982-1987 (all engines)
Lincoln Mark VII 1984-1992 (302ci/5.0L V8)
Ford LTD 1983-1986 (all engines)
Ford Granada 1981-1982 (all engines)
Mercury Cougar/XR7 1980-1983 (all engines)
Ford Futura/Fairmont 1980-1983 (all engines including turbo models)
Mercury Capri 1980-1986 (all engines inlcuding turbo models)
Mercury Monarch 1975-1980 (NEEDS hose adapter)
Lincoln Versailles 1977-1980 (NEEDS hose adapter)
Ford Granada 1975-1980 (NEEDS hose adapter)

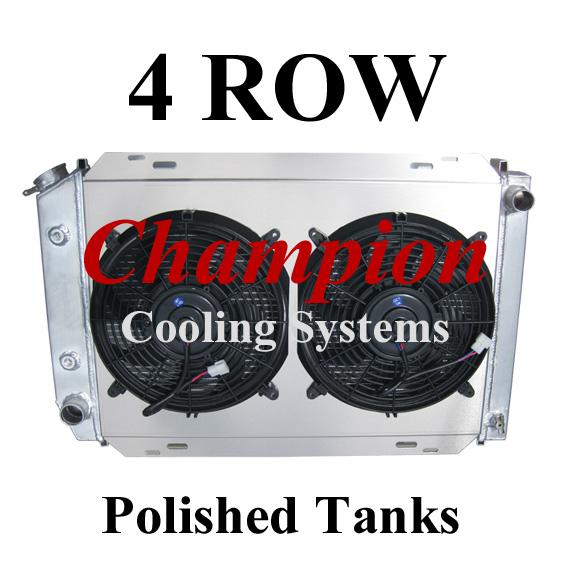

MC138-138FS11SP

MC138-138FS11SP

MC138-138FS11SP
Click to enlarge image(s)

Champion All Aluminum Radiator
Plus Ledfoot Racing Shroud & 2-11" SPAL 1500 Fans
4-Row Core: Polished Tanks | 750hp Rating

Radiator Dimensions:
Total: 19.25" tall (with cap) x 29.75" wide
Core: 16.75" tall x 24.5" wide x 2.75" thick
Inlet: 1.25" passenger side
Outlet: 1.5" driver side
Tanks: 2.75" thick
Tubes: 0.63" thick
Total Thickness: 6.5" (5.5" between fan motors)

13 lb. Radiator Cap included
Transmission Cooler included (1/4-18 NPT)

Modifications may be needed to mount
this thicker radiator

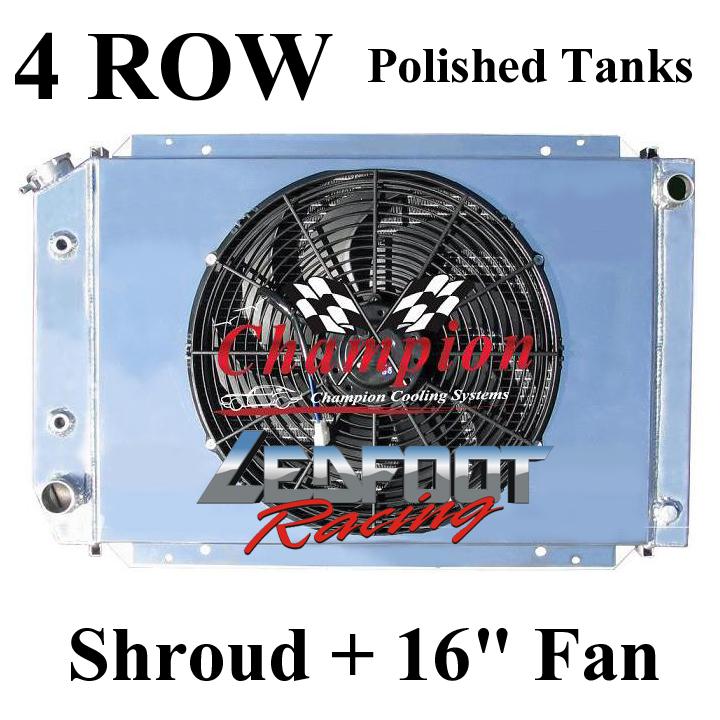

MC138-138FS16

MC138-138FS16

MC138-138FS16
Click to enlarge image(s)

Champion All Aluminum Radiator
Plus Ledfoot Racing Aluminum Shroud & 16" Fan
Verify clearance for electric fan
4-Row Core: Polished Tanks | 750hp Rating

Radiator Dimensions:
Total: 19.25" tall (with cap) x 29.75" wide
Core: 16.75" tall x 24.5" wide x 2.75" thick
Inlet: 1.25" passenger side
Outlet: 1.5" driver side
Tanks: 2.75" thick
Tubes: 0.63" thick
Total Thickness: 6.5"

Saddle Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/4-18 NPT)




138FS11

138FS11

138FS11
Click to enlarge image(s)

Ledfoot Racing Aluminum Shroud for 2-11" SPAL Fans
Fans sold separately

Dimensions:
19" tall x 24.25" wide

Attributes:
All-Aluminum Fan Shroud
Cut-outs to accept two 11" SPAL or 12" Pro-series fans
Designed for Electric Fans (sold separately)
Made in the U.S.A

Compatible with:
AE138, EC138, CC138, MC138 radiators

note: Will fit other radiators but please verify dimensions.

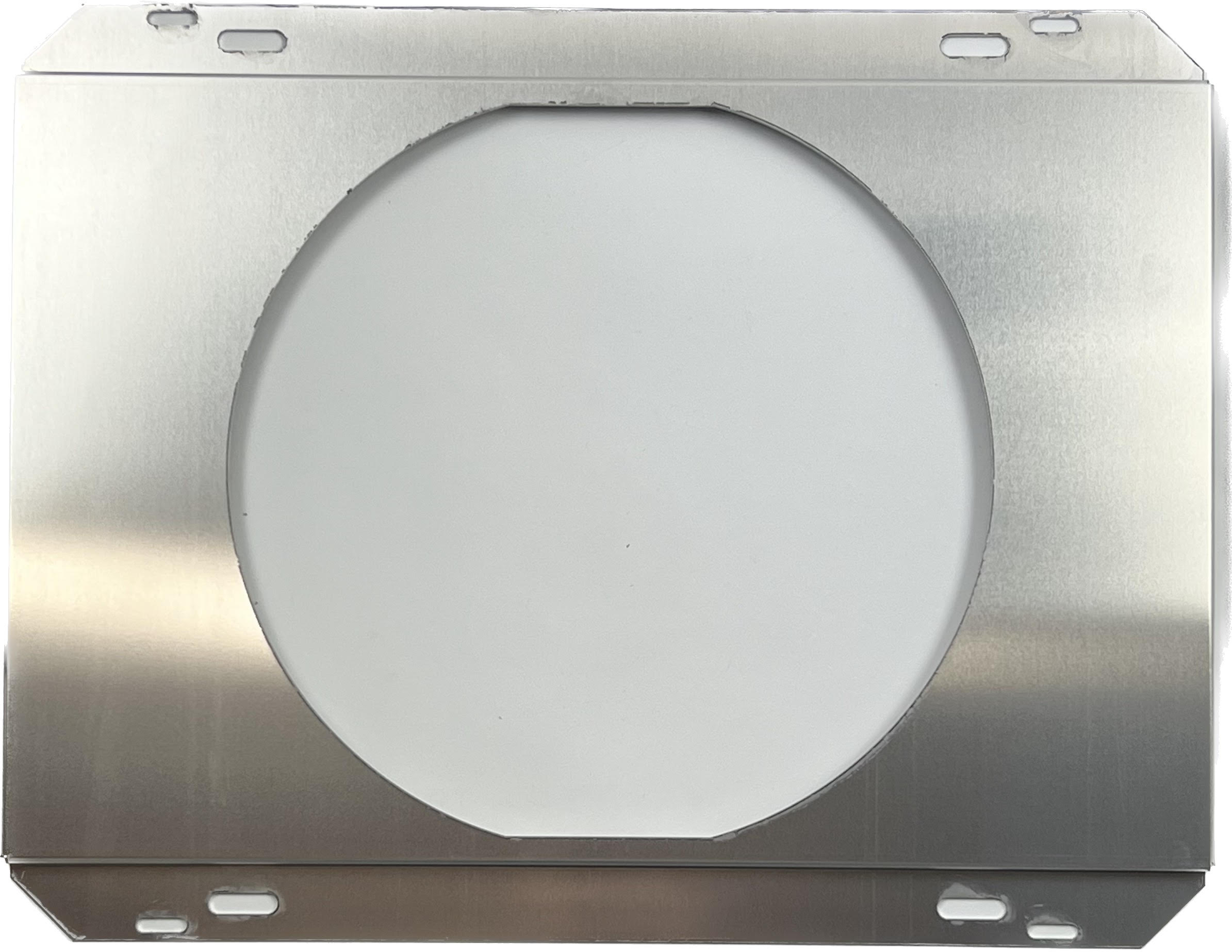

138FS16

138FS16

138FS16
Click to enlarge image(s)

Ledfoot Racing Aluminum Shroud for One 16" Electric Fan


Total Dimensions:
19" tall x 24 1/4" Wide

Attributes:
All-Aluminum Fan Shroud
Cut-outs to accept one 16" electric fan
Designed Exclusively for One Electric Fan (sold separately)
Made in the U.S.A

Compatible With:
EC138, CC138, MC138, and AE138
