F Series Diesel (83-94 )

This radiator is for diesel engines only. Please refer to the CC1451 if you have a gas engine.
EC1165

EC1165

EC1165
Click to enlarge image(s)

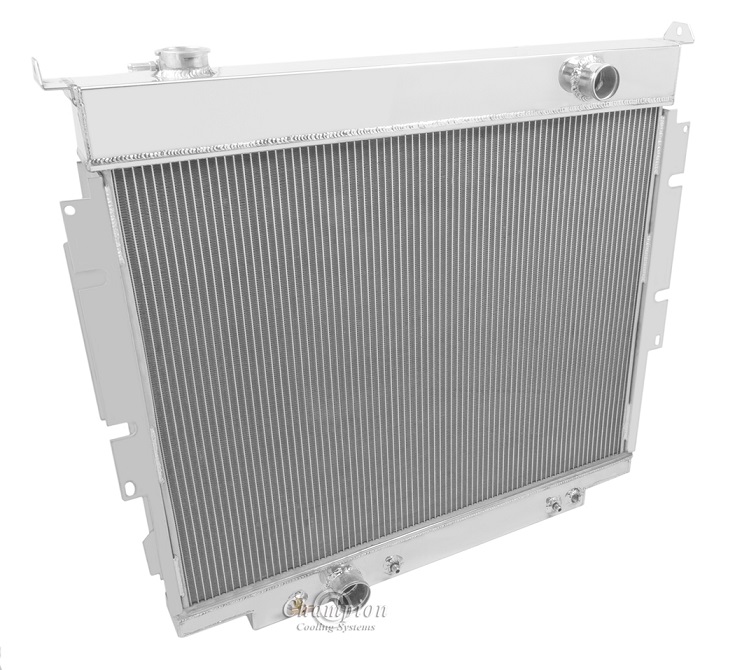

All Aluminum Champion Radiator
2-Row Core | Cools up to 500hp

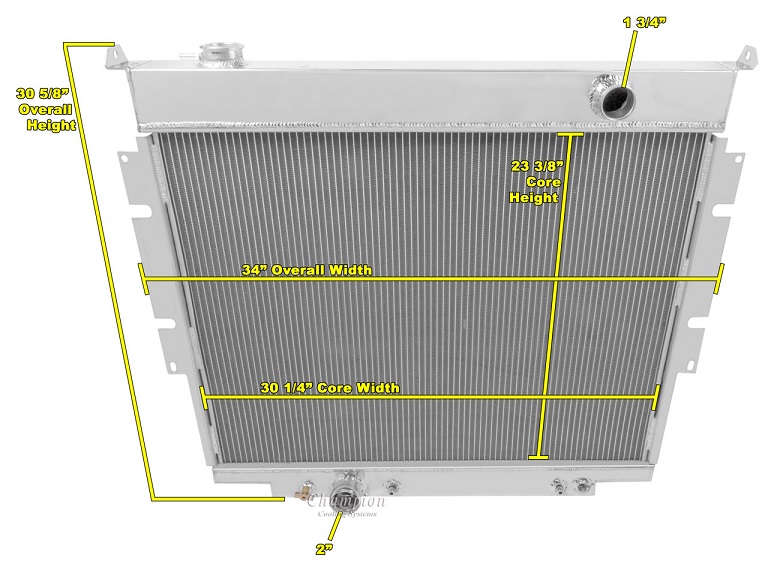

Radiator Dimensions:
Total: 30.88" tall (with cap) x 33.75" wide (including brackets)
Core: 20.25" tall x 30.25" wide x 1.75" thick
Inlet: 1.75" passenger side
Outlet: 2" driver side
Tanks: 3.00" thick
Tubes: 0.75" thick

Bracket Mounted

16 lb. Radiator Cap included
Transmission Cooler included (1/8-27 npt)

Aluminum Fan Shroud is also available (sold separately)


When using electric fans:
Two 16" Electric fans recommended for this core size (sold separately)

Shipping is higher for this oversized item


Compatible With
Ford F-Series Pickups 1983-1994 (6.9L V8, 7.3L V8)
CC1165

CC1165

CC1165
Click to enlarge image(s)
All Aluminum Champion Radiator
3-Row Core | Cools up to 800hp

Radiator Dimensions:
Total: 30.88" tall (with cap) x 33.75" wide (including brackets)
Core: 20.25" tall x 30.25" wide x 2" thick
Inlet: 1.75" passenger side
Outlet: 2" driver side
Tanks: 3.00" thick
Tubes: 0.63" thick

Bracket Mounted

16 lb. Radiator Cap included
Transmission Cooler included (1/8-27 npt)

Aluminum Fan Shroud is also available (sold separately)


When using electric fans:
Two 16" Electric fans recommended for this core size (sold separately)

Shipping is higher for this oversized item


Compatible With
Ford F-Series Pickups 1983-1994 (6.9L V8, 7.3L V8)
MC1165

MC1165

MC1165
Click to enlarge image(s)
All Aluminum Champion Radiator
4-Row Core | Cools up to 900hp

Radiator Dimensions:
Total: 30.88" tall (with cap) x 33.75" wide (including brackets)
Core: 20.25" tall x 30.25" wide x 2.75" thick
Inlet: 1.75" passenger side
Outlet: 2" driver side
Tanks: 3.00" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/8-27 npt)

When using electric fans:
Two 16" Electric fans recommended for this core size (sold separately)

Shipping is higher for this oversized item


Compatible With
Ford F-Series Pickups 1983-1994 (6.9L V8, 7.3L V8)
1165FS16X2 Shroud

1165FS16X2 Shroud

1165FS16X2 Shroud
Click to enlarge image(s)

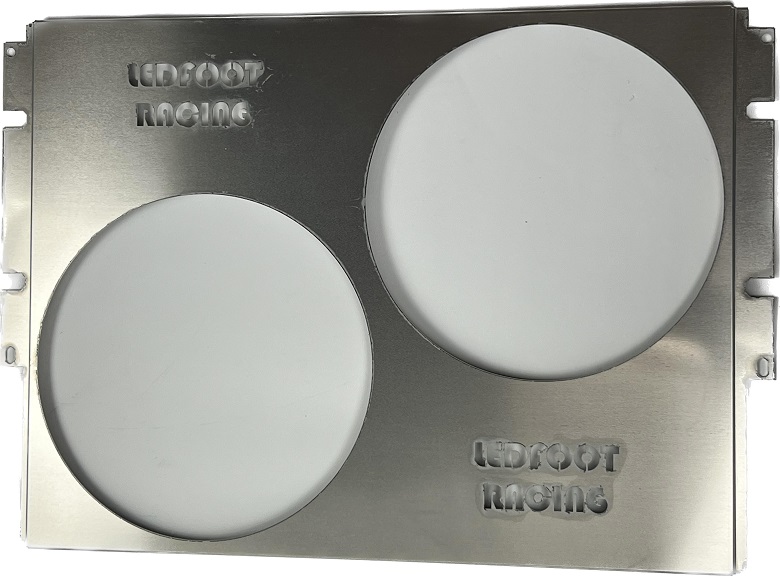

Ledfoot Racing Aluminum Fan Shroud for Two 16" Electric Fans
Radiator and fans sold seperately

Dimensions:
23.375" tall x 33.75" wide

Attributes:
All-Aluminum Fan Shroud
Cut-outs to accept two 16" electric fans
Designed Exclusively for Two Electric Fans (sold separately)
Made in the U.S.A

Compatible with:
Champion CC1165, MC1165, and American Eagle AE433.
Will also fit the stock Ford Radiator.
