International Pickup Truck Radiators (1961-1968)
Choose between the L6 radiator (Chevy conversions) and the V8 radiator, Note your outlet positions

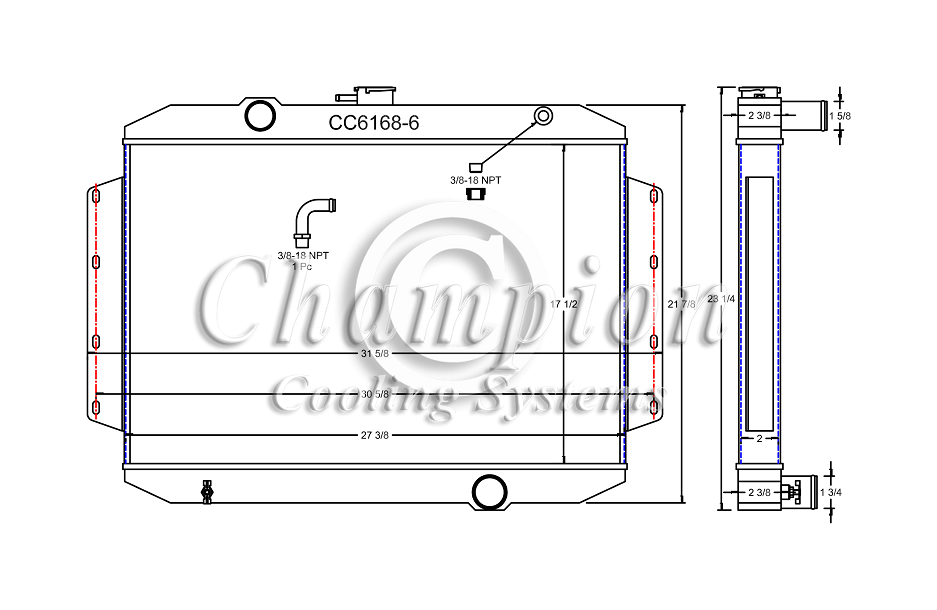

CC6168-6

CC6168-6

CC6168-6
Click to enlarge image(s)

Champion All Aluminum Radiator
3-Row Core | Cools up to 700hp

Radiator Dimensions:
Total: 22" tall (23.25” with cap) x 31.63" wide (with brackets) x 2.38" thick
Core: 17.5" tall x 27.38" wide x 2" thick
Inlet: 1.63" driver side
Outlet: 1.75" passenger side
Tanks: 2.38"
Tubes: 0.63" thick

Bracket Mounted

13lb. Radiator Cap included
NO Transmission Cooler included

When using electric fans (sold separately):
Two 12"or 13" SPAL Electric fans recommended for this core size



Compatible With
International Pickup Trucks 1961-1968 (All L6's)

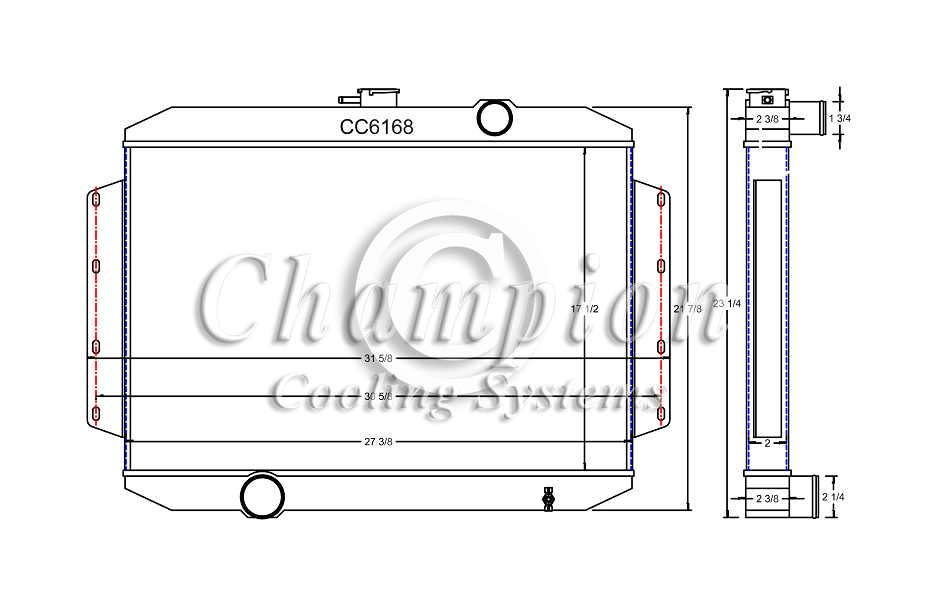

CC6168

CC6168

CC6168
Click to enlarge image(s)

Champion All Aluminum Radiator
3-Row Core | Cools up to 700hp

Radiator Dimensions:
Total: 22" tall (23.25” with cap) x 31.63" wide (with brackets) x 2.38" thick
Core: 17.5" tall x 27.38" wide x 2" thick
Inlet: 1.75" passenger side
Outlet: 2.25" driver side
Tanks: 2.38"
Tubes: 0.63" thick

Bracket Mounted

13lb. Radiator Cap included
NO Transmission Cooler included

When using electric fans (sold separately):
Two 12"or 13" SPAL Electric fans recommended for this core size



Compatible With
International Pickup Trucks 1961-1968 (All V8's)
