Chevy Truck (55-59) V8's
Scroll down for additional options
AE5559

AE5559

AE5559
Click to enlarge image(s)

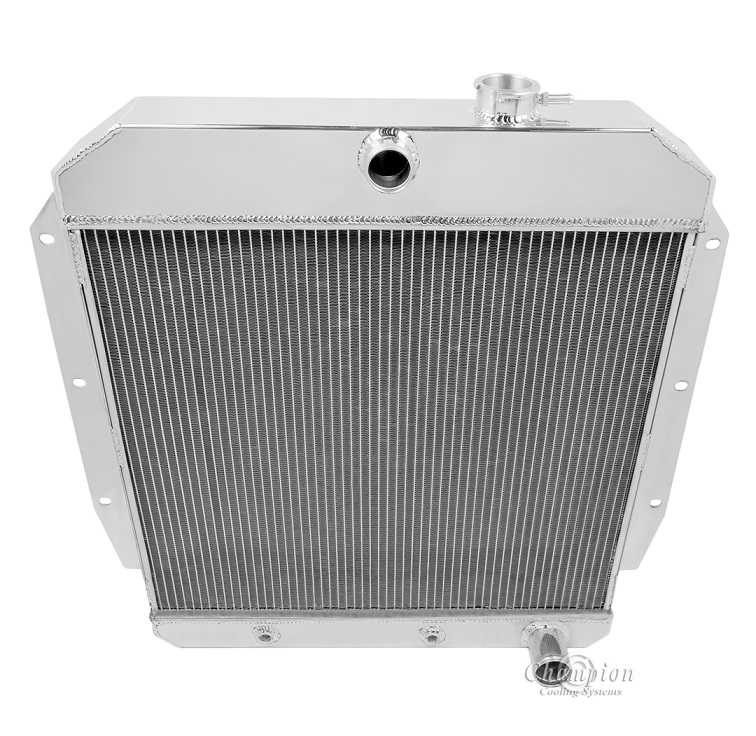

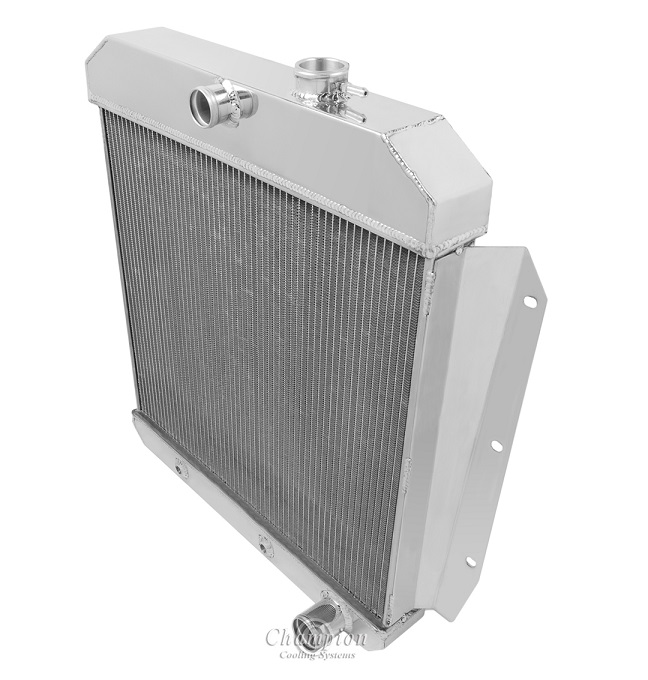

American Eagle All Aluminum Radiator
2-Row Core 1" Rows | Cools up to 650hp

Radiator Dimensions:
Total: 26.75" tall (with cap)  x 26.5" wide (Incl Brackets)
Core: 19.38" tall x 21.75" wide x 2.25" thick
Inlet: 1.5" center
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 1" thick

Radiator Cap Included
Transmission Cooler Included (1/2"-20 Straight Thread)

Bracket Mounted

When using electric fans:
One 16" fan recommended for this core size (sold separately)


Compatible With
Chevrolet/GMC Truck 1955-1959
AE5559-5559FS16

AE5559-5559FS16

AE5559-5559FS16
Click to enlarge image(s)

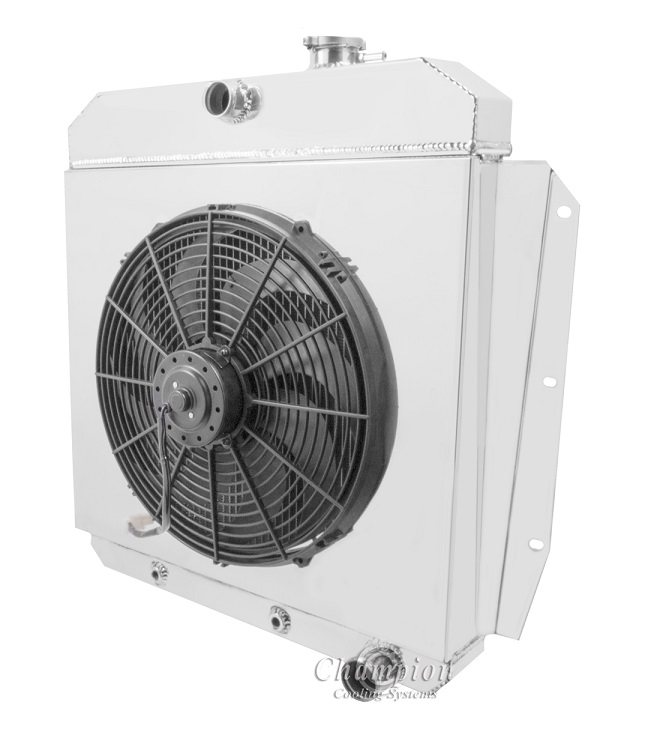

American Eagle All Aluminum Radiator
Plus Ledfoot Racing Shroud and 16" Fan
Verify clearance for electric fan
Total thickness: 6.25" to fan motor
2-Row Core: 1" Thick Tubes | 600hp Rating
($20 Discount)

Radiator Dimensions:
Total: 26.75" tall (with cap) x 26.5" wide (with brackets)
Core: 19.38" tall x 21.75" wide x 2.25" thick
Inlet: 1.5" center
Outlet: 1.75" Pass side
Tanks: 2.5" thick
Tubes: 1" thick

Radiator Cap Included
Transmission Cooler Included (1/2"-20 Straight Thread)

Bracket Mounted



Compatible With
Chevy/GMC Truck 1955-1959
5559FS16

5559FS16

5559FS16
Click to enlarge image(s)

Ledfoot Racing Aluminum Fan Shroud for One 16" Electric Fan
Radiator and fan sold seperately

Dimensions:
19.25" tall x 27.25" wide

Attributes:
All-Aluminum Fan Shroud
Cut-out to accept one 16" electric fan
Designed Exclusively for One Electric Fan (sold separately)
Made in the U.S.A

Compatible with:
Champion EC5559, CC5559, and American Eagle AE5559.
