AE571

AE571

AE571
Click to enlarge image(s)
American Eagle All Aluminum Radiator
2-Row Core: 1" Thick Tubes | Cools up to 550hp

Radiator Dimensions:
Total: 18.5" tall (18.75" with cap) x 27" wide
Core: 16.75" tall x 21.25" wide x 2.25" thick
Inlet: 1.5" driver side
Outlet: 1.5" passenger side
Tanks: 2.5" thick
Tubes: 1" thick

Transmission Cooler Included (1/2"- 20 STRAIGHT THREAD)
Radiator Cap Included

Saddle Mounted

When using electric fans:
One 16" Electric fan recommended for this core size (sold separately)


AE571-571FS16

AE571-571FS16

AE571-571FS16
Click to enlarge image(s)

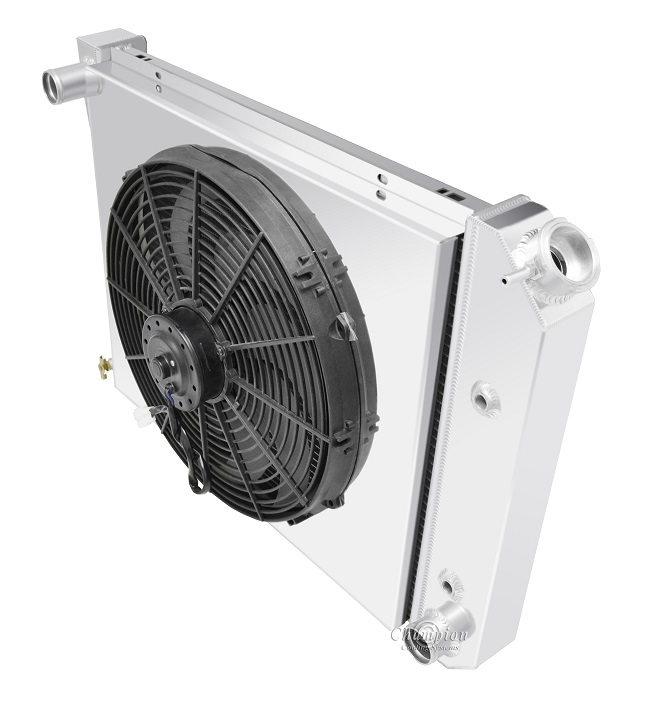

American Eagle All Aluminum Radiator
Plus Ledfoot Racing Custom Shroud and 16" Fan
Verify clearance for electric fan
Total thickness: 6.25" to fan motor
2-Row Core: 1" Thick Tubes | 500hp Rating
($20 Discount)

Total: 18.5" tall (18.75" with cap) x 27" wide
Core: 16.75" tall x 21.25" wide x 2.25" thick
Inlet: 1.5” driver side / Outlet: 1.5” pass side
Tanks: 2.5” thick
Tubes: 1" thick

Transmission Cooler Included (1/2"- 20 STRAIGHT THREAD)
Polished Champion 16 lb Radiator Cap included (Pictured Above)

Saddle Mounted
