Firebird / Trans Am (82-92)

Scroll down for additional options. This radiator does not fit the 6 cylinder.
EC951-951FS12SP

EC951-951FS12SP

EC951-951FS12SP
Click to enlarge image(s)

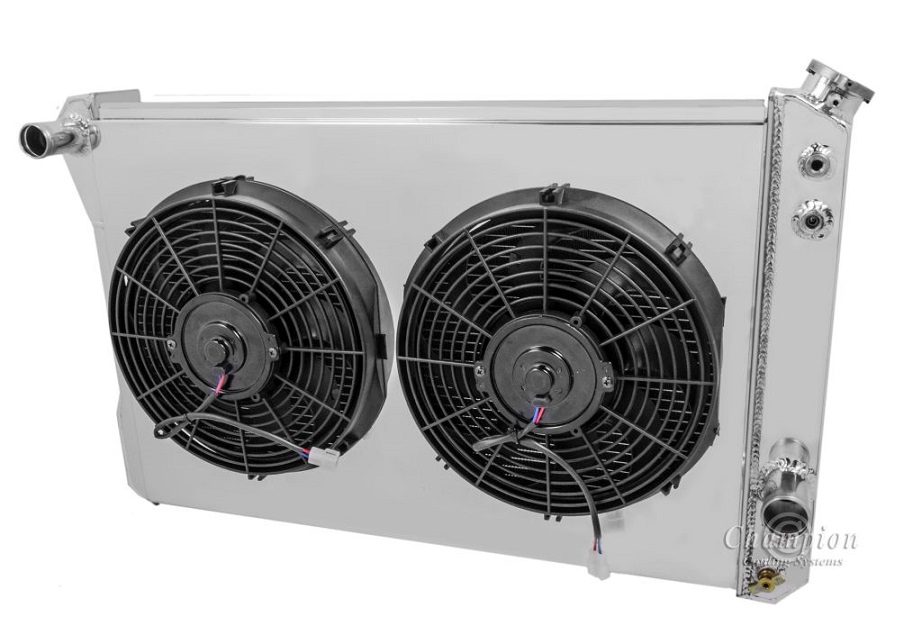

Champion All Aluminum Radiator
Plus Champion Aluminum Shroud
Plus 2-12" SPAL-1522 Fans "SAVE $30"
Fans are slightley larger than shown in photo
2-Row Core | 400hp Rating

Radiator Dimensions:
Total: 18.88" tall (20.13" with cap) x 31” wide
Core: 17” tall x 26.25" wide x 1.5" thick
Inlet: 1.5" driver side
Outlet: 1.56" passenger side
Tanks: 2.5” thick
Tubes: 0.63" thick

Saddle Mounted

Transmission Cooler Included (1/2"- 20 STRAIGHT THREAD, INVERTED FLARE)
13 lb. Radiator Cap included


CC951-951FS12SP

CC951-951FS12SP

CC951-951FS12SP
Click to enlarge image(s)

Champion All Aluminum Radiator
Plus Champion Aluminum Shroud
Plus 2-12" SPAL-1522 Fans "SAVE $30"
Fans are slightley larger than shown in photo
3-Row Core | 750hp Rating

Radiator Dimensions:
Total: 18.88" tall (20.13" with cap) x 31” wide
Core: 17” tall x 26.25" wide x 2.25" thick
Inlet: 1.5" driver side
Outlet: 1.56" passenger side
Tanks: 2.5” thick
Tubes: 0.63" thick

Total Thickness: 5.5" (4.5" between fan motors)

Saddle Mounted

Transmission Cooler Included (1/2"- 20 STRAIGHT THREAD, INVERTED FLARE)
13 lb. Radiator Cap included


MC951-951FS12SP

MC951-951FS12SP

MC951-951FS12SP
Click to enlarge image(s)

Champion All Aluminum Radiator
Plus Ledfoot Racing Aluminum Shroud
Plus 2-12" SPAL-1522 Fans "SAVE $30"
4-Row Core: Polished Tanks | 850hp Rating

MC951 Radiator Dimensions:
Total: 20" tall x 32" wide
Core: 17.25" tall x 26.25" wide x 2.75" thick
Inlet: 1.38" driver side
Outlet: 1.63" passenger side
Tanks: 3.13" thick
Tubes: 0.63" thick

Saddle Mounted
13 lb. Radiator Cap included
Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare)
