23.5 x 29" Overall Mopar Radiators Driver side inlet and outlet

26" Mopar Radiator Driver side inlet and outlet

CC1638

CC1638

CC1638
Click to enlarge image(s)

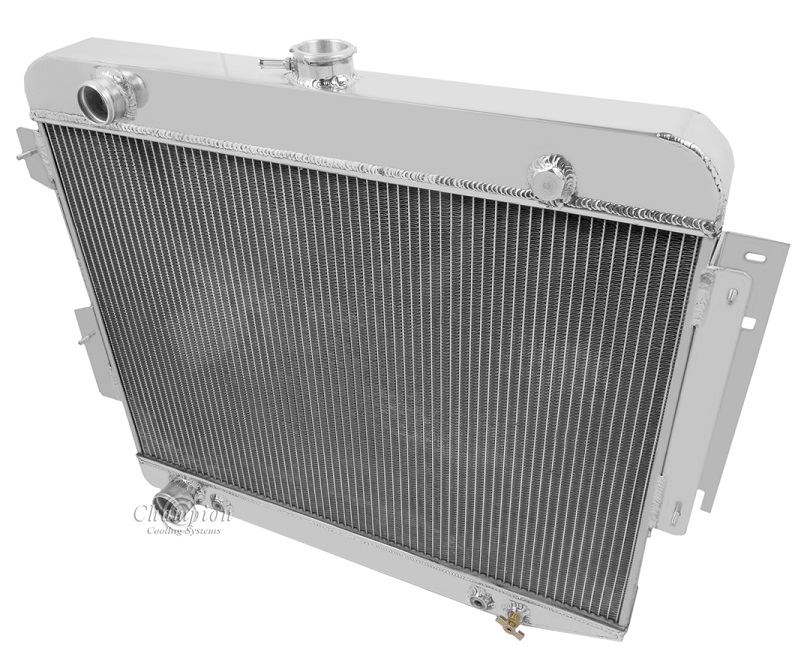

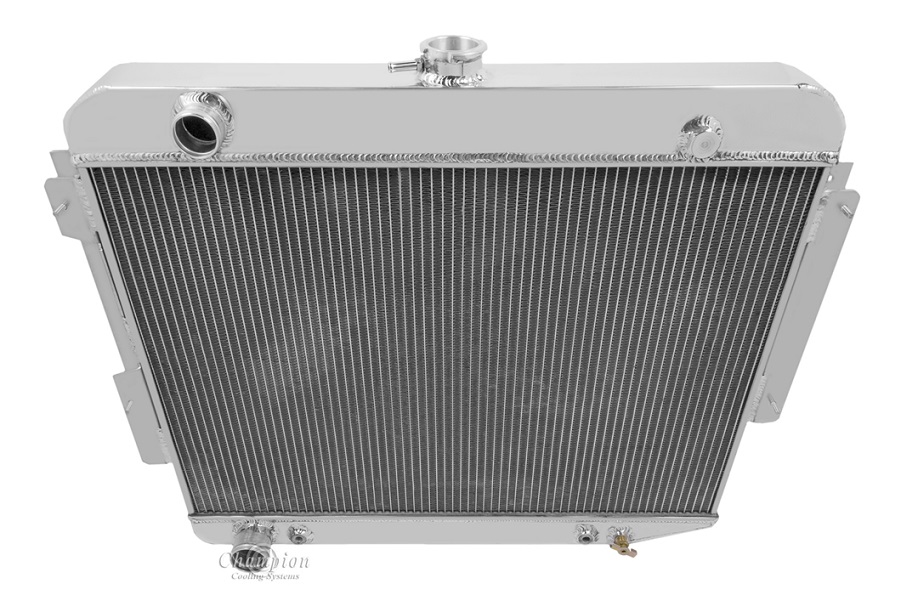

Champion All Aluminum Radiator
3-Row Core | Cools up to 650hp
This is taller than our other 26" core radiators
please confirm it will fit.

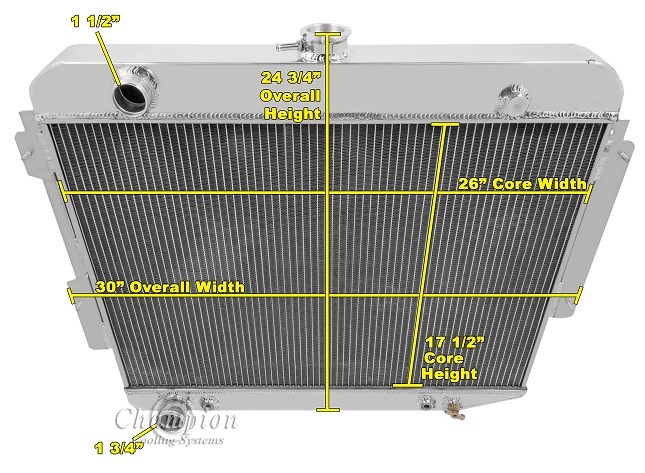

Radiator Dimensions:
Total: 24.75" tall (with cap) x 30" wide (with brackets) x 2.5" thick
Core: 17.5" tall x 26" wide x 2" thick
Inlet: 1.5" driver side
Outlet: 1.75" driver side
Tanks: 2.5" thick
Tubes: 0.63" thick

Bracket Mounted

16 lb. Radiator cap included
Transmission Cooler included (1/8-27NPT)

Custom shroud for electric fan(s) available upon request:



Compatible With
Dodge Charger 1966-1969
MC1638

MC1638

MC1638
Click to enlarge image(s)
Champion All Aluminum Radiator
4-Row Core | Cools up to 750hp

Radiator Dimensions:
Total: 24.75" tall (with cap) x 30" wide (with brackets)
Core: 17.5" tall x 26" wide x 2.75" thick
Inlet: 1.5" driver side
Outlet: 1.75" driver side
Tanks: 2.5" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/8-27NPT)

Custom shroud for electric fan(s) available upon request:



Compatible With
Dodge Charger 1966-1969
