(42-52) Ford Truck Champion Radiators (Ford Setup)

Please note the inlet and outlet positions. Scroll down for more options.
EC4252FD-4252FS16

EC4252FD-4252FS16

EC4252FD-4252FS16
Click to enlarge image(s)

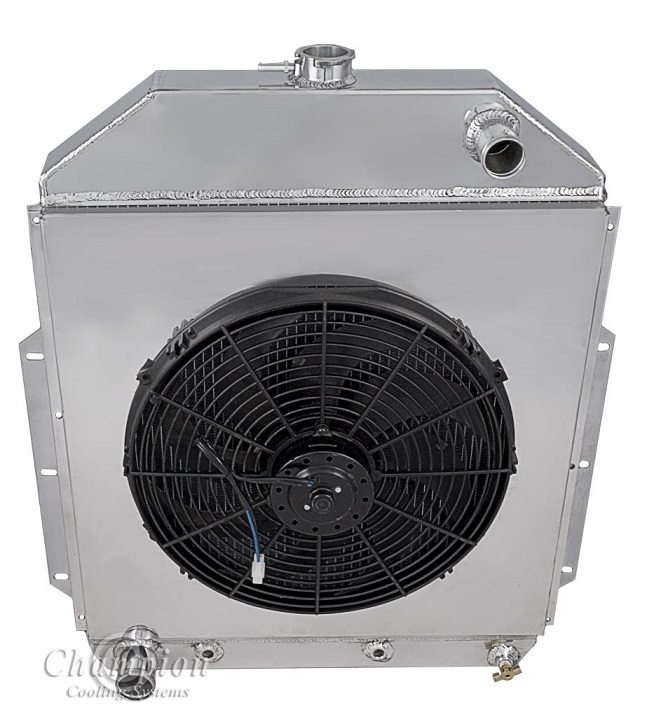

Champion All Aluminum Radiator
Plus Ledfoot Racing Aluminum Shroud & 16" Fan
Verify clearance for electric fan
Total thickness: 5.75" to fan motor
2-Row Core | Cools up to 400hp

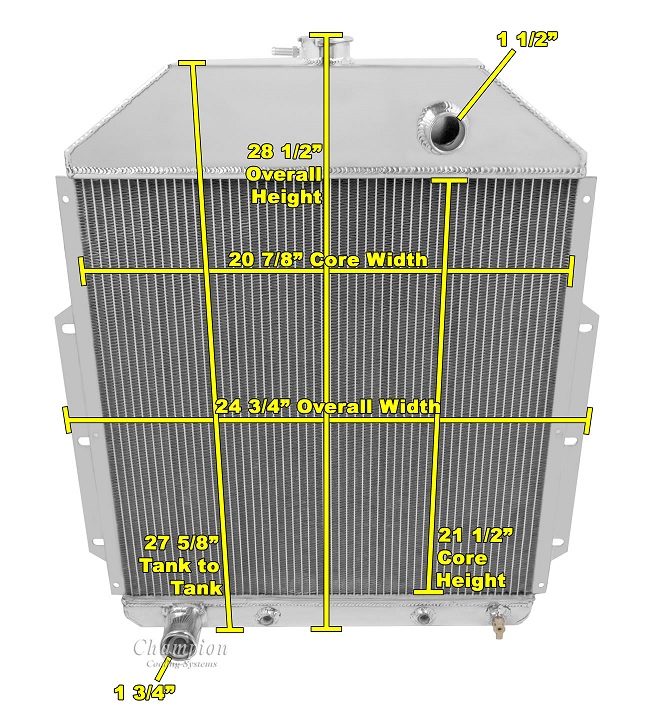

Radiator Dimensions:
Total: 28.5" tall (with cap) x 25" wide (including brackets)
Core: 21.5" tall x 20.88" wide x 1.75" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 2.5" thick
Tubes: 0.75" thick

Bracket Mounted

13 lb. Radiator Cap Included
Transmission Cooler Included: 1/8" -27 NPT





Compatible With
Ford Truck 1942-1952 (Ford Engines)
CC4252FD-4252FS16

CC4252FD-4252FS16

CC4252FD-4252FS16
Click to enlarge image(s)
Champion All Aluminum Radiator
Plus Ledfoot Racing Aluminum Shroud & 16" Fan
Verify clearance for electric fan
Total thickness: 7.25" to fan motor

3-Row Core | Cools up to 650hp

Radiator Dimensions:
Total: 28.5" tall (with cap) x 25" wide (including brackets)
Core: 21.5" tall x 20.88" wide x 2" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 2.5" thick
Tubes: 0.63" thick

E-Bracket Mounted
From mounting bracket to
engine face of core is 1.38" thick


13 lb. Radiator Cap Included
Transmission Cooler Included: 1/8" -27 NPT





Compatible With
Ford Truck 1942-1952 (Ford Engines)
MC4252FD-4252FS16

MC4252FD-4252FS16

MC4252FD-4252FS16
Click to enlarge image(s)
Champion All Aluminum Radiator
Plus Ledfoot Racing Aluminum Shroud & 16" Fan
Verify clearance for electric fan
Total thickness: 7.75" to fan motor

4-Row Core | Cools up to 650hp

Radiator Dimensions:
Total: 28.5" tall (with cap) x 25" wide (including brackets)
Core: 21.5" tall x 20.88" wide x 2.75" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 2.5" thick
Tubes: 0.63" thick

E-Bracket Mounted
From mounting bracket to
engine face of core is 1.38" thick


13 lb. Radiator Cap Included
Transmission Cooler Included: (1/8" -27 NPT)





Compatible With
Ford Truck 1942-1952 (Ford Engines)
