F-Series Truck Radiators (57-60)
Scroll for additional options

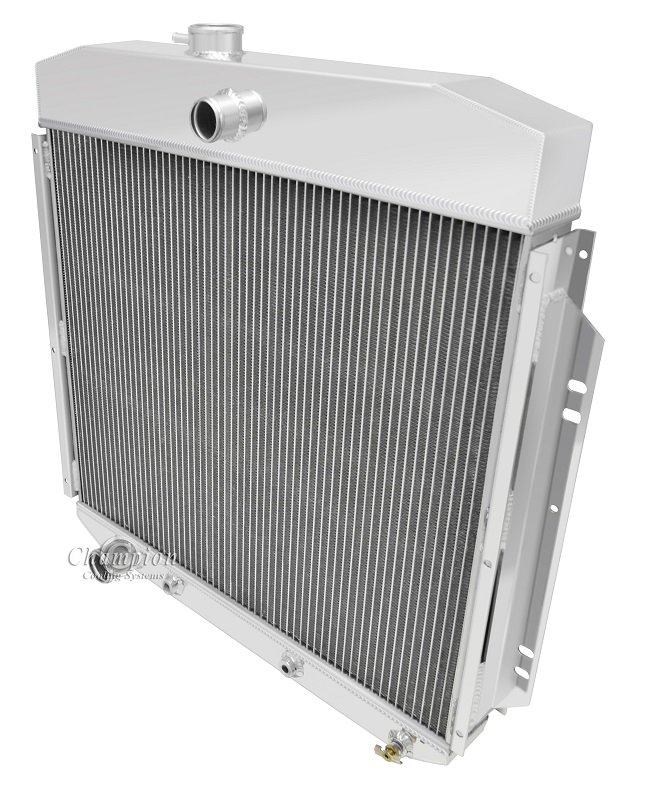

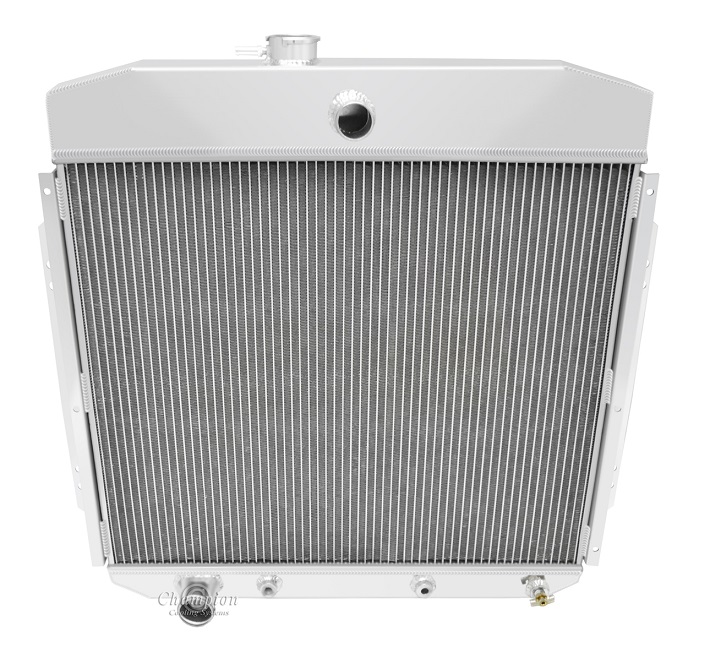

CC5760FD

CC5760FD

CC5760FD
Click to enlarge image(s)

All Aluminum Champion Radiator
Please verify your outlet Position
3-Row Core | Cools up to 650hp

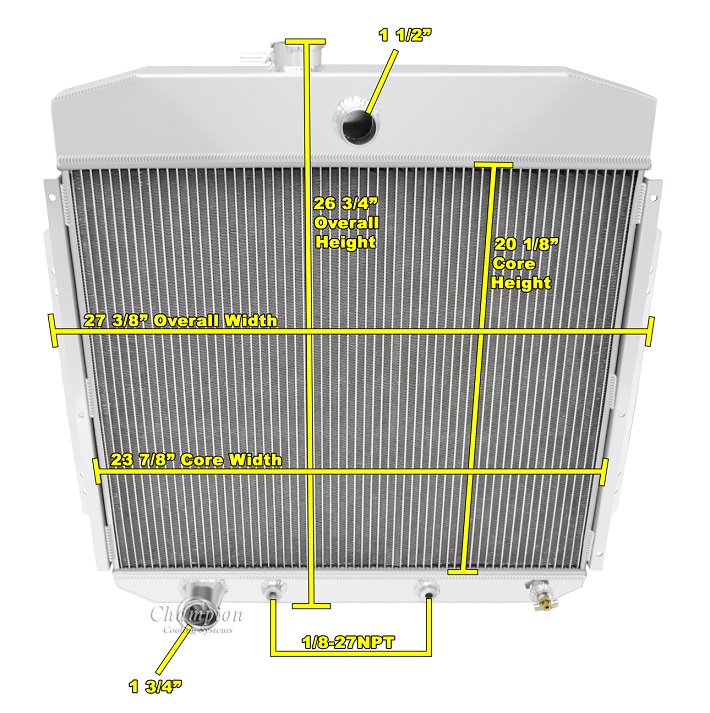

Radiator Dimensions:
Total: 26.25" tall (with cap) x 27.50" wide
Core: 20" tall x 23" wide x 2" thick
Inlet: 1.5" center
Outlet: 1.75" drivers side
Tanks: 2.75" thick
Bracket Specs: Vert - 18 1/2" Hor - 24 7/8"
Tubes: 0.63" thick

Bracket Mounted

Transmission Cooler Included (1/8-27 NPT)
13 lb. Radiator Cap included
Aluminum shroud is also available (sold separately)

When using electric fans:
One 16" Electric fans recommended for this core size (sold separately)



Compatible With
Ford Truck 1957-1960 (V6 or V8 but does NOT work on Flat Head application)

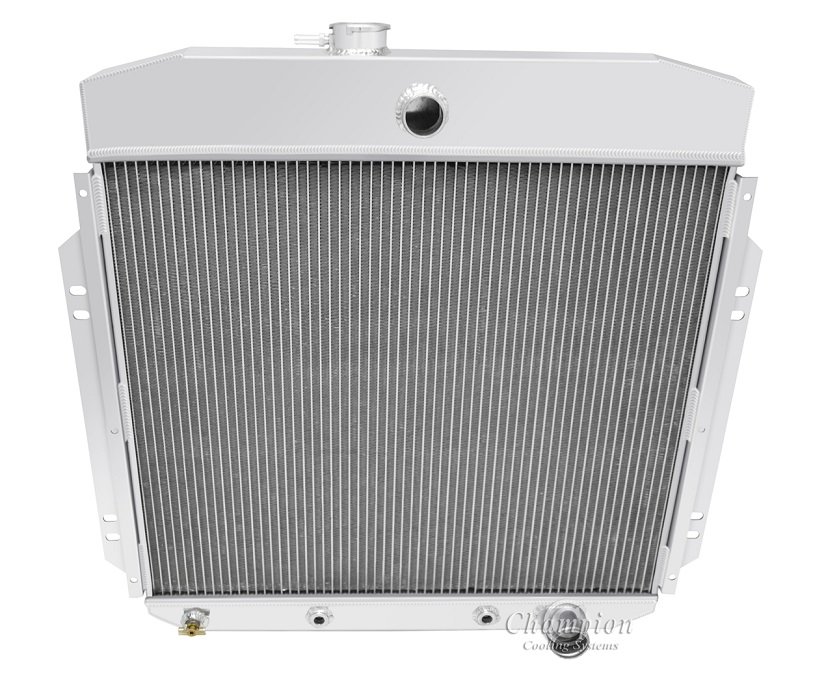

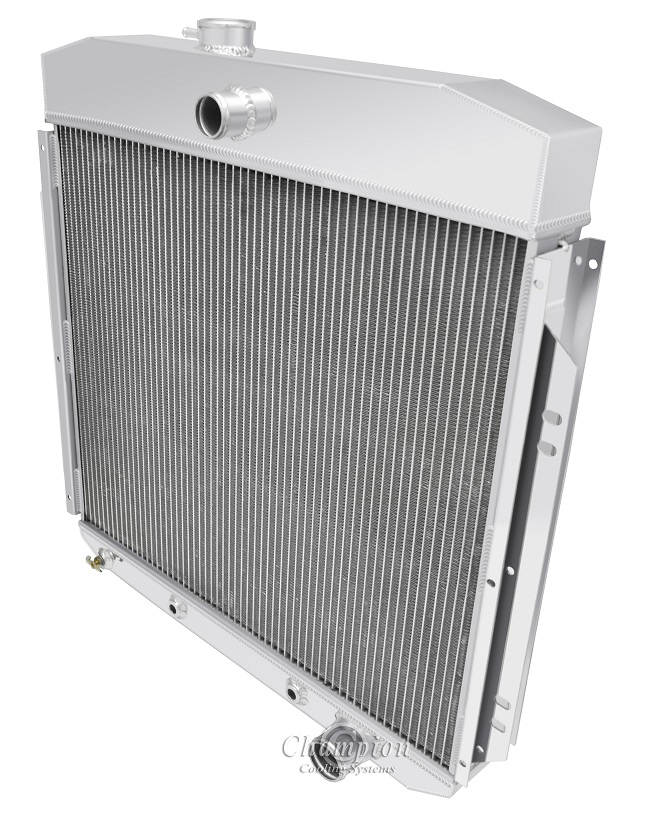

CC5760CH

CC5760CH

CC5760CH
Click to enlarge image(s)

Fits Chevy V8's / Ford 6 cyl
All Aluminum Champion Radiator

3-Row Core | Cools up to 650hp

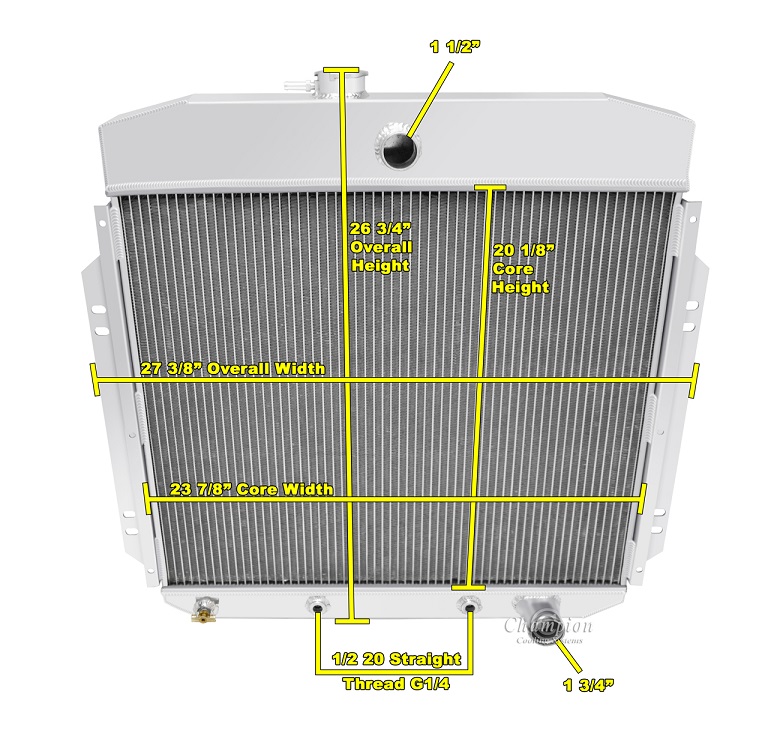

Radiator Dimensions:
Total: 26.25" tall (with cap) x 27.50" wide
Core: 20" tall x 23" wide x 2" thick
Inlet: 1.5" center
Outlet: 1.75" passenger side
Tanks: 2.75" thick
Bracket Specs: Vert - 18 1/2" Hor - 24 7/8"
Tubes: 0.63" thick

Bracket Mounted

Transmission Cooler Included (1/2"-20 Straight Thread, Inverted Flare)
13 lb. Radiator Cap included
Aluminum shroud is also available (sold separately)

When using electric fans:
One 16" Electric fans recommended for this core size (sold separately)



Compatible With
Ford Truck 1953-1956 (Chevy V8, Ford L6 but does NOT work on Flat Head application)
MC5760CH

MC5760CH

MC5760CH
Click to enlarge image(s)

Fits Chevy V8's/Ford 6cyl Supports
All Aluminum Champion Radiator

4-Row Core | Cools up to 650hp

Radiator Dimensions:
Total: 26.25" tall (with cap) x 27.50" wide
Core: 20" tall x 23" wide x 2.75" thick
Inlet: 1.5" center
Outlet: 1.75" passenger side
Tanks: 2.75" thick
Bracket Specs: Vert - 18 1/2" Hor - 24 7/8"
Tubes: 0.63" thick

Bracket Mounted

Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare)
13 lb. Radiator Cap Included
Aluminum shroud is also available (sold separately)


When using electric fans:
One 16" Electric fans recommended for this core size (sold separately)



Compatible With
Ford Truck 1953-1956 (V6 or V8 but does NOT work on Flat Head application)
MC5760FD

MC5760FD

MC5760FD
Click to enlarge image(s)

All Aluminum Champion Radiator
Please verify your outlet Position
4-Row Core | Cools up to 750hp

Radiator Dimensions:
Total: 26.25" tall (with cap) x 27.50" wide
Core: 20" tall x 23" wide x 2.75" thick
Inlet: 1.5" center
Outlet: 1.75" drivers side
Tanks: 2.75" thick
Bracket Specs: Vert - 18 1/2" Hor - 24 7/8"
Tubes: 0.63" thick

Bracket Mounted

Transmission Cooler Included (1/8-27 NPT)
13 lb. Radiator Cap Included
Aluminum shroud is also available (sold separately)

When using electric fans:
One 16" Electric fans recommended for this core size (sold separately)



Compatible With
Ford Truck 1957-1960 (V6 or V8 but does NOT work on Flat Head application)
