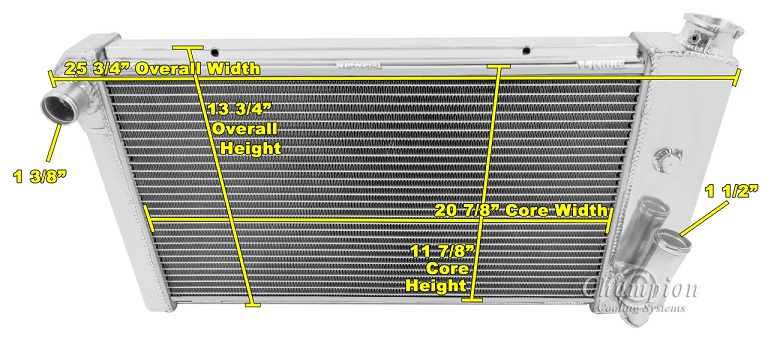

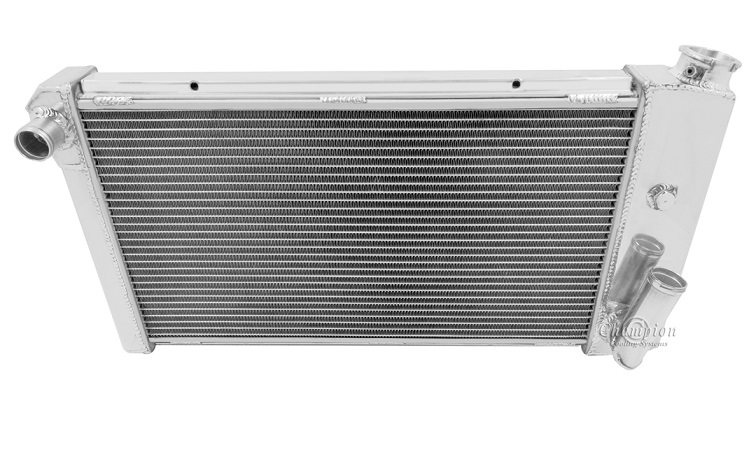

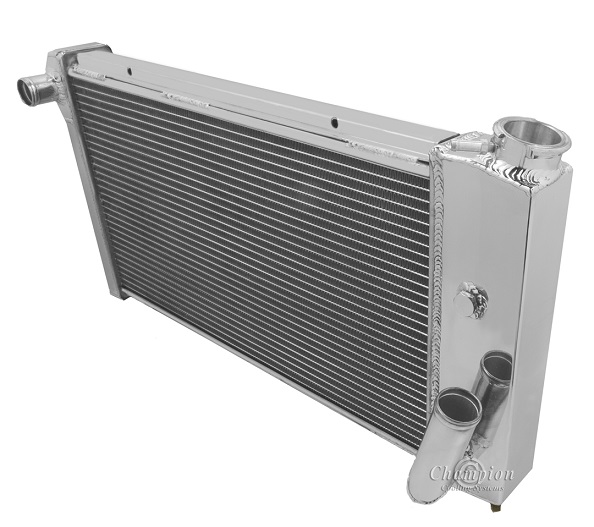

Chevy Vega Champion radiator (71-77)

CC432

CC432

CC432
Click to enlarge image(s)
Champion All Aluminum Radiator
3-Row Core | Cools up to 400hp

Radiator Dimensions:
Total: 15" tall x 26.75" wide
Core: 12" tall x 20.75" wide x 2" thick
Inlet: 1.25" driver side
Outlet: 1.5" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

Saddle Mounted

Radiator Cap Included
Transmission Cooler Not included


Compatible With
Chevrolet Vega 1971-1977
Pontiac Astre 1975-1976

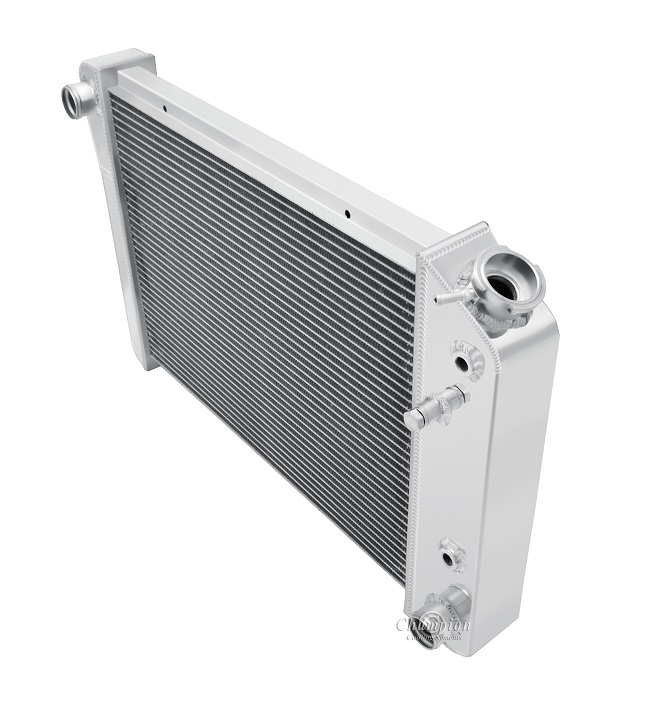

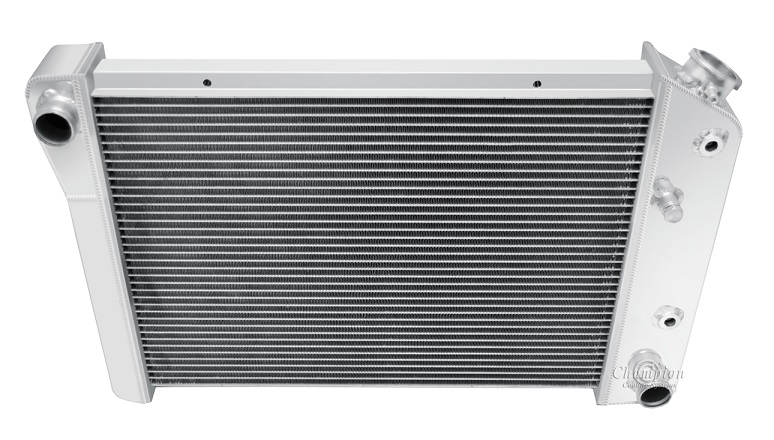

Chevy Vega V8 Conversion Champion radiator (71-77)

CC469

CC469

CC469
Click to enlarge image(s)
Champion All Aluminum Radiator
3-Row Core | Cools up to 550hp
Same size as 75-77 with different outlets
Radiator Dimensions:
Total: 17.375" tall x 26.13" wide
Core: 14.5" tall x 20.375" wide x 2" thick
Inlet: 1.5" driver side
Outlet: 1.5" passenger side
Tanks: 2.75" thick
Tubes: 0.63" thick

Saddle Mounted

Radiator Cap Included
Transmission Cooler Included (1/2"- 20 STRAIGHT THREAD)

When using electric fans:
One 14" Electric fan recommended for this core size (sold separately)


Compatible With
1978 - 1980 Chevrolet Monza (2.5L L4, 3.2L V6, 3.8L V6)
1978 - 1980 Chevrolet Monza (5.0L V8) *For V8 Vega Swap. To use on Monza, power steering must be relocated.
