CC340B

CC340B

CC340B
Click to enlarge image(s)

Champion All Aluminum Radiator
3-Row Core | Cools up to 550hp

Radiator Dimensions:
Total: 20.75" tall (21.25" with cap) x 22.25" wide (with brackets)
Core: 16.38" tall x 20.25" wide x 2.5" thick
Inlet: 1.5" passenger side
Outlet: 1.75" passenger side
Tanks: 3" thick
Tubes: 0.75" thick

Bracket Mounted

Radiator Cap Included
Transmission Cooler Included (1/8-27NPT)
Aluminum Shroud is also available (sold separately)

When using electric fans:
One 16" Electric fan recommended for this core size (sold separately)


Compatible With
Ford Galaxie 1965-1967 (289 Small Block Engines only)
Ford Mustang 1967-1970 (Small Blocks with passenger side outlet)
Ford Fairlane 1963-1969 (6 Cyl and Small Blocks with passenger side outlet)
CC339B

CC339B

CC339B
Click to enlarge image(s)

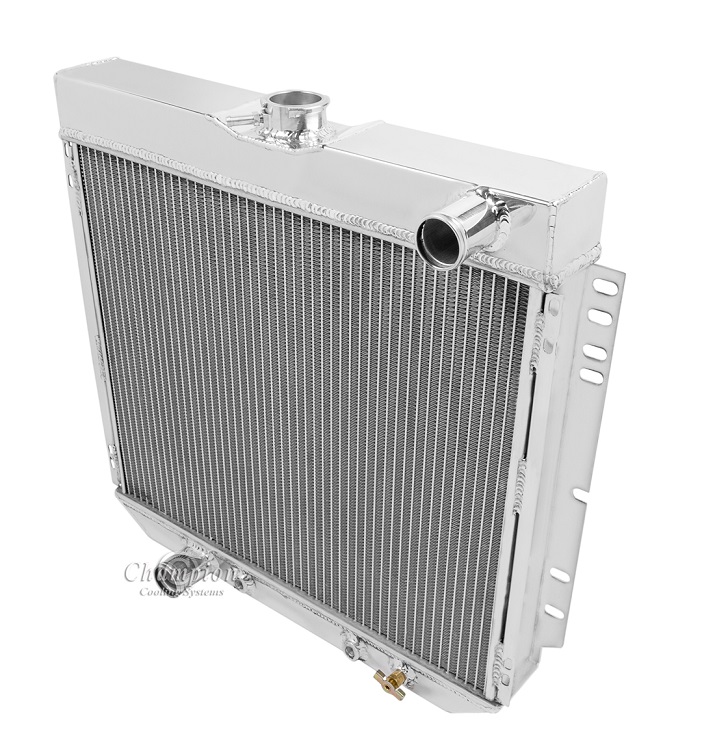

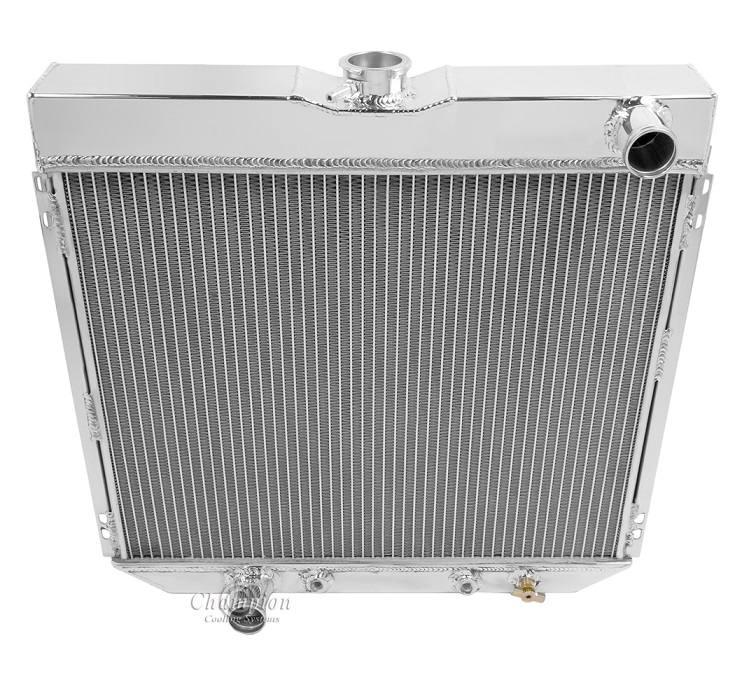

Champion All Aluminum Radiator
3-Row Core | Cools up to 500hp

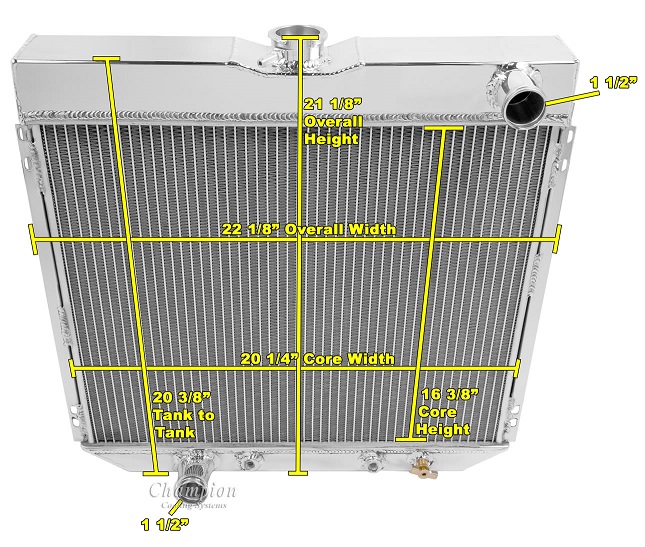

Radiator Dimensions:
Total: 20.5" tall (21.13" with cap) x 22.13" wide (with brackets)
Core: 16.38" tall x 20.25" wide x 2.5" thick
Inlet: 1.5" passenger side
Outlet: 1.5" driver side
Tanks: 3" thick
Tubes: 0.75" thick

Bracket Mounted

Radiator Cap included
Transmission Cooler included (1/8-27NPT)
Aluminum Shroud is also available (sold separately)

When using electric fans:
One 16" Electric fan recommended for this core size (sold separately)



Compatible With
Ford Mustang 1969-1970 (all engines)
Ford Maverick 1970-1977 (all engines)
Ford Falcon 1966-1970 (all engines)
Ford Torino 1968-1969 (all engines)
Ford Fairlane 1963-1969 (all engines)
Mercury Comet 1966-1968 (all engines)
Mercury Comet 1971-1973 (all engines)
Mercury Cougar/XR7 1970 (all engines)
