(77-79) Oldsmobile Custom Cruiser Champion Radiator
This is the 30.5" wide core, refer to our 161 series if you need the 28.25" wide core.
CC232

CC232

CC232
Click to enlarge image(s)

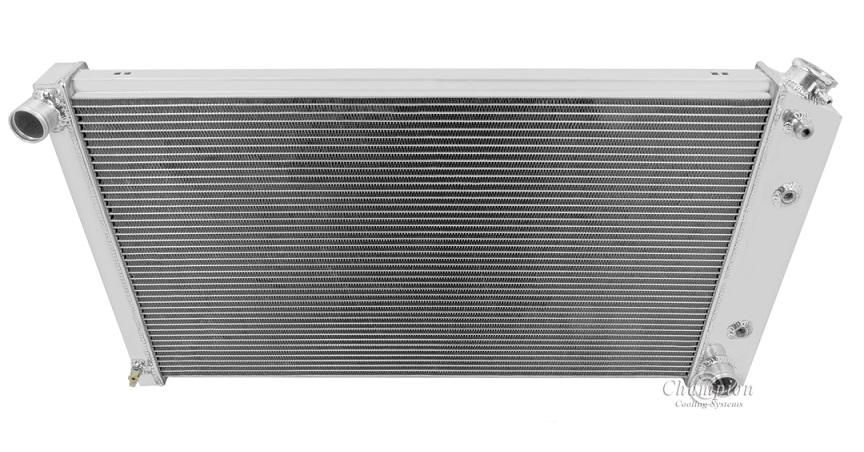

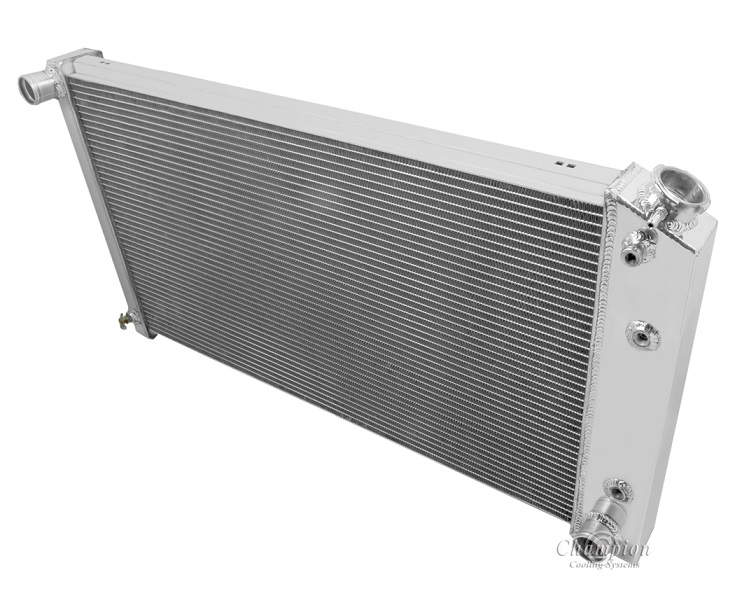

Champion All Aluminum Radiator
3-Row Core | Cools up to 900hp
Note: This version is without an engine
oil cooler, only a transmission cooler


Radiator Dimensions:
Total: 18.5" tall (19" with cap) x 35.25" wide
Core: 17" tall x 30.5" wide x 2" thick x 2" thick
Inlet: 1.5" driver side
Outlet: 1.5" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

Saddle Mounted

Radiator Cap included
Transmission Cooler included (1/2-20 Straight Thread, Inverted Flare)
Heater hose connection included

When using electric fans:
Two 14" Electric fans recommended for this core size (sold separately)



Compatible With
Buick Electra 1979
Buick Estate Wagon 1977-1979
Buick LeSabre 1977-1979
Buick Riviera 1977-1978
Cadillac Commerical Chassis (Limousine/Hearse) 1982-1984
Cadillac Deville 1977-1982
Cadillac Fleetwood/Brougham 1977-1992
Pontiac Bonneville 1977-1979
Pontiac Catalina 1977-1979
Pontiac Safari Station Wagon 1977
Oldsmobile Custom Cruiser 1977-1979
Oldsmobile 88/Royal 1977-1979
Oldsmobile "98" 1977-1979
