19.25" Tall x 29.75" Wide Overall
If you need outlets other than shown below please call in your order
AN fittings ($35 each) are also available upon request


Click to enlarge image(s)

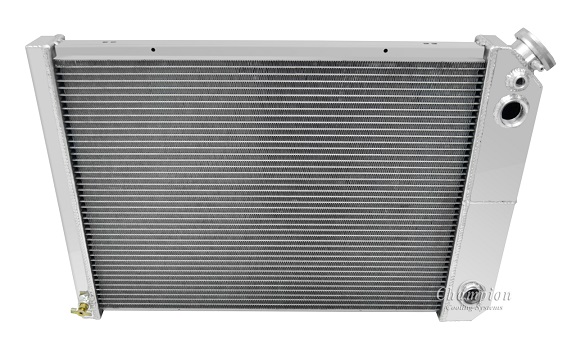

Champion All Aluminum Radiator
Dual Pass / LS Conversions
You MUST Choose your billet outlets in "Popular Add-Ons"

16-& 20 AN available upon request just call
3-Row Core | Cools up to 750hp

Radiator Dimensions
Total: 18.25" tall (18.75" with cap) x 29" wide x 2.5" deep
Core: 17" tall x 23" wide x 2" thick
Inlet: (Choice your size below) passenger side
Outlet: (Choice your size below) passenger side
Tanks: 2.5" thick
Tubes:  0.63" thick

Saddle Mounted

16 lb. Billet Radiator Cap included
Steam Port with 1/4" barbed fitting and plug included

When using electric fans (sold separately):
One 16" (preferred) Electric fan recommended for this core size

Compatible with:
Olds Omega - 1973-74
Buick Apollo - 1973-74
Pontiac Ventura - 1973-74
Chevy Nova - 1973-74
Olds 98 - 1973
