Lemans (61-63)
Confirm Outlets


CC6163

CC6163

CC6163
Click to enlarge image(s)

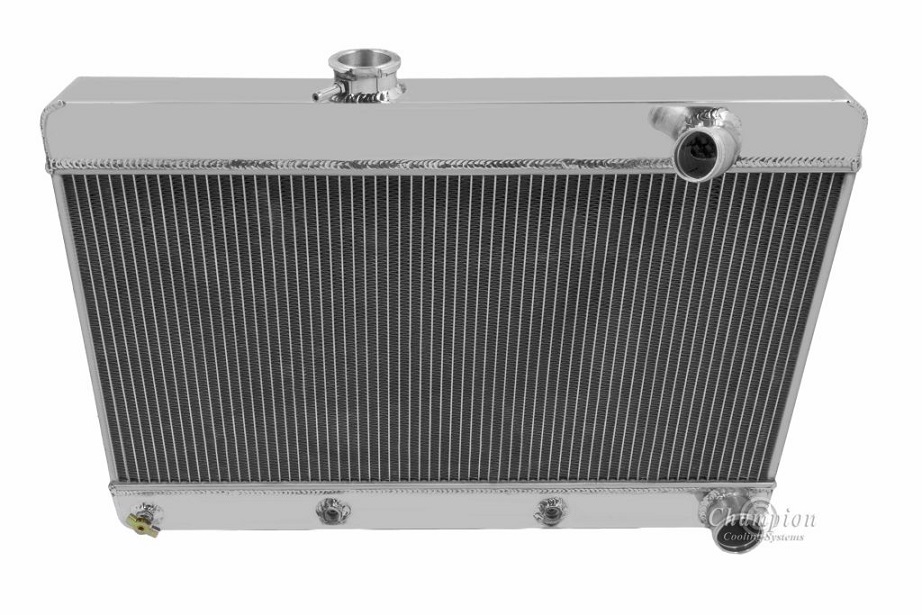

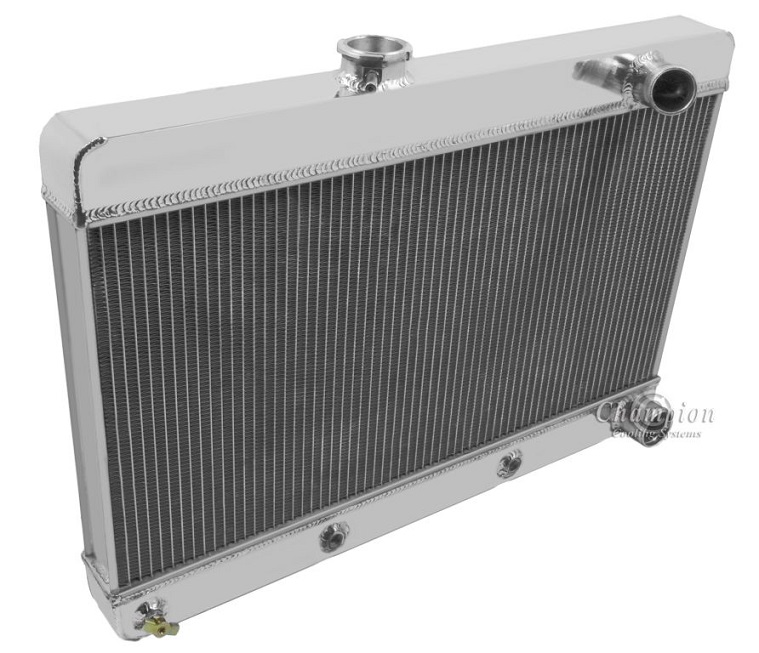

Champion All Aluminum Radiator
3-Row Core | Cools up to 400hp

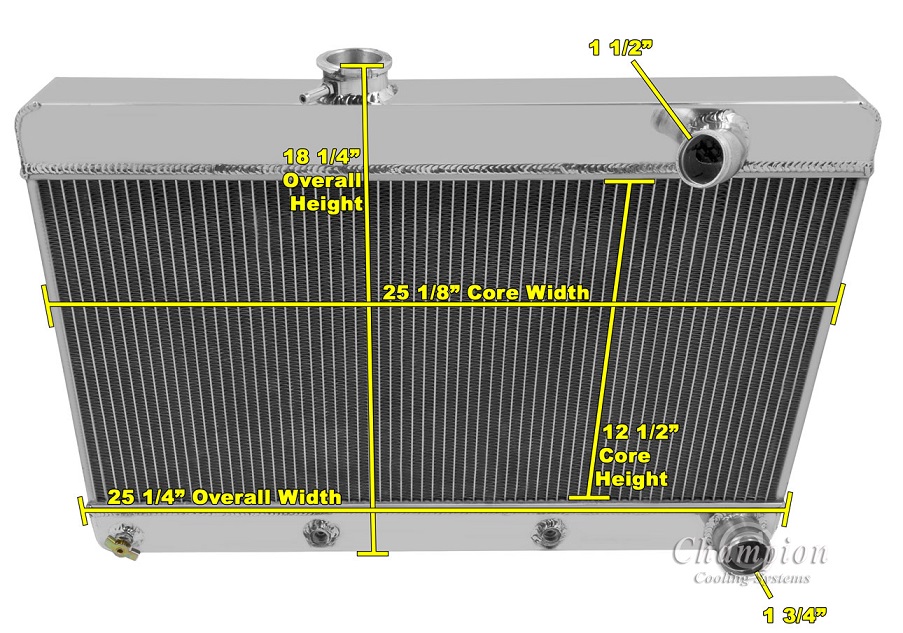

Radiator Dimensions:
Total: 18.25" tall (with cap) x 25.25" wide
Core: 12.5" tall x 25" wide x 2" thick
Inlet: 1.5" passenger side w/ bend towards driver side
Outlet: 1.75" passenger side
Tanks: 2.63" thick
Tubes: 0.63" thick

Saddle Mounted

13 lb. Radiator Cap included
Transmission Cooler included

When using electric fans:
Two 12" Electric fans recommended for this core size (sold separately)



Compatible With
Pontiac Tempest 1961-1963
Pontiac GTO 1961-1963
Pontiac LeMans 1961-1963
CC63

CC63

CC63
Click to enlarge image(s)

Confirm Outlet Positions

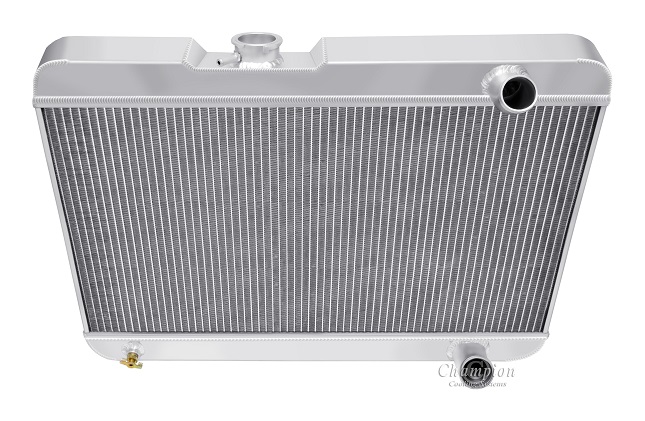

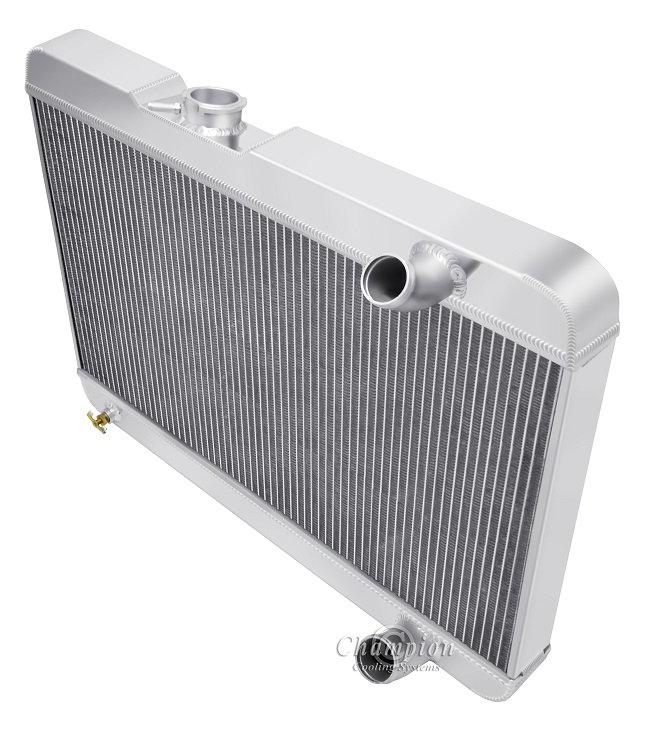

Champion All Aluminum Radiator

3-Row Core | Cools up to 500hp


Radiator Dimensions:
Total: 19.25" (with cap) x 25.38" wide
Core: 14.13" tall x 25.13" wide x 2" thick
Inlet: 1.5" passenger side
Outlet: 1.75" passenger side
Tanks:  2.38" thick
Tubes: 0.63" thick

Saddle Mounted

16 lb. Radiator Cap Included
Transmission Cooler Included (1/2"-20 Straight Thread)

When using electric fans:
Two 12" Electric fans  recommended for this core size (sold separately)



Compatible With
Pontiac Tempest 1963
Pontiac Lemans 1963
