Chevy Truck Radiator & Shroud (60-62)

Scroll down for additional options
EC6062-6062FS16

EC6062-6062FS16

EC6062-6062FS16
Click to enlarge image(s)

Confirm Width and Saddle or Bracket Mounted See EC6066 if Saddle Mounted

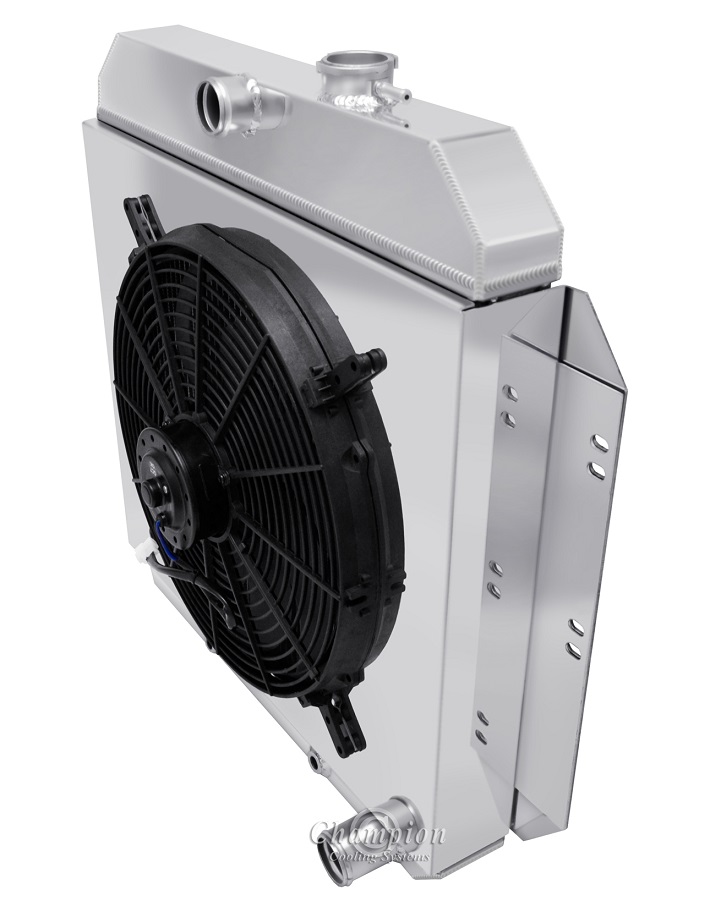

Champion All Aluminum Radiator
Plus Ledfoot Racing Shroud and 16" fan
Verify clearance for electric fan
Total thickness: 6.5" to fan motor
2-Row Core | Cools 450hp

EC6062 Radiator Dimensions:
Total: 25" tall (with cap) x 26.63" (including brackets)
Core: 18.88" tall x 21.75" wide x 1.75" thick
Inlet: 1.5" center
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 0.75" thick

13lb. Radiator Cap included
Transmission Cooler Included (1/2"-20 straight thread)



CC6062-6062FS16

CC6062-6062FS16

CC6062-6062FS16
Click to enlarge image(s)

Confirm Width and Saddle or Bracket Mounted See EC6066 if Saddle Mounted
Champion All Aluminum Radiator
Plus Ledfoot Racing Aluminum Shroud & 16" fan
Verify clearance for electric fan
Total thickness: 7 3/8" to fan motor

3-Row Core | Cools 650hp

Radiator Dimensions:
Total: 25" tall (with cap) x 26.63" wide (including brackets)
Core: 18.88" tall x 21.75" wide x 2." thick
Inlet: 1.5" center
Outlet: 1.75" passenger side
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler Included (1/2"-20 straight thread, inverted flare)



MC6062-6062FS16C

MC6062-6062FS16C

MC6062-6062FS16C
Click to enlarge image(s)

Champion All Aluminum Radiator
4-Row Core | Cools up to 700hp
Verify clearance for electric fan
Total thickness: 7.75" to fan motor


Radiators Dimensions:
Total: 25” tall (with cap) x 26.6" wide (including brackets)
Core: 18.88" tall x 21.75" wide x 2.75" thick
Inlet: 1.5" center
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap Included
Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare)



Compatible With
Chevrolet Truck 1960-1962
