CC2829FH

CC2829FH

CC2829FH
Click to enlarge image(s)

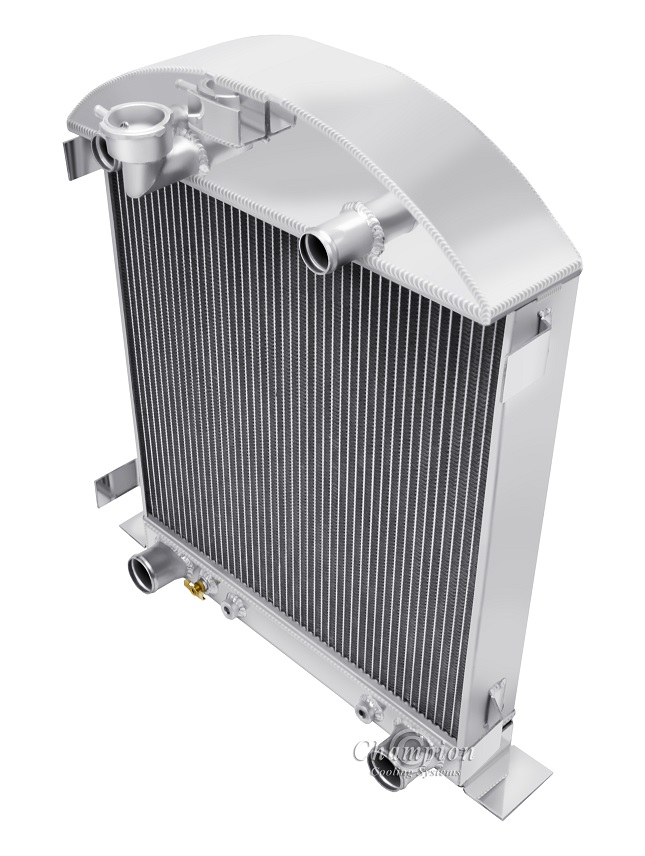

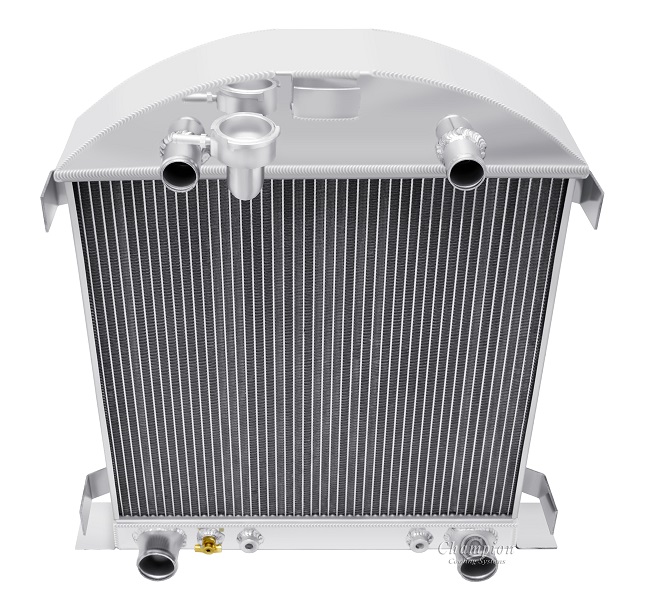

All Aluminum Champion Radiator
Flathead outlet set up
3 Row Core | Cools up to 800hp

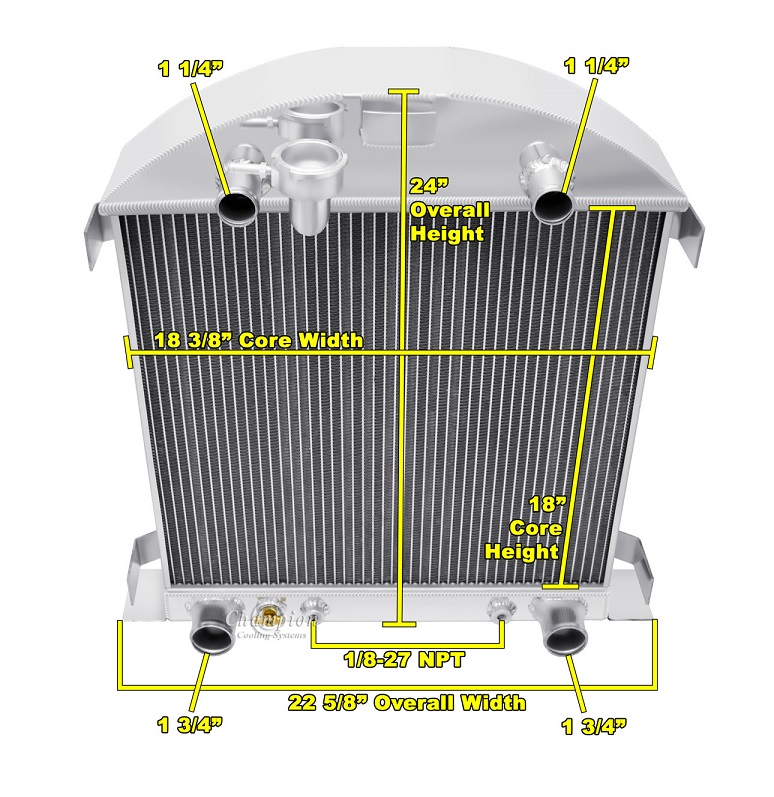

Radiator Dimensions:
Total: 23.75" tall x 22.5" wide (with bottom brackets)
Core: 18" tall x 18.5" wide x 2.5" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 4.25" thick (top) 3” thick (bottom)
Tubes: 0.63" thick

Bracket Mounted

Radiator Cap Included
Transmission Cooler Included (1/8" 27NPT)

When using electric fans:
One 16" fan recommended for this core size


Compatible With
Ford Model A 1928-1929 (Flathead Configuration)
