Bel Air (55-57)
This is the V8 Mount Radiator, installs on the engine side of the core support. We carry the 6 cyl Mount radiator in a Champion 3-Row version only.
AE5057

AE5057

AE5057
Click to enlarge image(s)
American Eagle All Aluminum Radiator
2-Row Core, 1" Tubes | Cools up to 600hp

Radiator Dimensions:
Total: 23" tall (24.5" with cap) x 23.5" wide (with brackets)
Core: 17.25" tall x 21.5" wide x 2.1" thick
Inlet: 1.5" center
Outlet: 1.75" passenger side
Tanks: 3" thick
Tubes: 1" thick

Direct Fit Replacement
Note: Mounts on the engine side of the core support (V8 mounts)

Transmission Cooler included (1/2"- 20 straight thread)
Radiator Cap included

When using electric fans:
One 16" or two 10" Electric fans recommended for this core size (sold separately)


Compatible With
Chevrolet Belair 1955-1957 (V8 engines)
AE5056

AE5056

AE5056
Click to enlarge image(s)

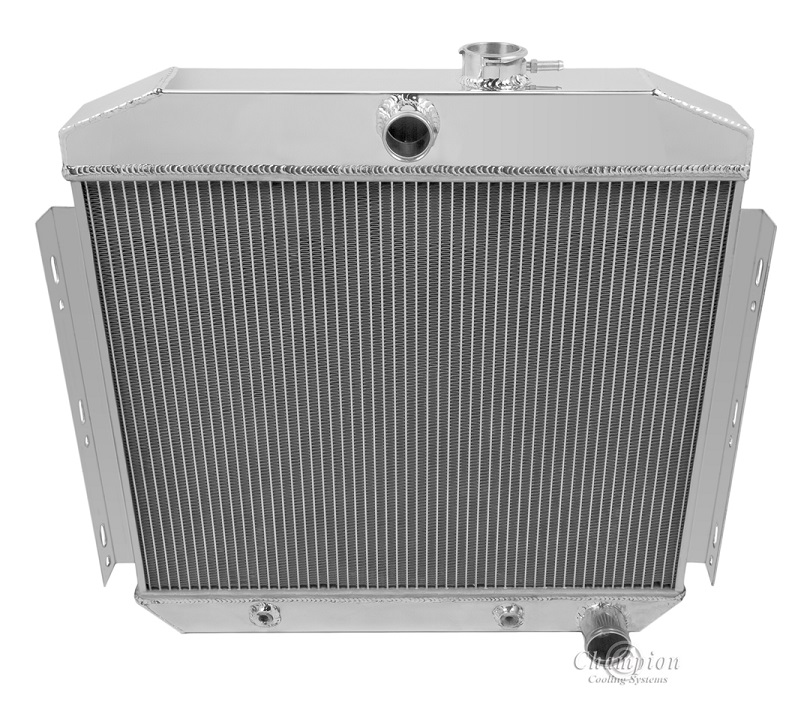

American Eagle All Aluminum Radiator
6 cyl Mounts, attaches to the bumper side of the core support
ONLY FITS 1955-1956 DOES NOT FIT 1957

2-Row Cor 1" Tubes | Cools up to 600hp

AE 5056 Radiator Dimensions:
Total: 23" tall (24.5" with cap) x 23.5" wide (with brackets)
Core: 17.25" tall x 21.5" wide x 2.25" thick
Inlet: 1.5" center
Outlet: 1.75" passenger side
Tanks: 3" thick
Tubes: 1" thick

Bracket Mounted

Radiator Cap Included
Transmission Cooler Included (1/2"- 20 straight thread, inverted flare)
No Petcock

note: 6 Cyl mounts

When using electric fans:
One 16" or two 10" Electric fans recommended for this core size (sold separately)


Compatible With
Chevrolet Bel-Air 1955-1956 (With Straight 6 Engine Mounting) (only fits this model)
